Notes
Removal And Installation: Notes

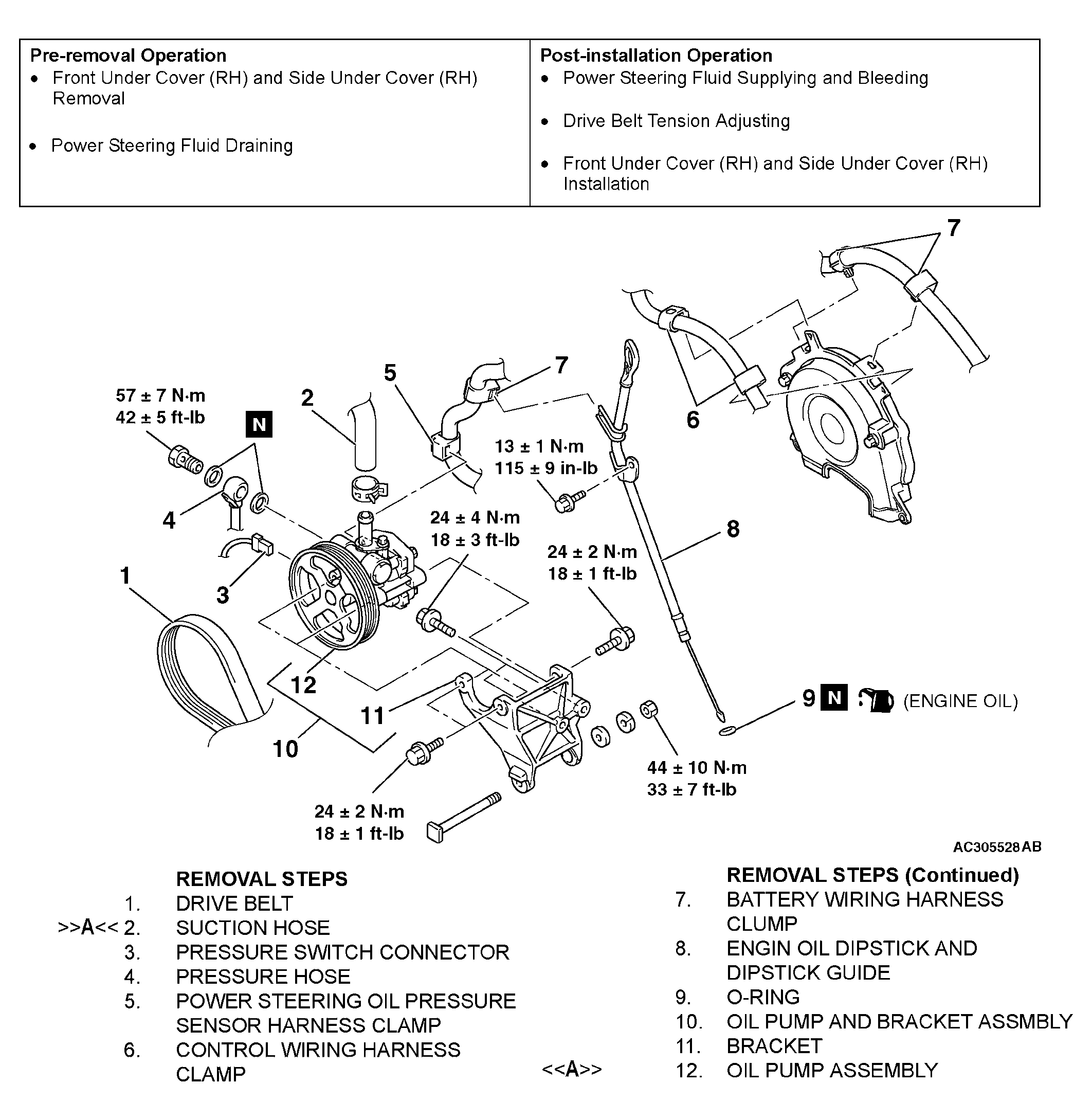

Fig 1: Removal And Installation Of Power Steering Oil Pump Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
