Disassembly And Assembly: Notes

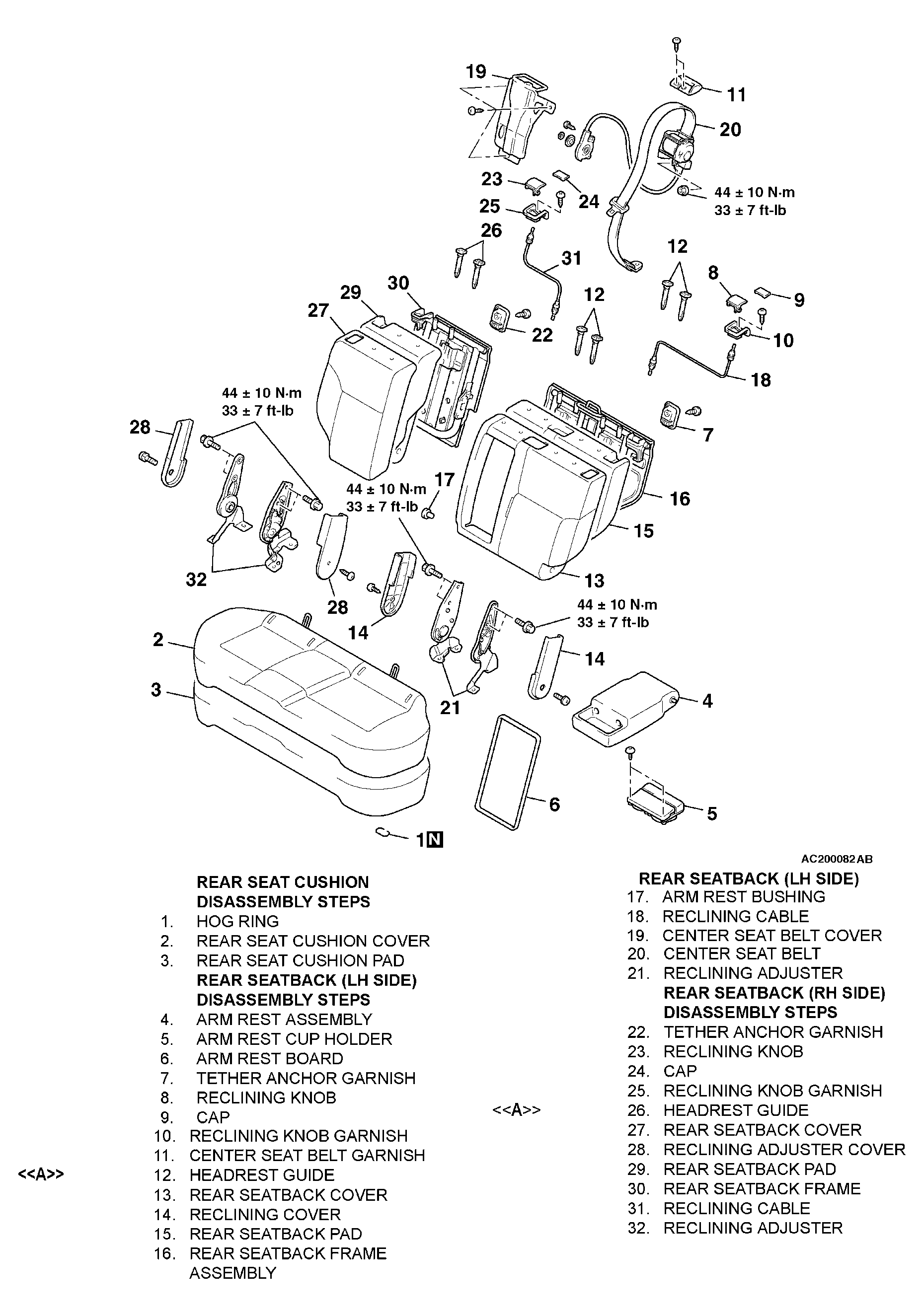

Fig 1: Exploded View Of Rear Seat Cushion Assembly
G04304315Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
