Switch - Mirror: Removal

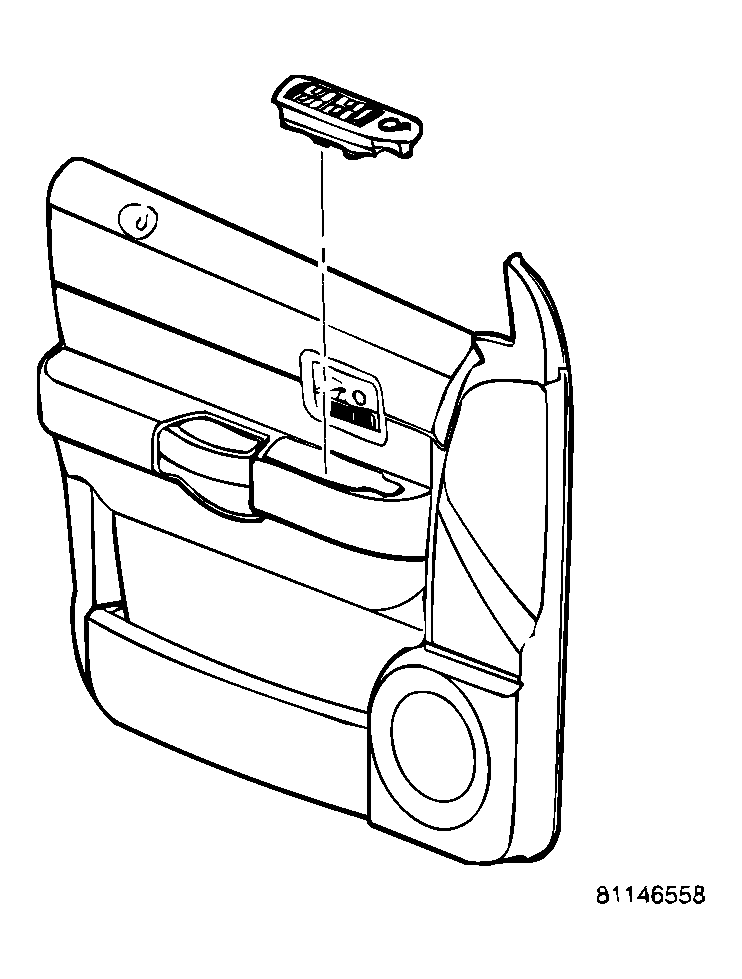

Fig 1: Removing Mirror Switch From Window/Lock Switch Assembly
G04288243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the window/lock switch (Refer to REMOVAL ).
  3. Remove the mirror switch from the window/lock switch assembly by twisting switch.
