Injector - Fuel: Removal

  1. Remove fuel rail. (Refer to FUEL RAIL - REMOVAL ).
  2. Disconnect clip(s) (2) that retain fuel injector(s) to fuel rail (4).

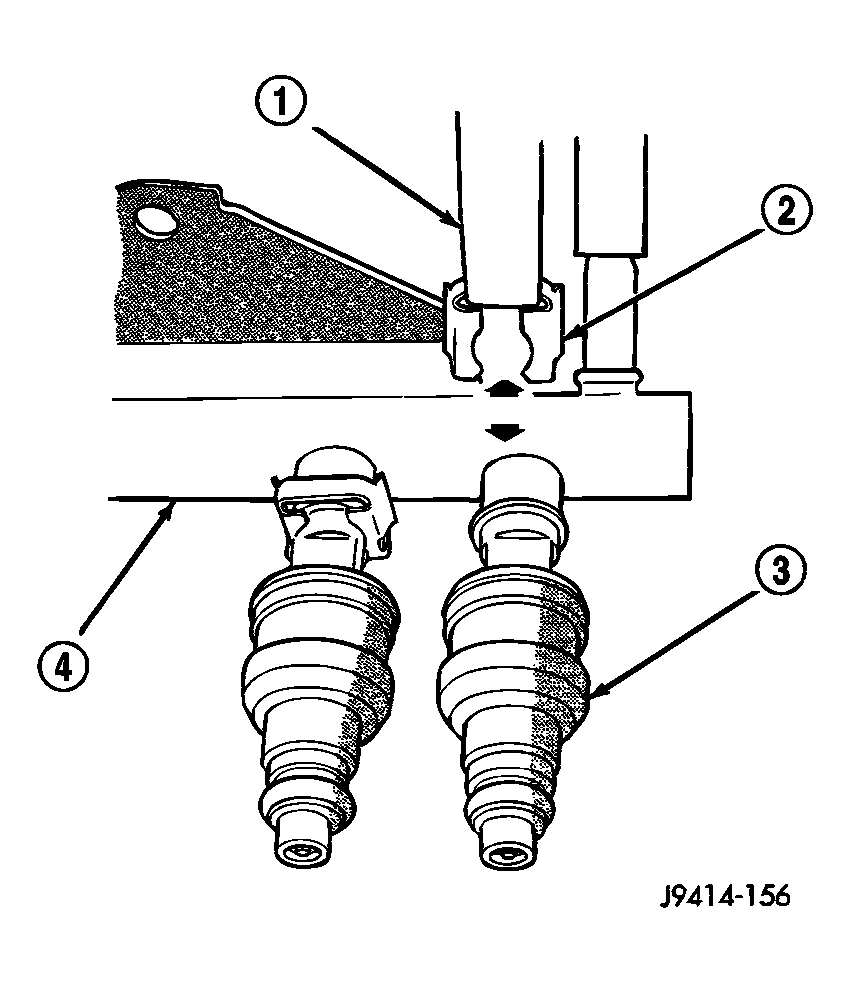

    Fig 1: Removing/Installing Clip And Fuel Injector
    G04283744Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
