Switch - Mirror: Installation

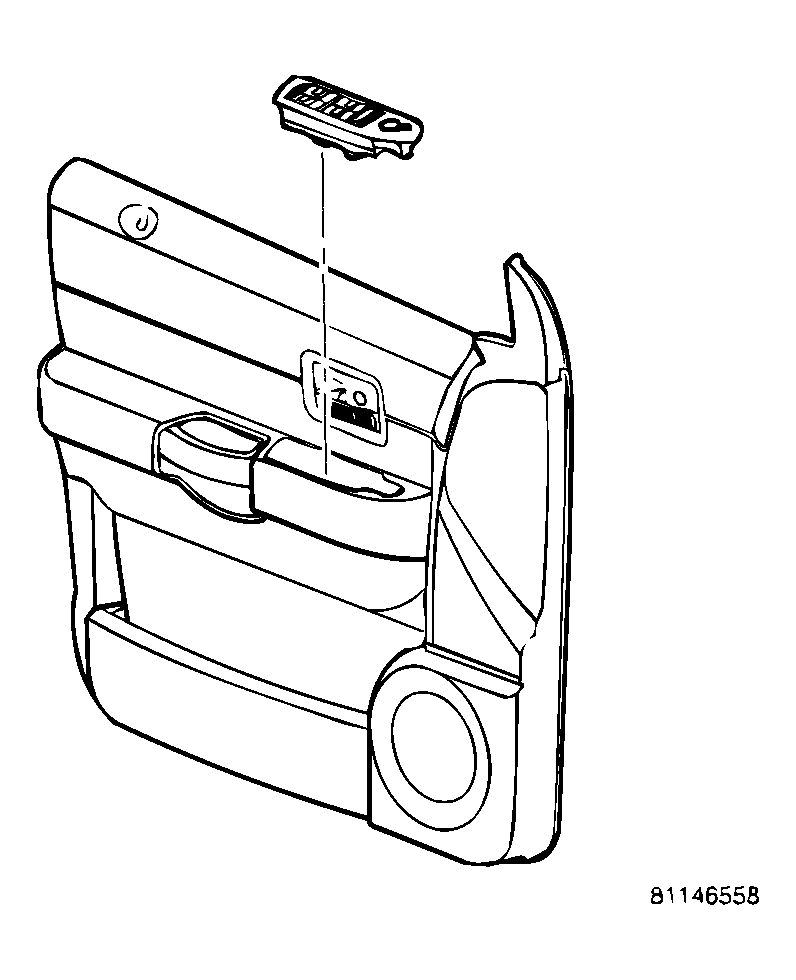

Fig 1: Installing Mirror Switch TO Window/Lock Switch Assembly
G04288244Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Install mirror switch to window/lock switch assembly.
  2. Connect wire harness connectors to switches.
  3. Install window/lock switch assembly (Refer to INSTALLATION ).
  4. Connect battery negative cable.
