Overhead Console - Service Information: Description: Notes

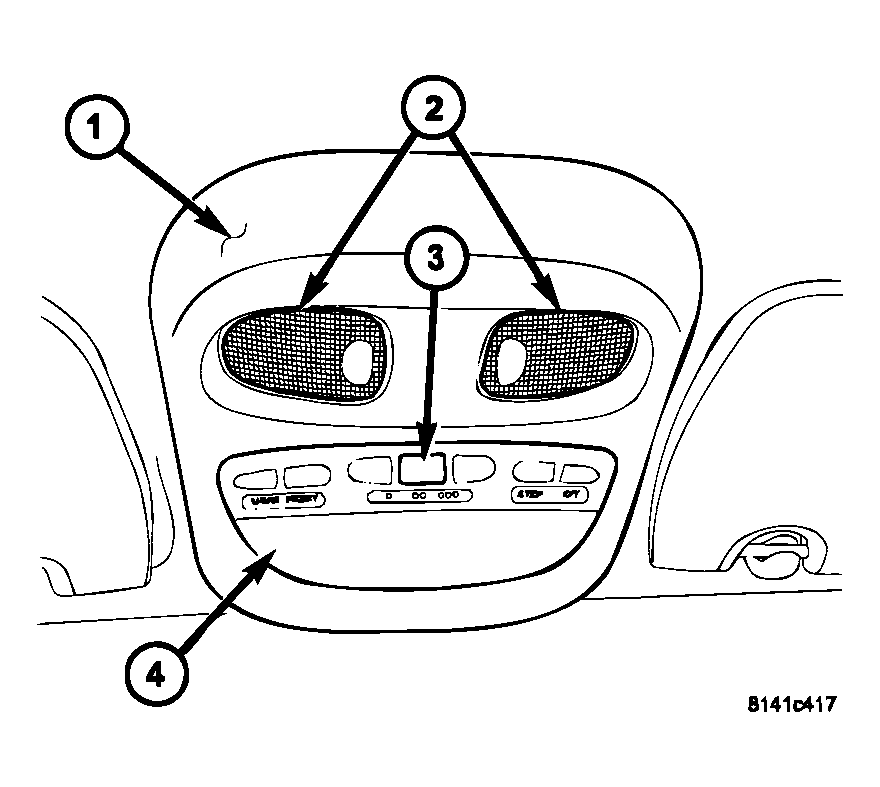

Fig 1: Identifying Overhead Console Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

An overhead console (1) is available on this vehicle and includes the following components:

• Front map/reading lamps (2)
• A blue-green vacuum-fluorescent display screen (4) - if equipped with Compass Mini-Trip Computer
• Universal transmitter (3) - if equipped
• Electronic Overhead Module (EOM)

The overhead console assembly is mounted by two snap clips and screws securing it to a molded plastic retainer bracket located above the headliner. The EOM is accessed by removing the overhead console from the bracket and pulling it away from the headliner.
