DTC U0024: Can B Bus (-) Circuit Open: Notes

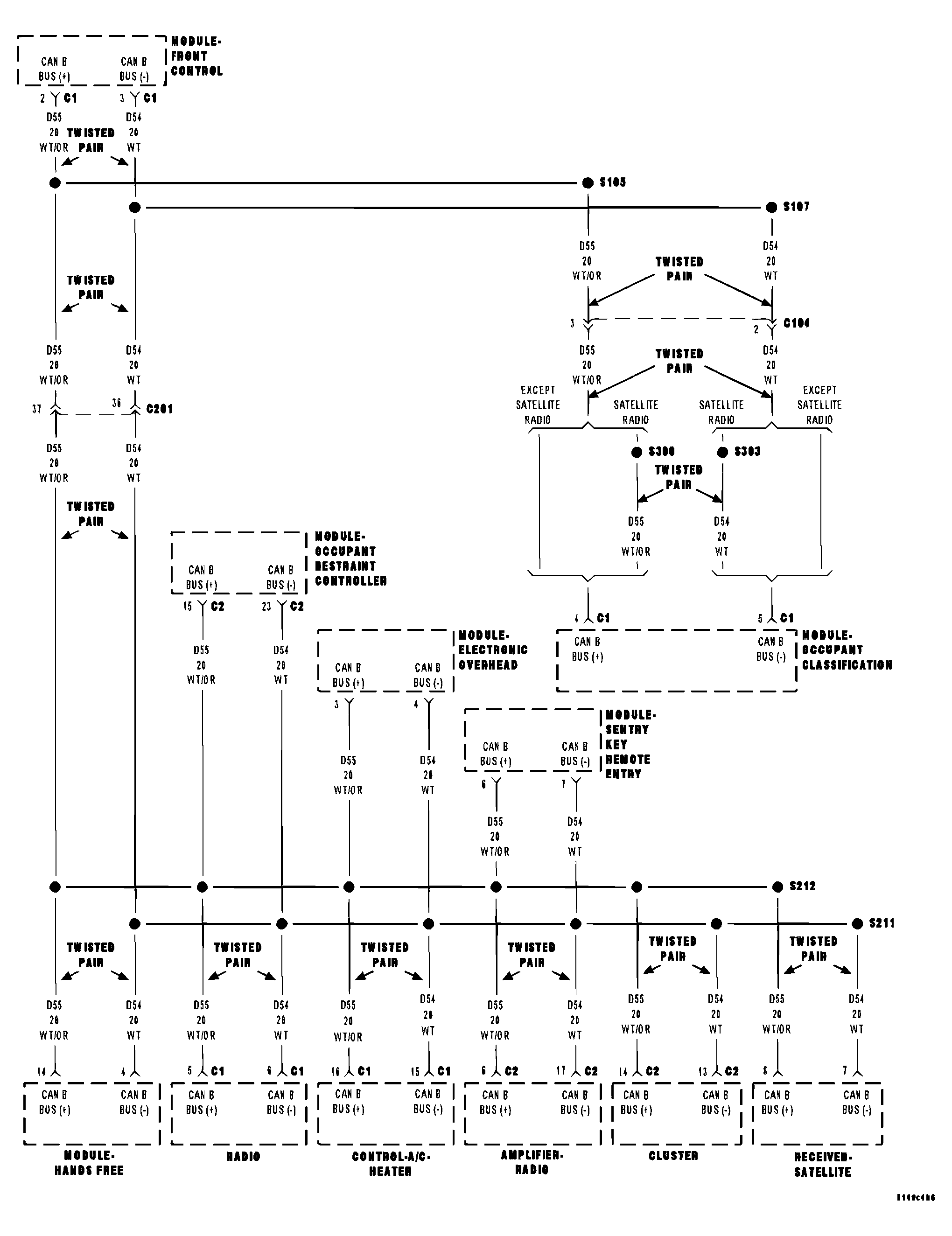

Fig 1: U0024-CAN B BUS (-) Open - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

When Monitored:
With the ignition on and battery voltage between 10 and 16 volts .
Set Condition:
The FCM detects the (D54) CAN B Bus (-) circuit is open .

Possible Causes

CAN B BUS TERMINAL PUSH OUT

SPREAD CAN B BUS TERMINAL

(D54) CAN B BUS (-) CIRCUIT OPEN

INTERNAL OPEN IN A CAN B BUS MODULE
