B2100-Ignition Run/Start Input Circuit Performance: Notes

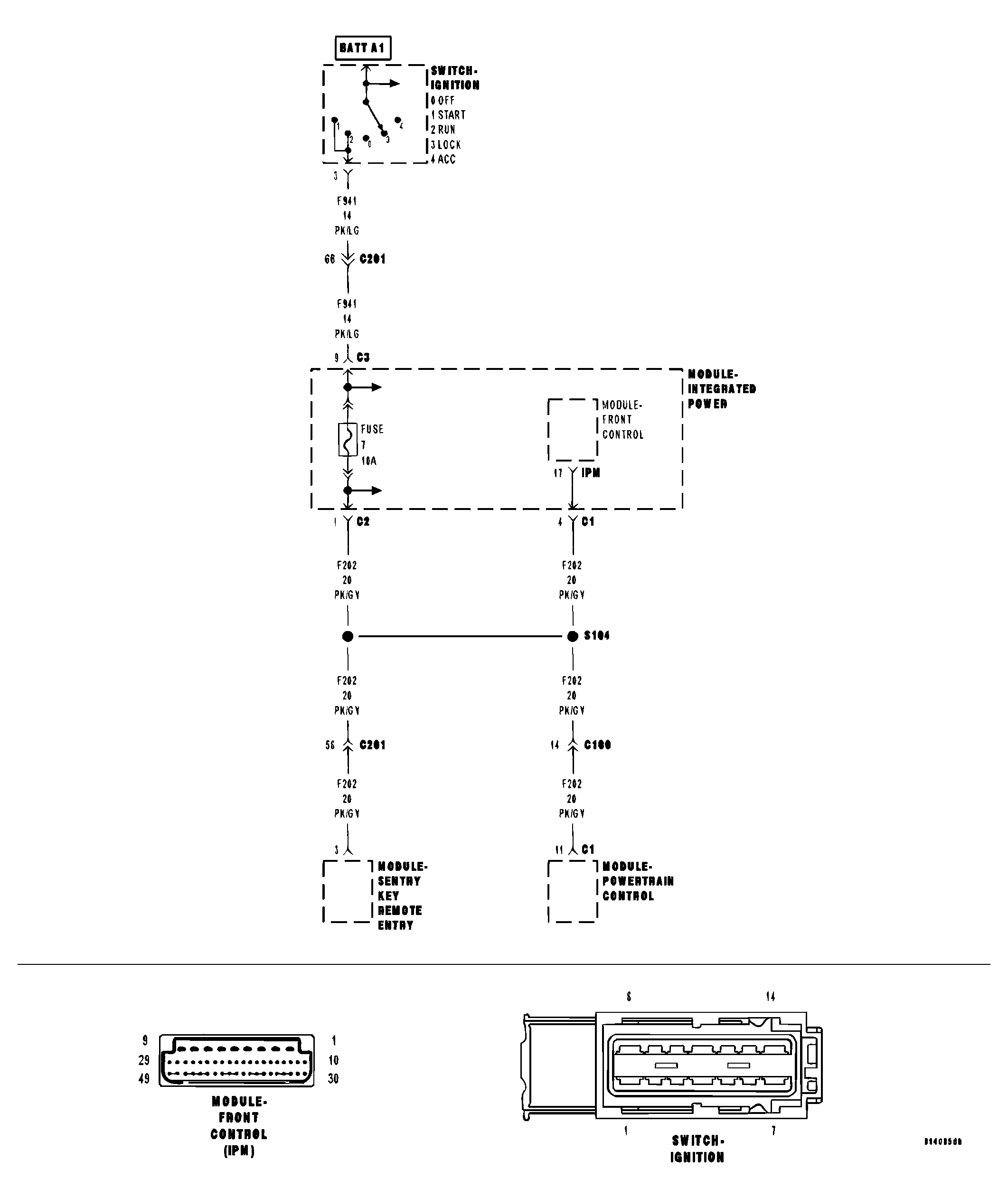

Fig 1: Ignition System - Electrical Diagnostics - Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

When Monitored:
With the ignition on .
Set Condition:
The Front Control Module will set this DTC if the CAN bus message and the hardwired ignition switch circuit do not match the position of the ignition switch .

Possible Causes

INTEGRATED POWER MODULE FUSE

(F941) IGNITION SWITCH OUTPUT CIRCUIT OPEN

(F202) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN

INTEGRATED POWER MODULE

FRONT CONTROL MODULE
