Eclipse GS, Standard
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Traction Control System
›
Traction Control System (TCL) Diagnosis
›
Symptom Procedures
›
Inspection Procedure 2: Abs/TCL-Ecu Power Supply Circuit System
›
Notes
Inspection Procedure 2: Abs/TCL-Ecu Power Supply Circuit System: Notes

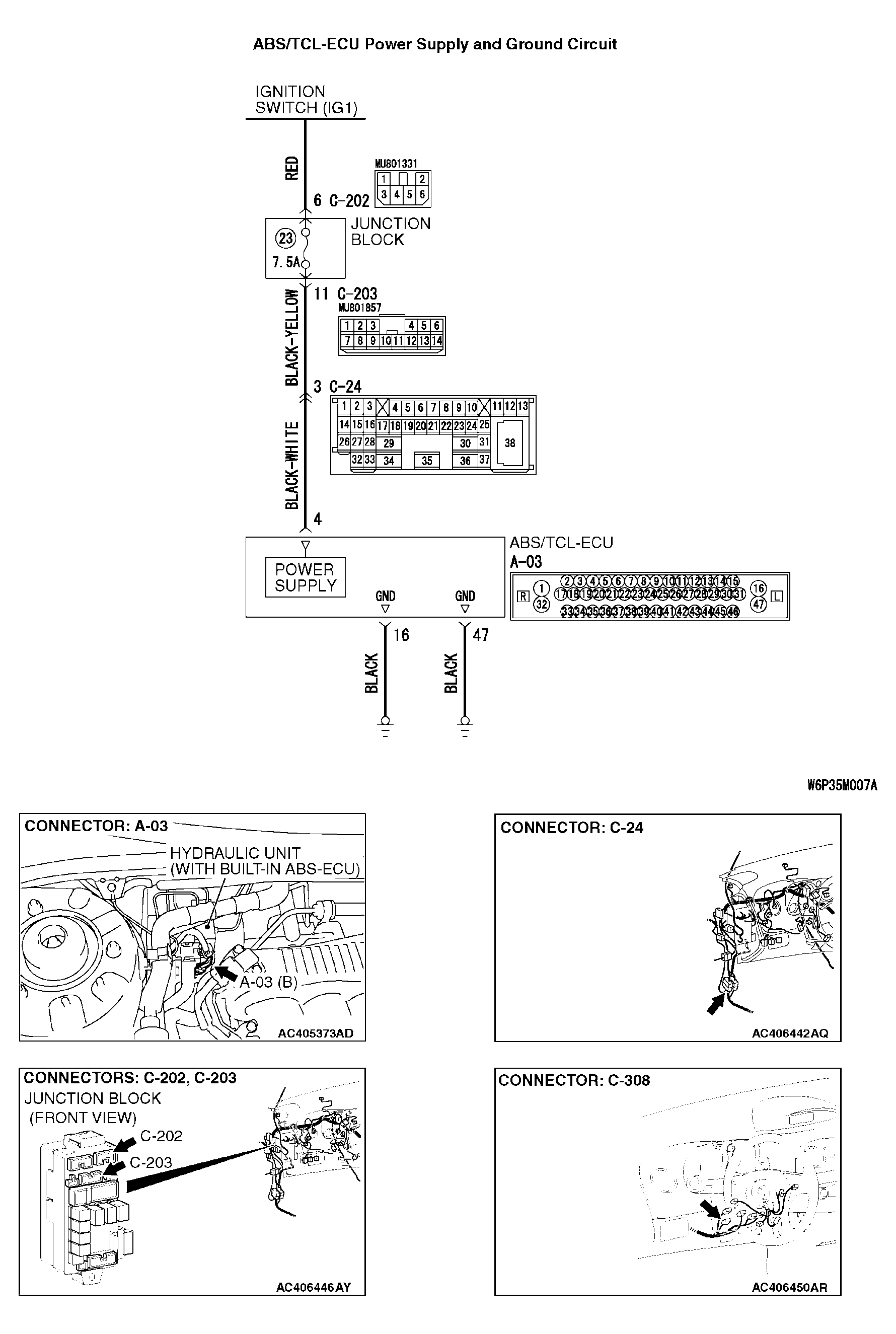

Fig 1: ABS/TCL-ECU Power Supply & Ground Circuit Diagram
