Inspection Procedure 7: When The TCL Switch Is Pushed On, TCL System Is Not Cancelled: Notes

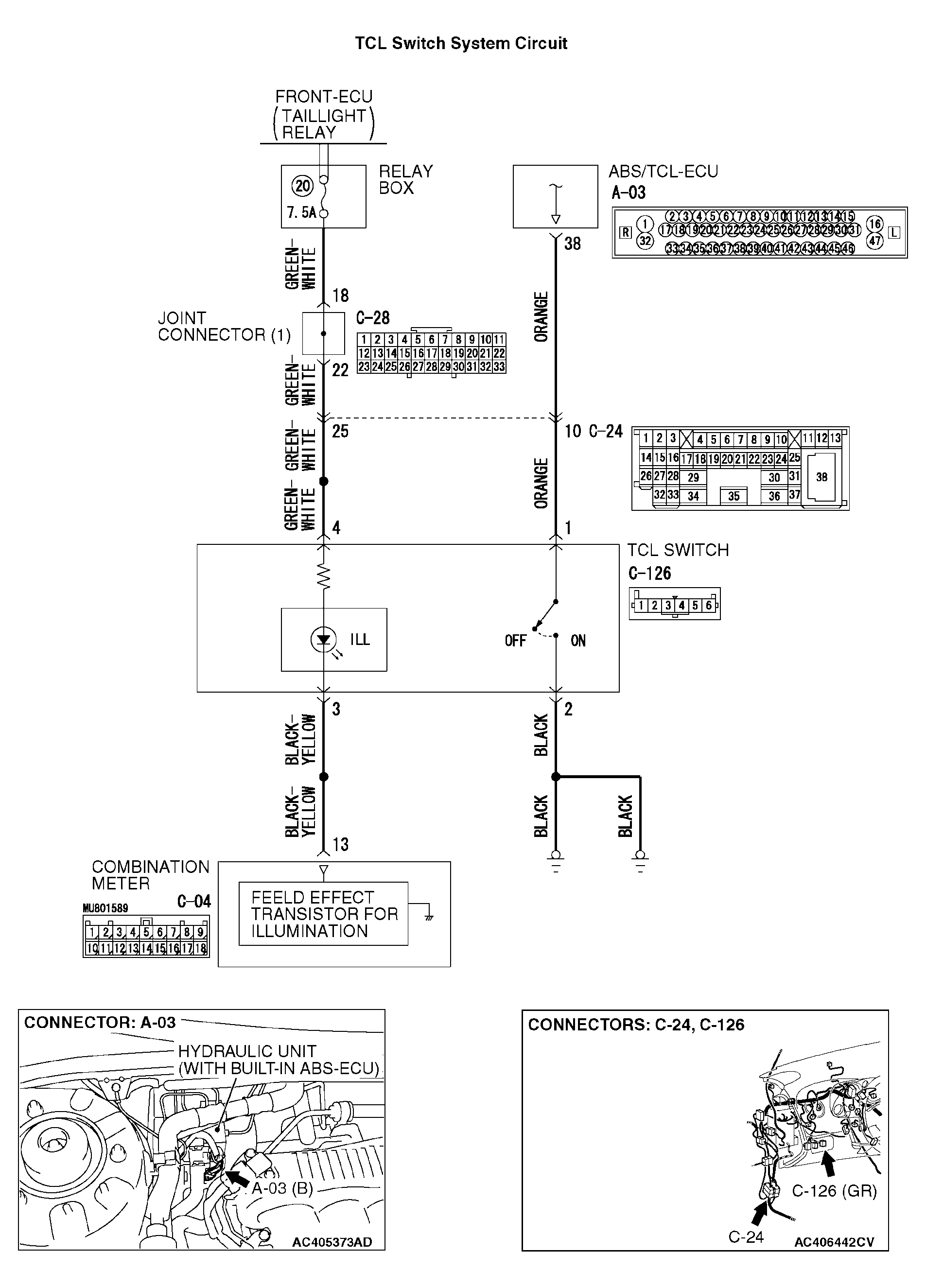

Fig 1: TCL Switch System Circuit Diagram
G04232329Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
