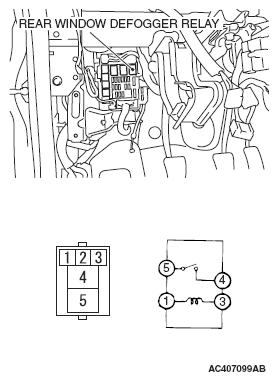

Defogger Relay Continuity Check
TERMINALS CONTINUITY REFERENCE CHART
| BATTERY VOLTAGE |
CONNECT TESTER BETWEEN: |
SPECIFIED CONDITION |
| Not applied |
4-5 |
Open Circuit |
- Connect terminal 1 to the positive battery terminal
- Connect terminal 3 to the negative battery terminal
|
4-5 |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
