Home › Mitsubishi › 2007 › Eclipse SE, Automatic › Repair and Diagnosis › Engine Performance › Tune-Up › Ignition System › Crankshaft Position Sensor › Removal And Installation < 3.8L Engine > › Notes

Removal And Installation < 3.8L Engine >: Notes

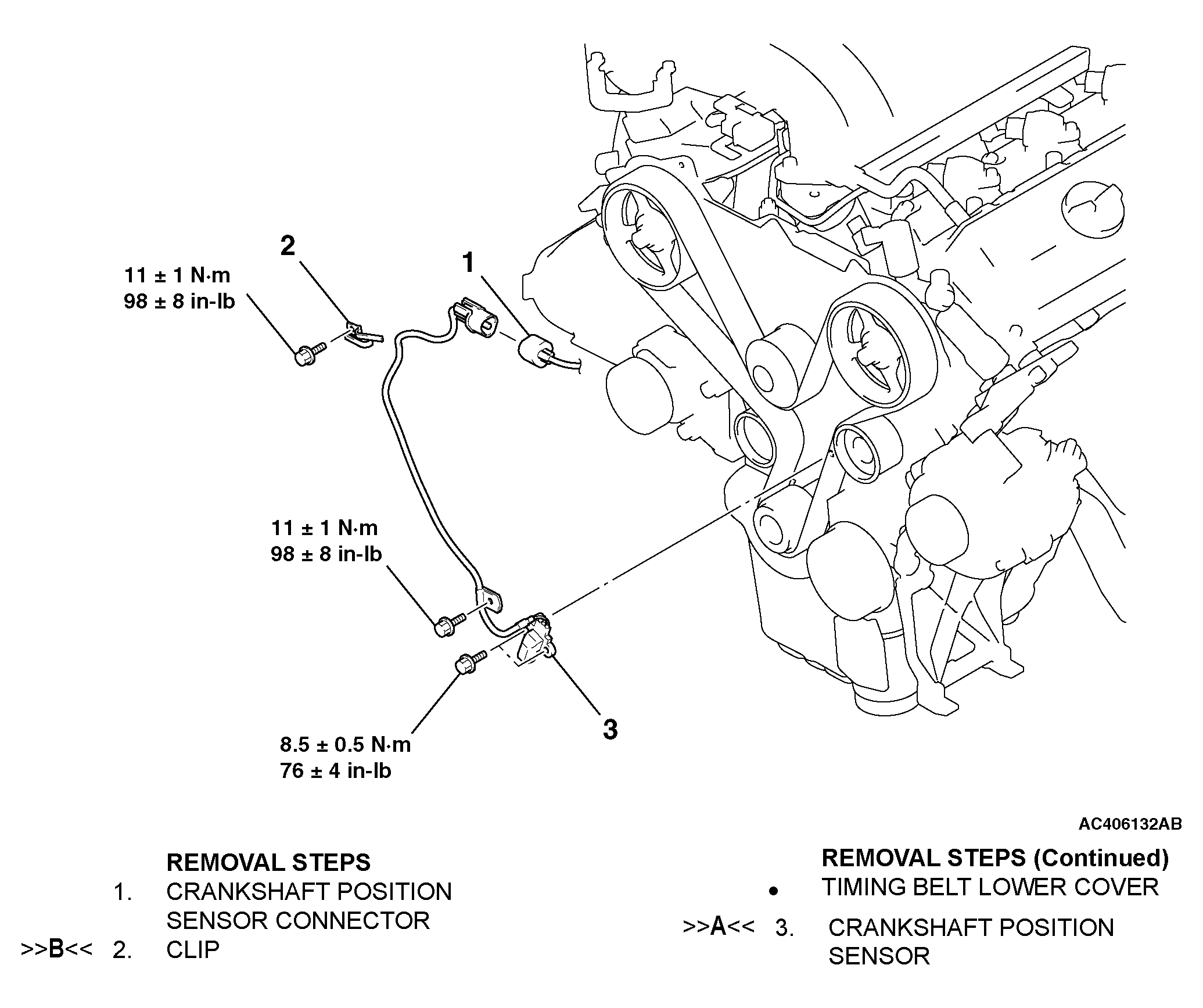

Fig 1: Removing/Installing Crankshaft Position Sensor With Torque Specifications (3.8L Engine)
G04237134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
