Disassembly And Assembly: Notes

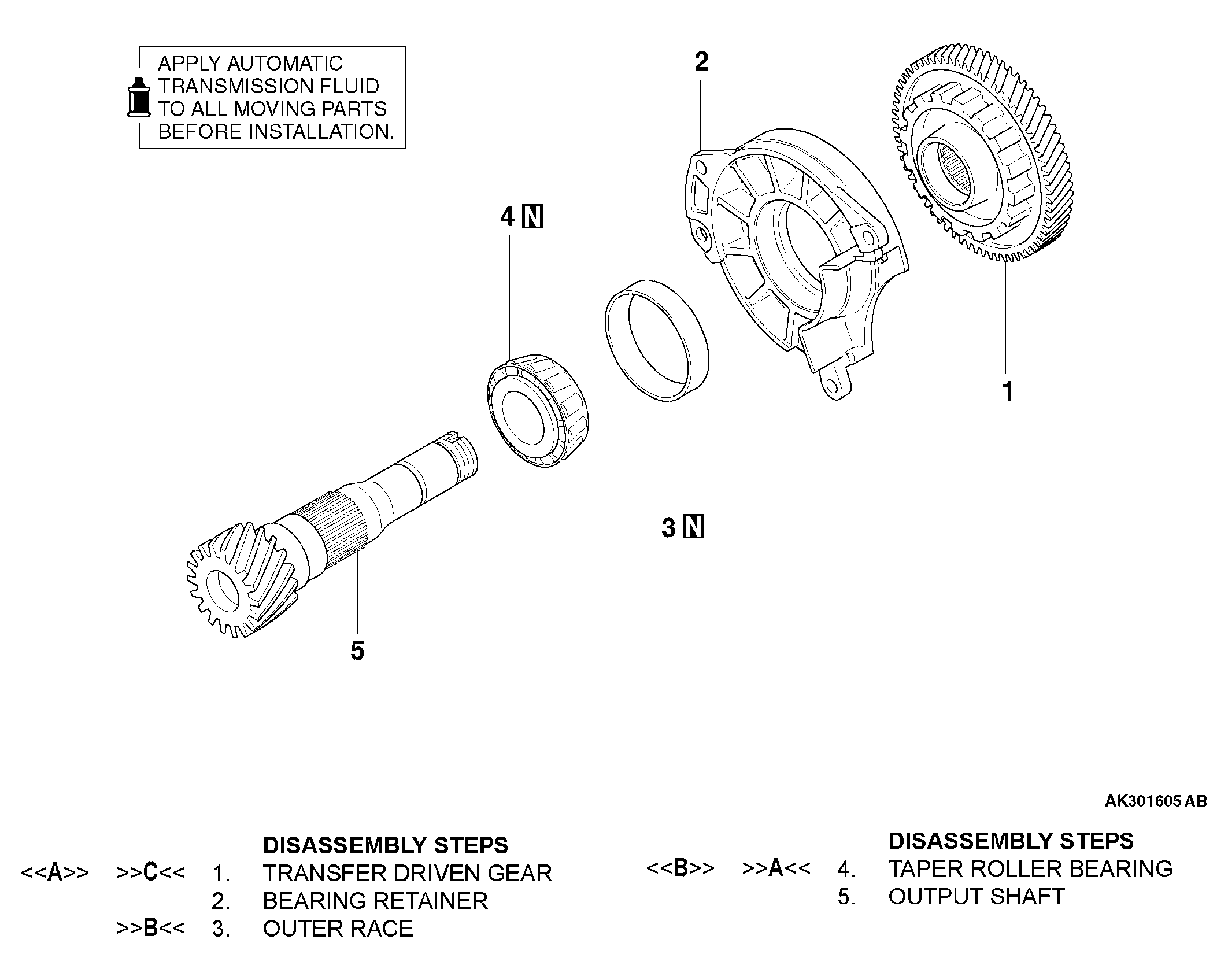

Fig 1: Exploded View Of Output Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990936: Installer Adapter
• MB990938: Handle
• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998813: Installer 100
• MD998814: Installer 200
• MD998823: Installer Adapter (48)
• MD998917: Bearing Remover
