Rear Window Defogger Relay Continuity Check

REAR WINDOW DEFOGGER RELAY CONTINUITY CHECK

BATTERY VOLTAGE	CONNECT TESTER BETWEEN:	SPECIFIED CONDITION
Not applied	4 - 5	Open circuit
Connect terminal 1 to the positive battery terminal Connect terminal 3 to the negative battery terminal	4 - 5	Less than 2 ohms

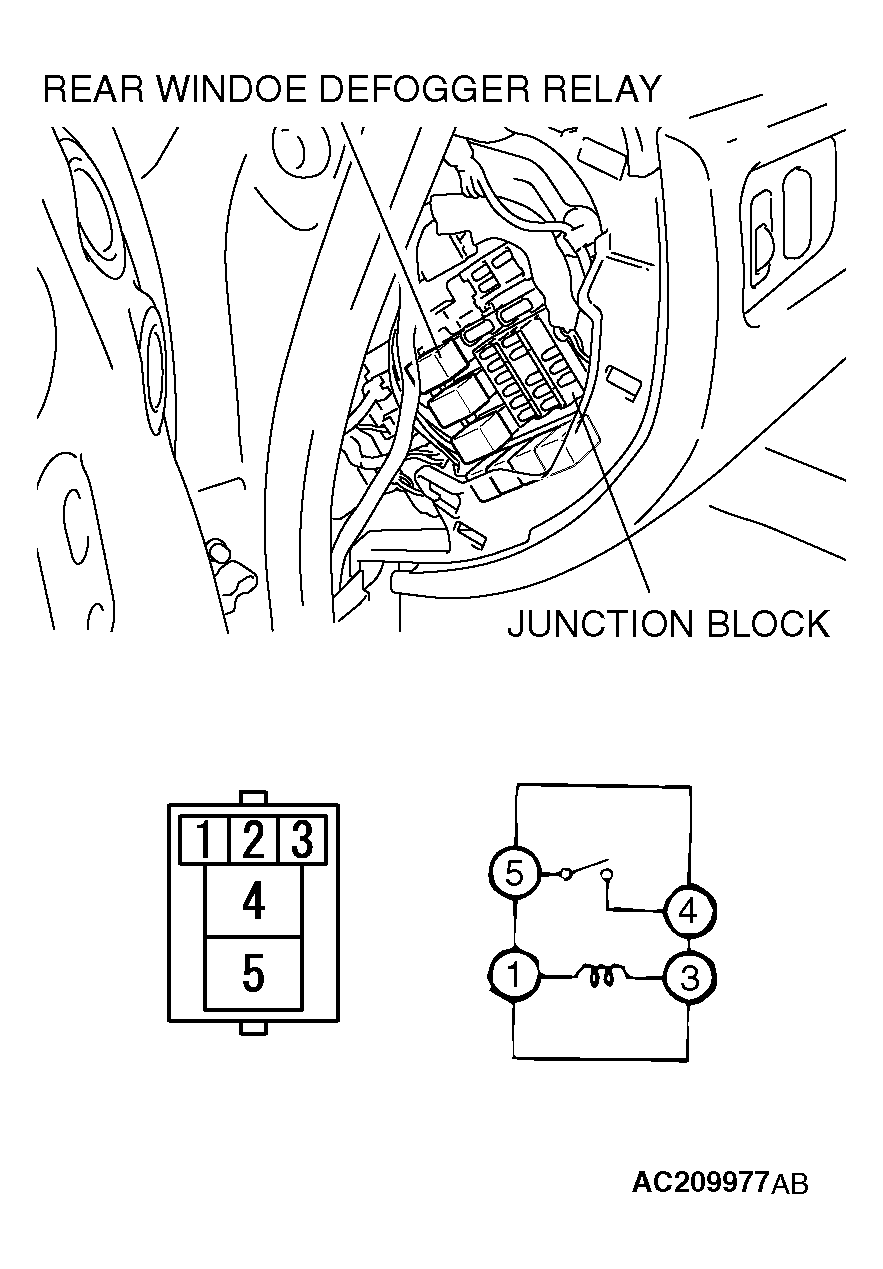

Fig 1: Locating & Checking Rear Window Defogger Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
