Sunroof Switch Continuity Check

TESTING SUNROOF SWITCH

SWITCH POSITION	TESTER CONNECTION	SPECIFIED CONDITION
Open	4 - 5	Less than 2 ohms
Off	3 - 4, 3 - 5, 3 - 6, 4 - 5, 4 - 6, 5 - 6	Open circuit
Tilt-up	3 - 4	Less than 2 ohms
Close/Tilt-down	4 - 6	Less than 2 ohms

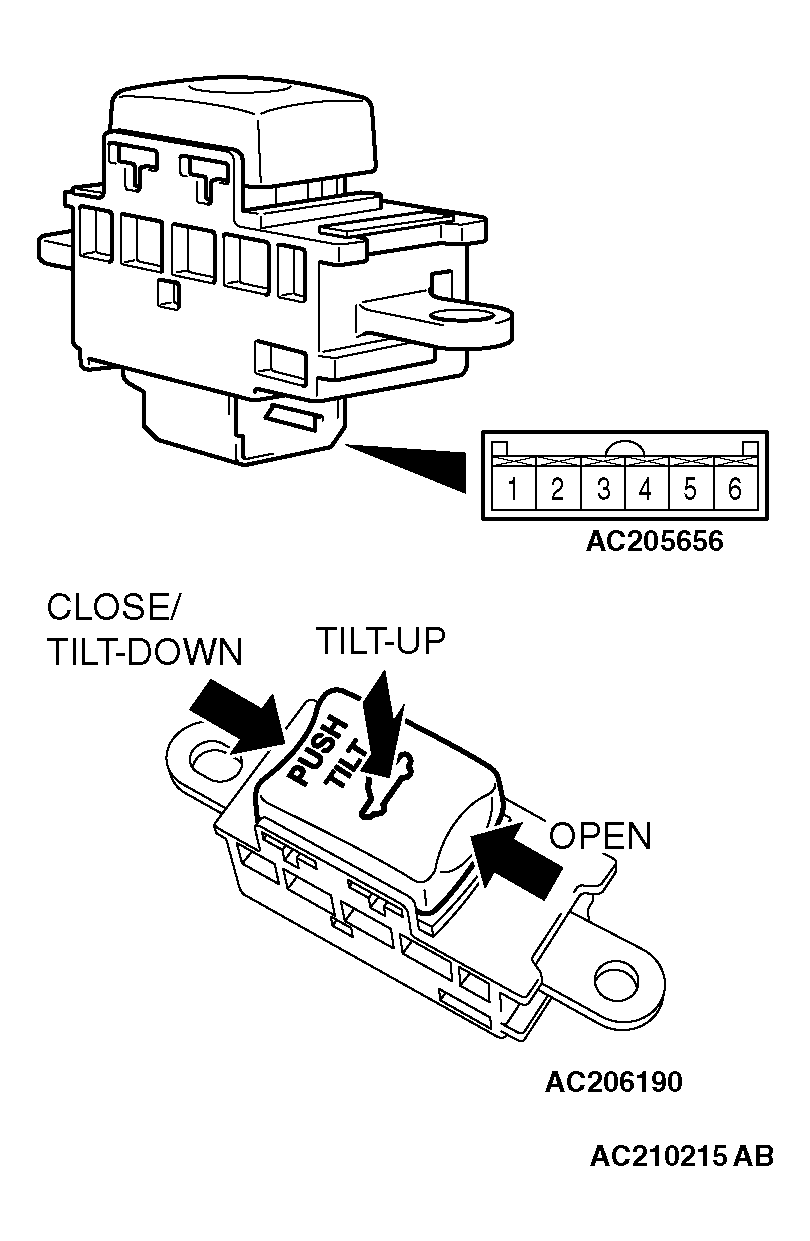

Fig 1: Identifying Sunroof Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
