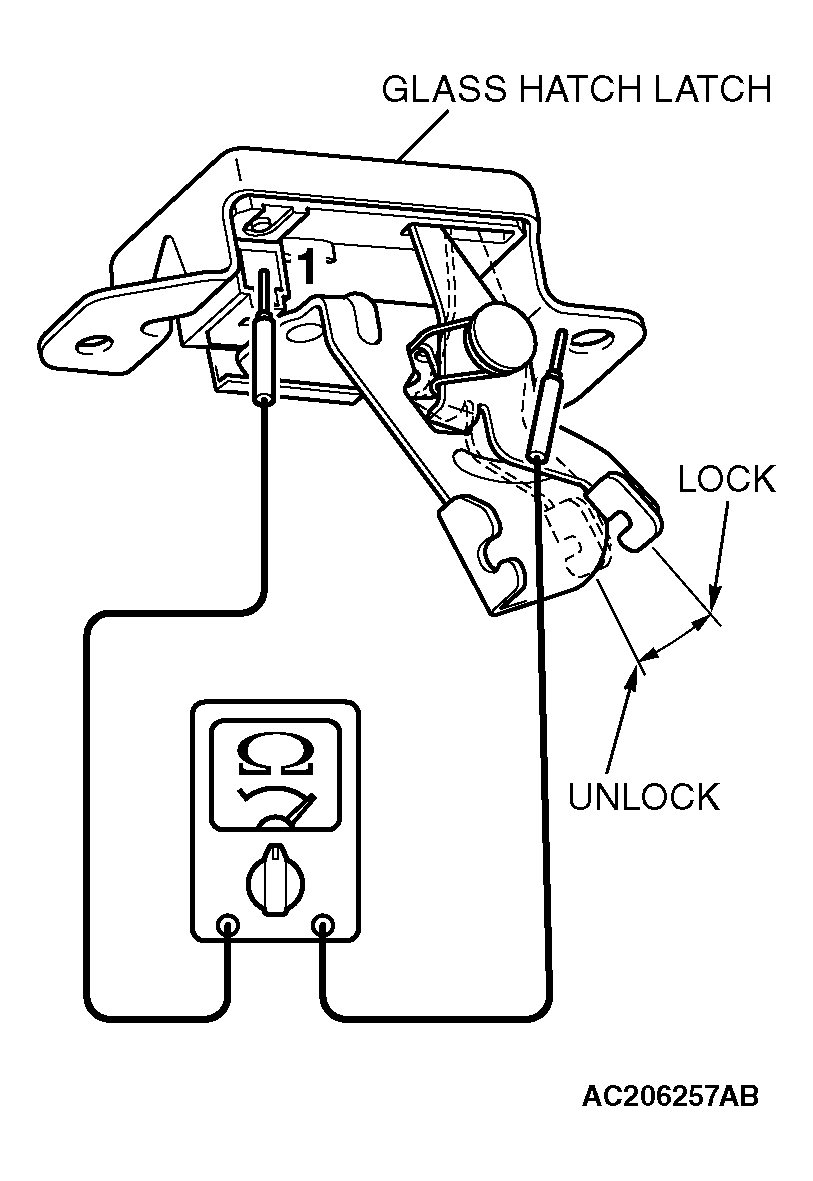

Glass Hatch Latch Check
Then check continuity between the glass hatch latch terminal and the body ground.
TESTING GLASS HATCH LATCH
| LEVER POSITION |
TESTER CONNECTION |
SPECIFIED CONDITION |
| At the "LOCK" position |
1 - body ground |
Open circuit |
| At the "UNLOCK" position |
1 - body ground |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
