Auto-Cruise Control Switch Connector End View
Auto-Cruise Control Switch Connector End View

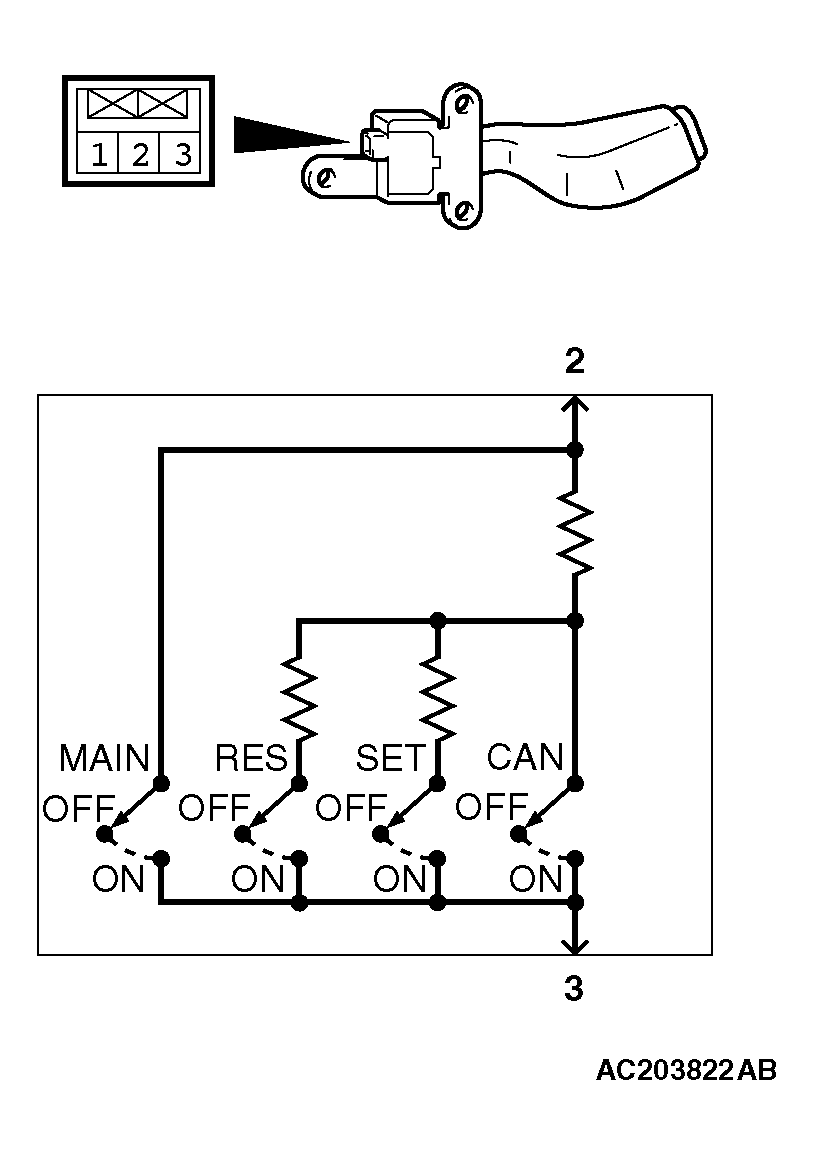

Fig 1: Auto-Cruise Control Switch Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
