Liftgate Latch Check

Check continuity between the liftgate latch terminal and the body ground.

TESTING LIFTGATE LATCH

LEVER POSITION	TESTER CONNECTION	SPECIFIED CONDITION
At the "LOCK" position	1 - body ground	Open circuit
At the "UNLOCK" position	1 - body ground	Less than 2 ohms

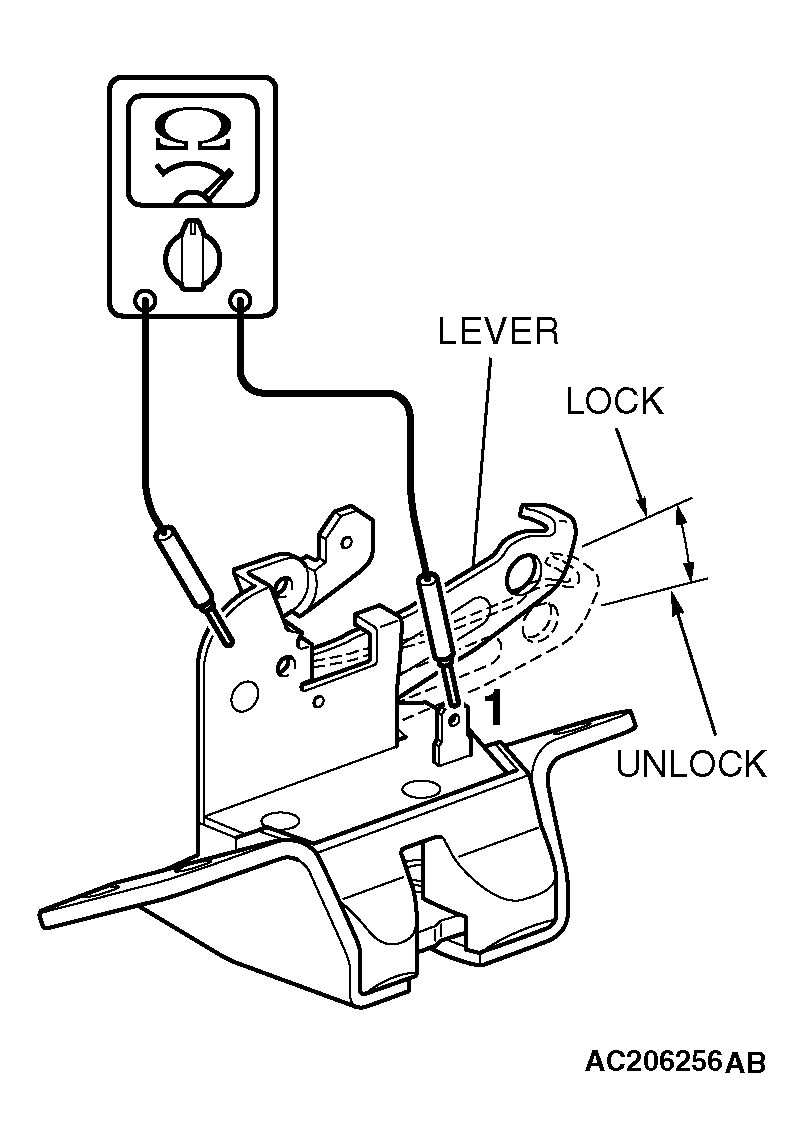

Fig 1: Checking Continuity Between Liftgate Latch Terminals & Body Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
