Disassembly And Assembly: Notes

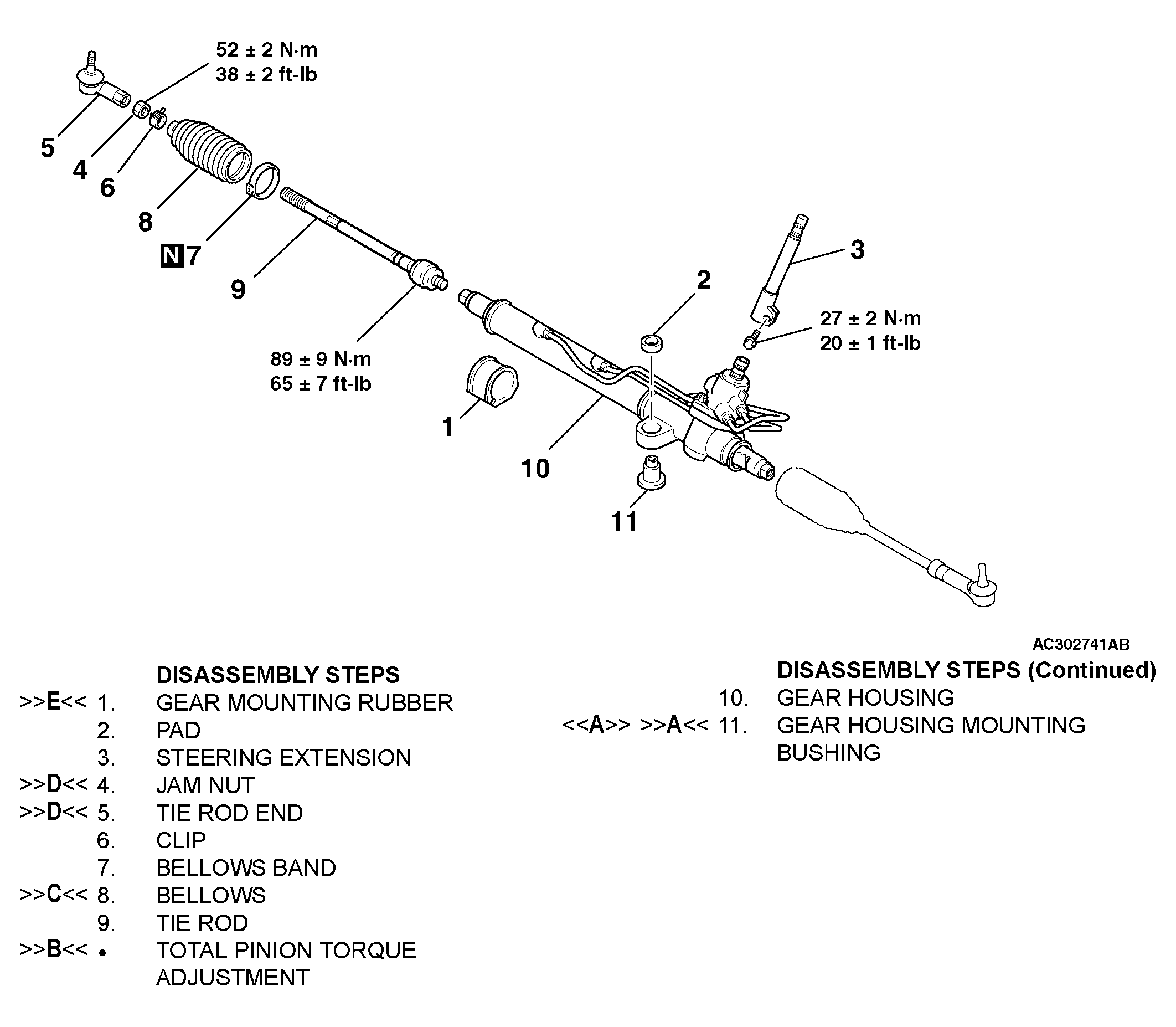

Fig 1: Disassembling/Assembling Power Steering Gear Box And Linkage With Torque Specifications

G04312620

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991006: Preload Socket
MD998812: Installer Cap
MD998813: Installer 100
MD998822: Installer Adapter
MD998368: Bearing Installer
MD999569: Camshaft Oil Seal Installer
MB990996: Lower Arm Bushing Arbor
