Disassembly And Assembly: Notes

WARNING:
  • Do not move the tilt lever from the lock position until the installation is completed. If you move it accidentally, the steering column cannot be reinstalled correctly.

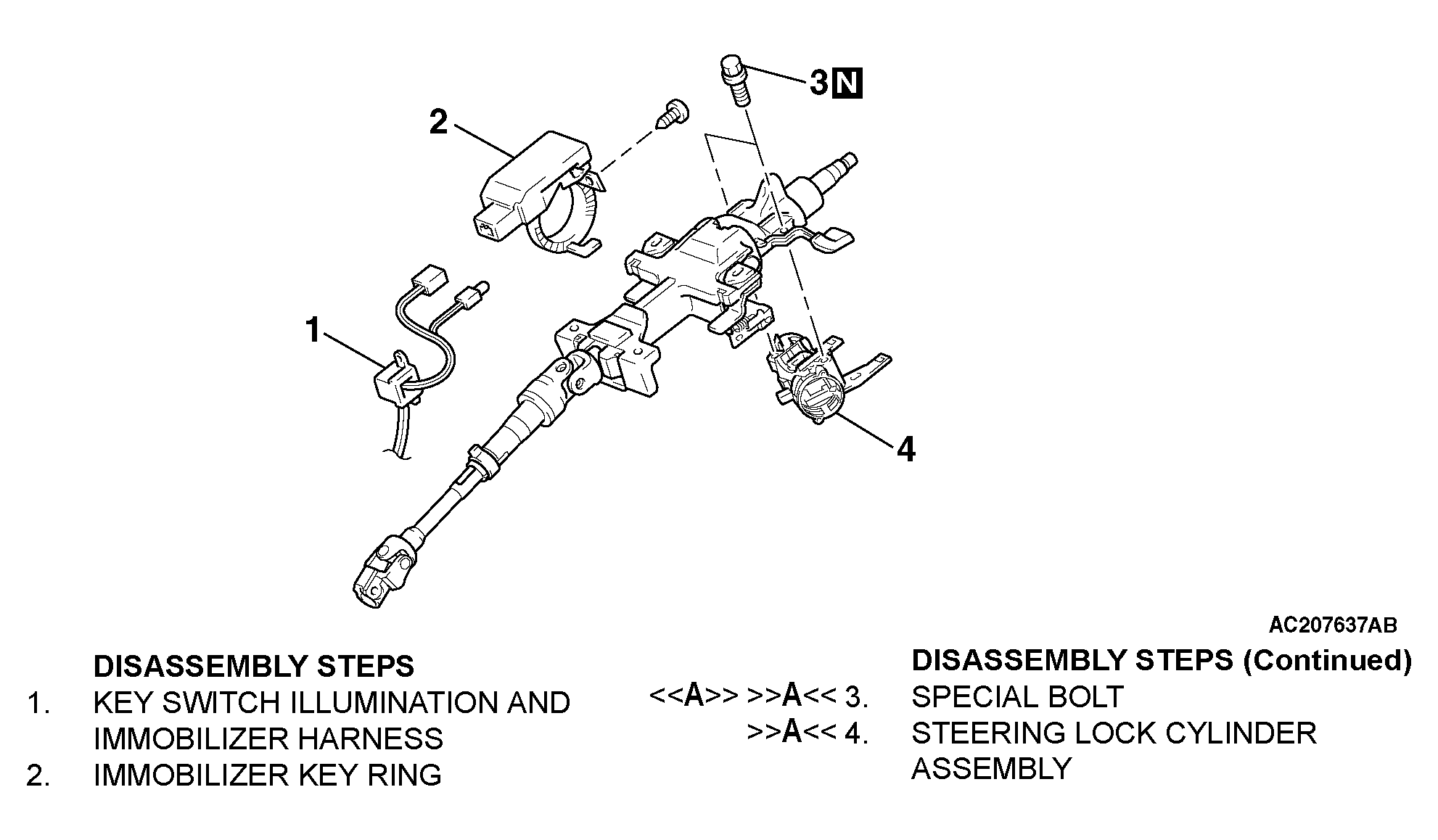

    Fig 1: Steering Shaft Assembly
    G04312604Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
