Inspection Procedure E-4: Keyless Entry System: The Trunk Is Not Opened When The Keyless Entry Transmitter "Trunk" Button Is Operated: Notes

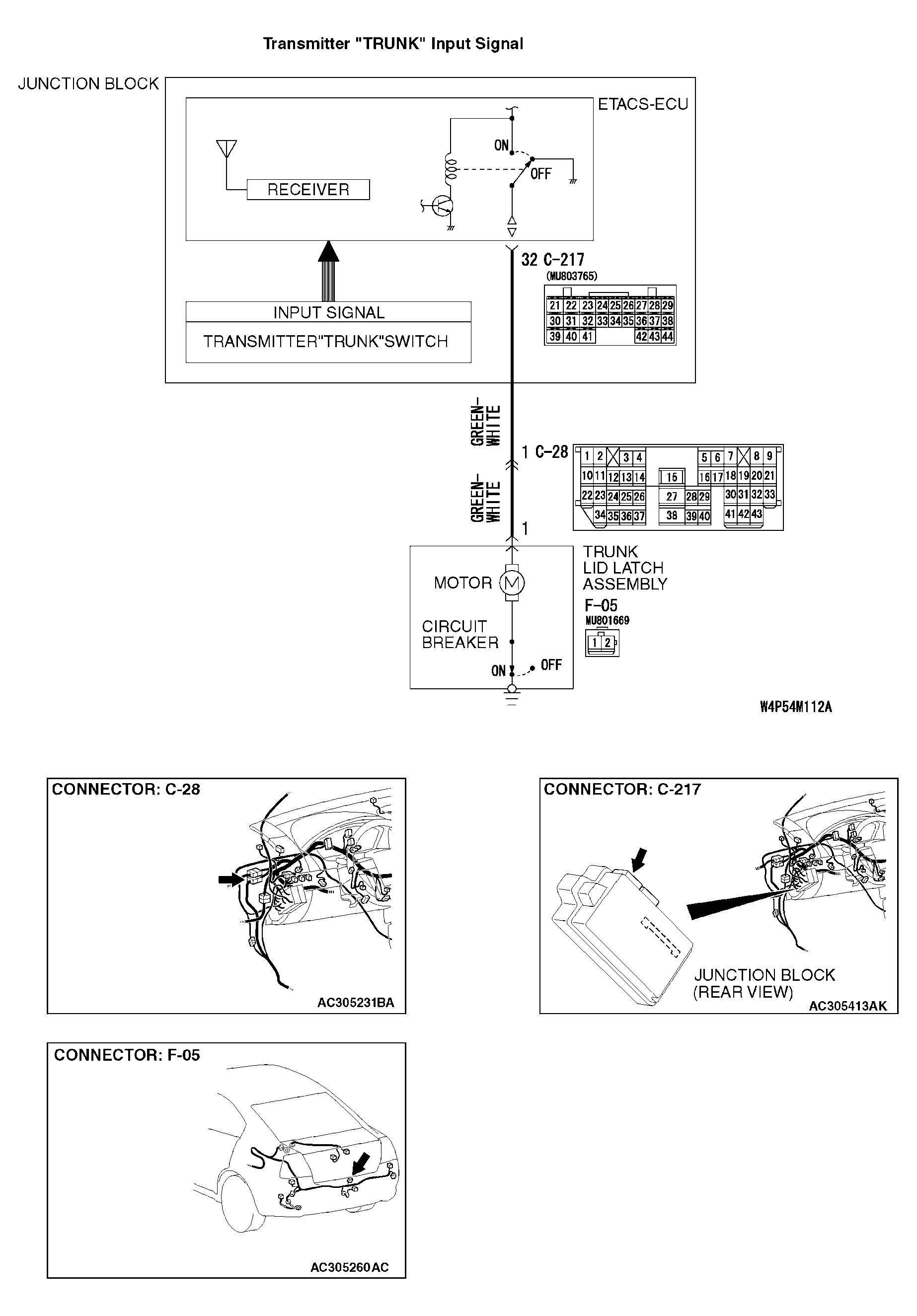

Fig 1: Transmitter "Trunk" Input Signal
G04257437Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
