Removal And Installation < 3.8L Engine - MIVEC>
›
Notes
Removal And Installation < 3.8L Engine - MIVEC>: Notes

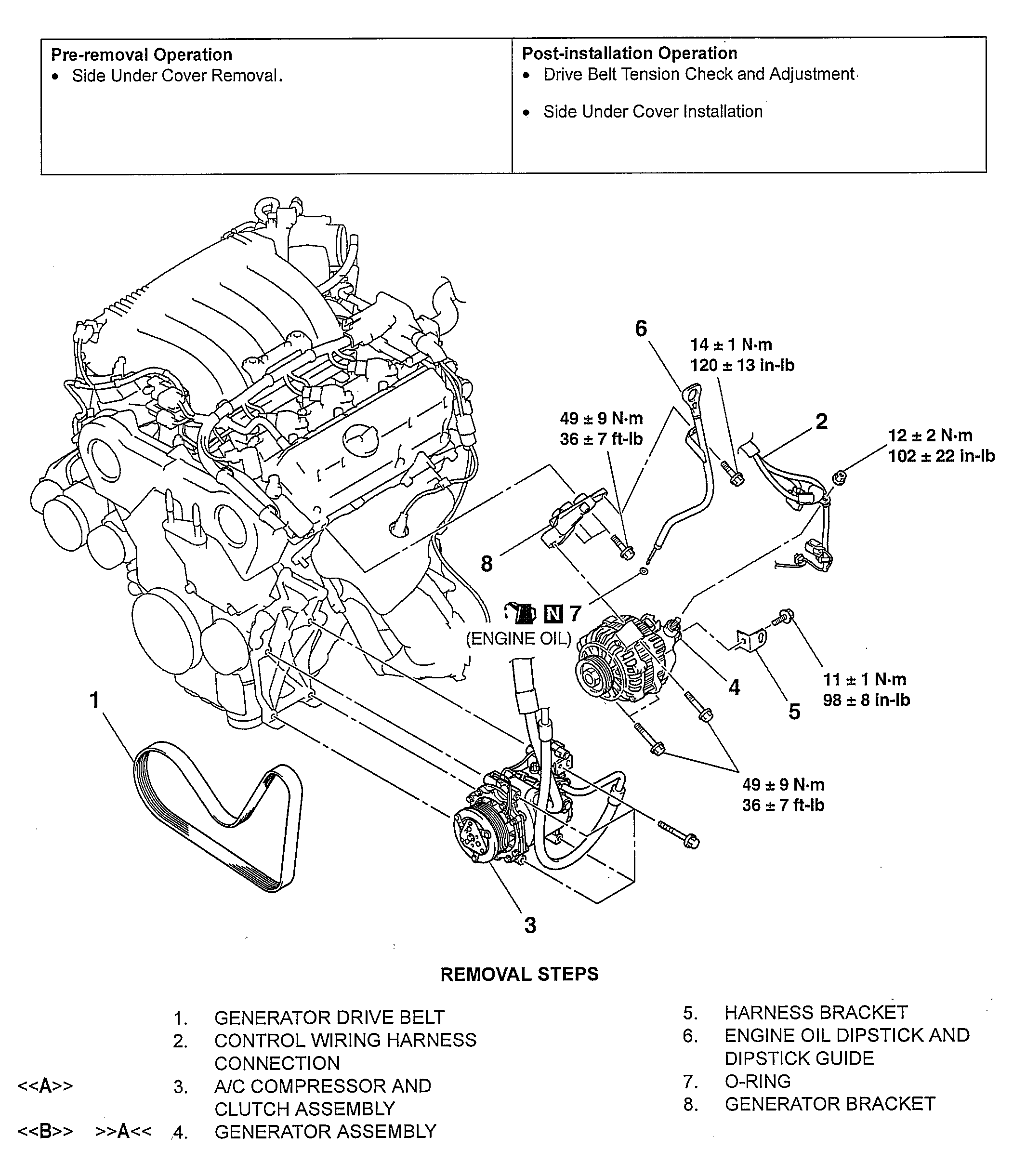

Fig 1: Removing/Installing Generator Assembly - 3.8L Engine - MIVEC With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
