Circuit Protection Devices

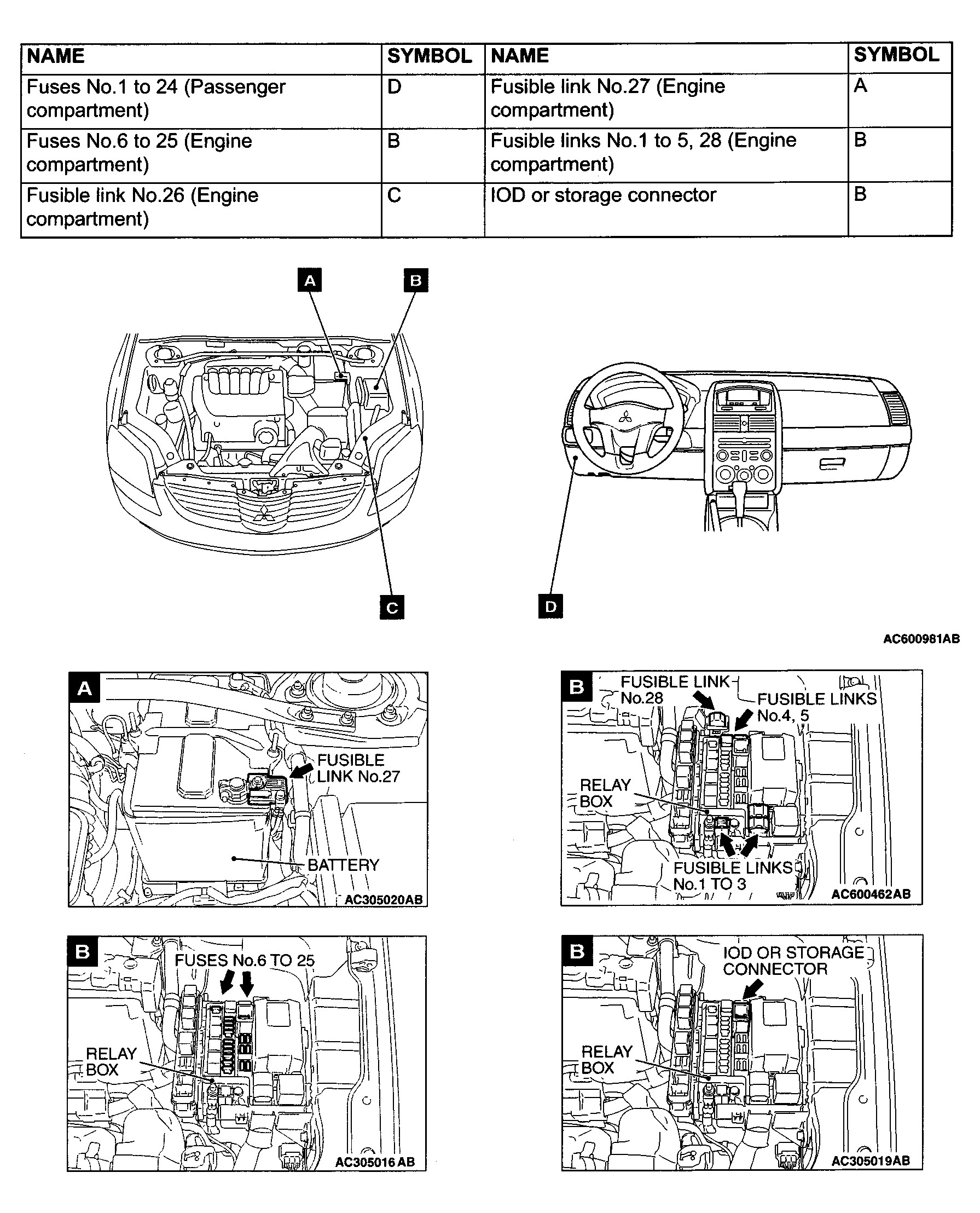

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

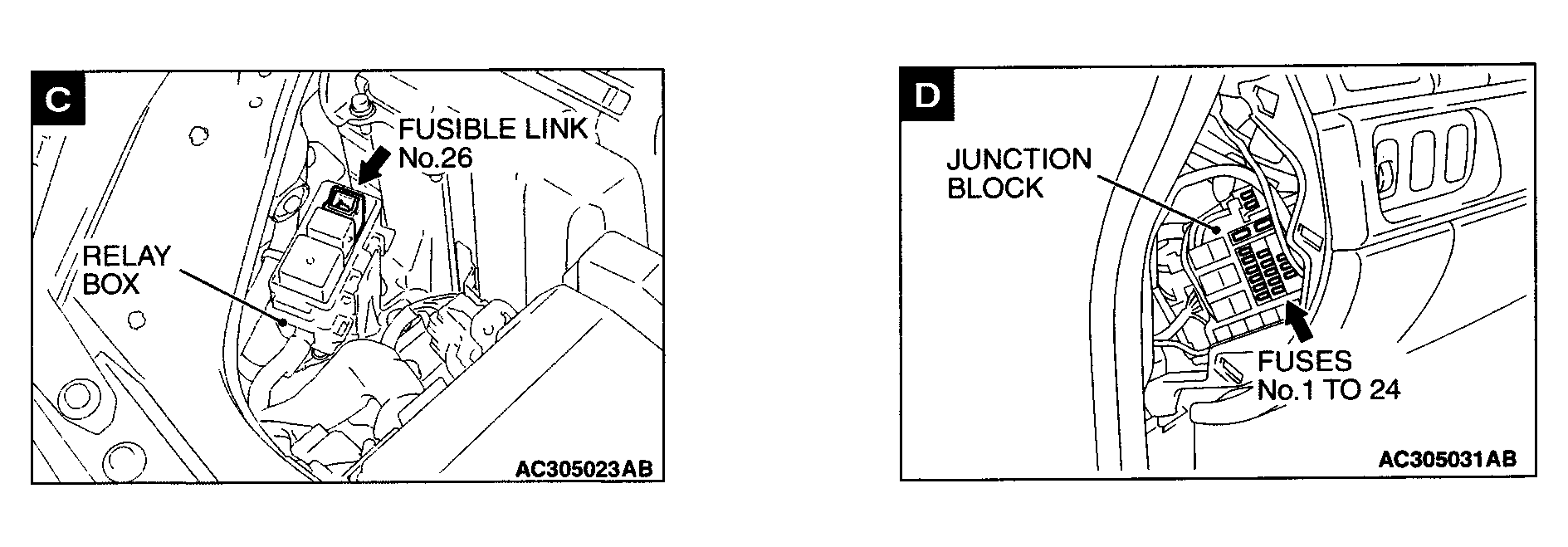

| Fusible Link No. 26 | In relay box. See Figure. |
| Fusible Link No. 27 | At positive battery terminal connection. See Figure. |
| Fusible Links No. 1 - 5 & 28 | On engine compartment relay box. See Figure. |
| Junction Block | Behind left side of dash. See Figure. |
| Relay Box | Left side of engine compartment. See Figure. |
