Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

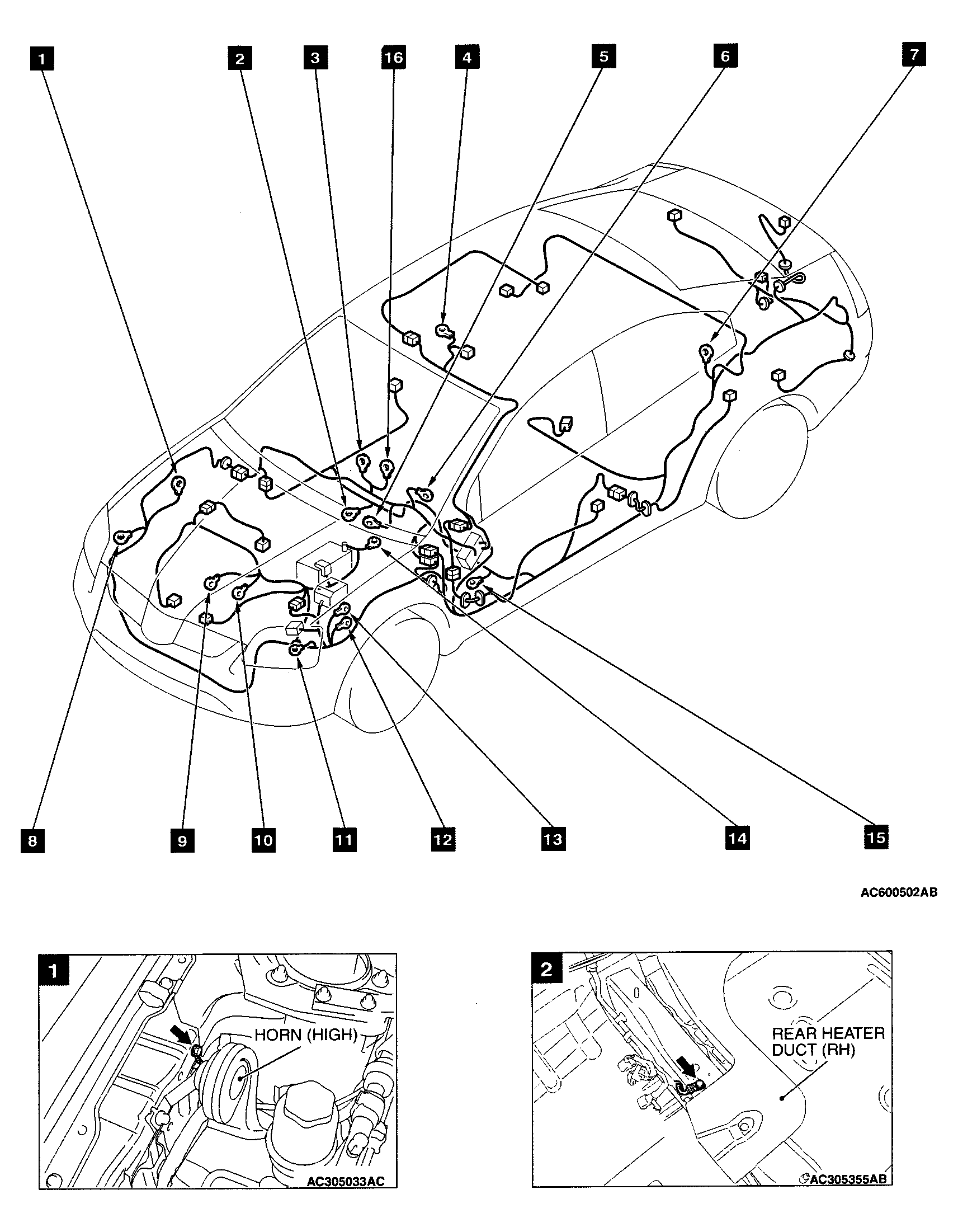

Fig 1: Grounds (1 Of 3)

G00446335

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

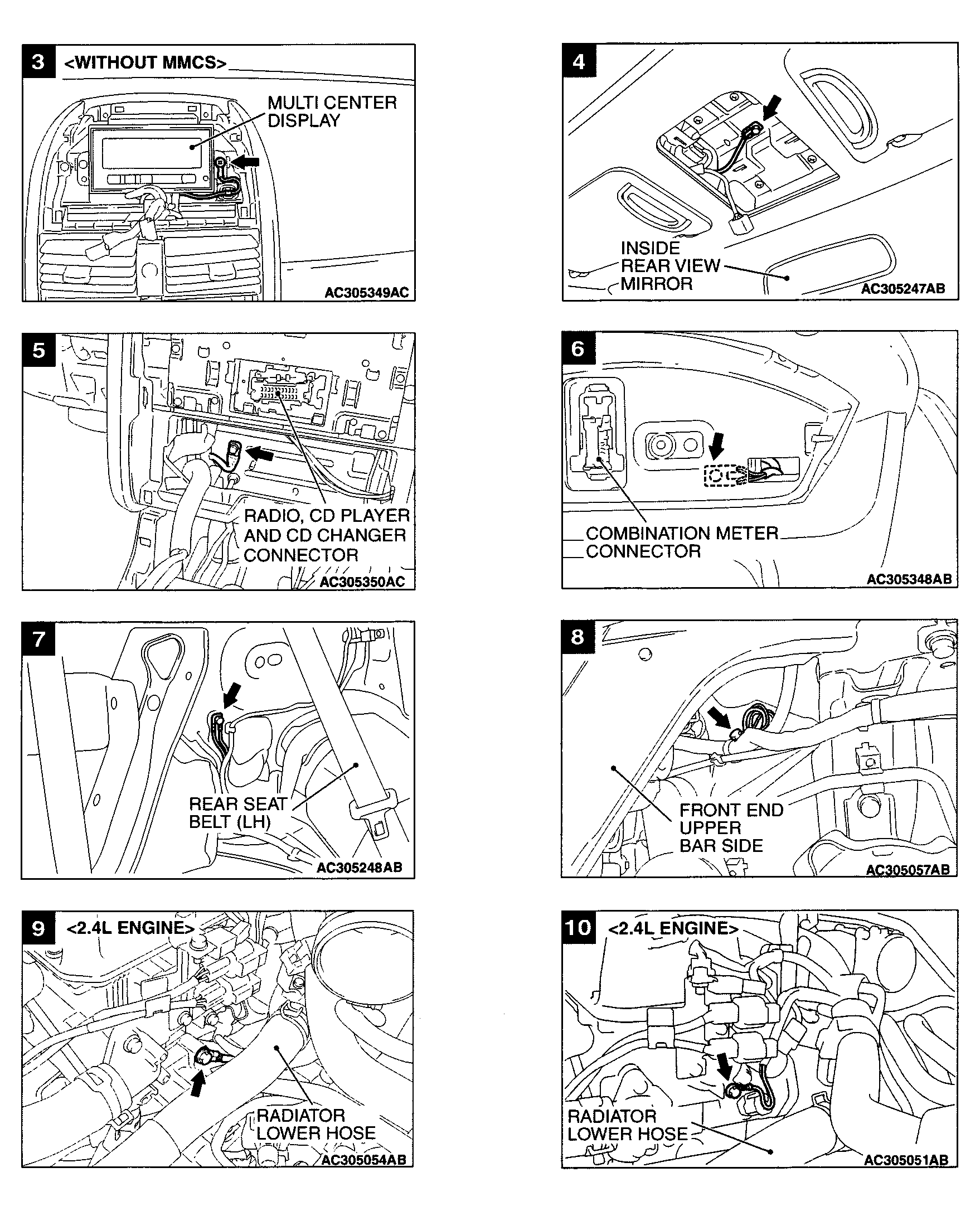

Fig 2: Grounds (2 Of 3)

G00446336

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

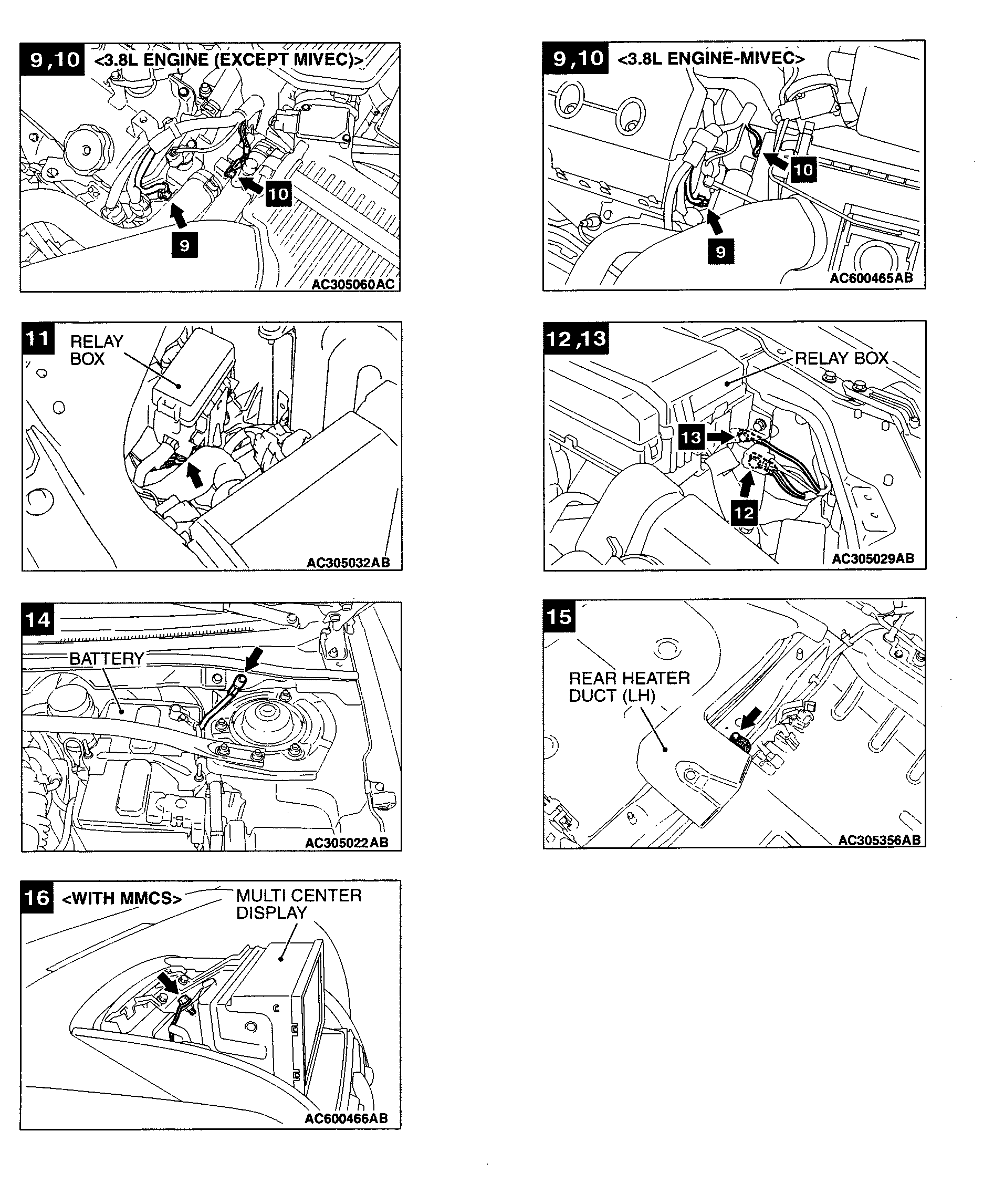

Fig 3: Grounds (3 Of 3)

G00446337

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

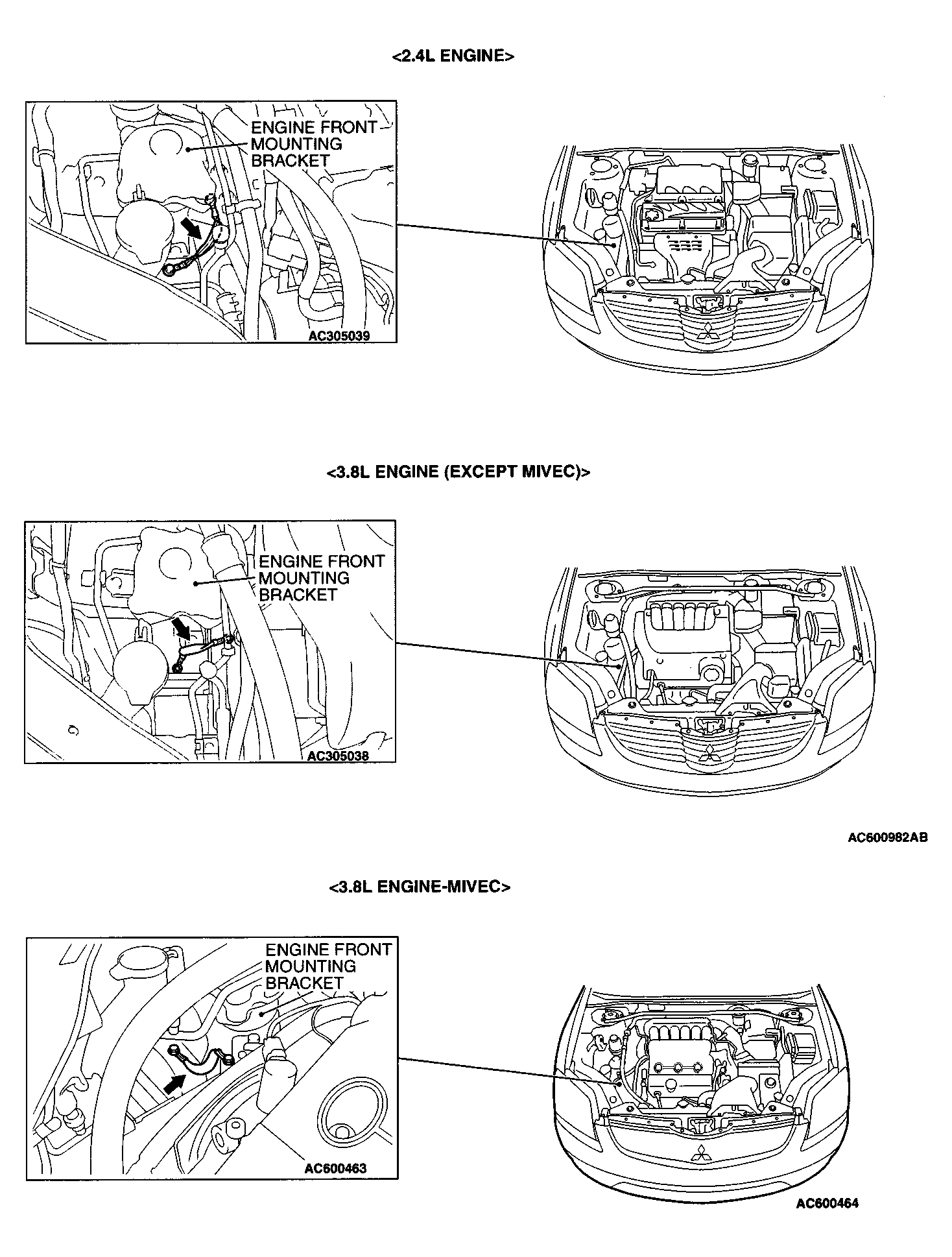

Fig 4: Engine Compartment

G00446334

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

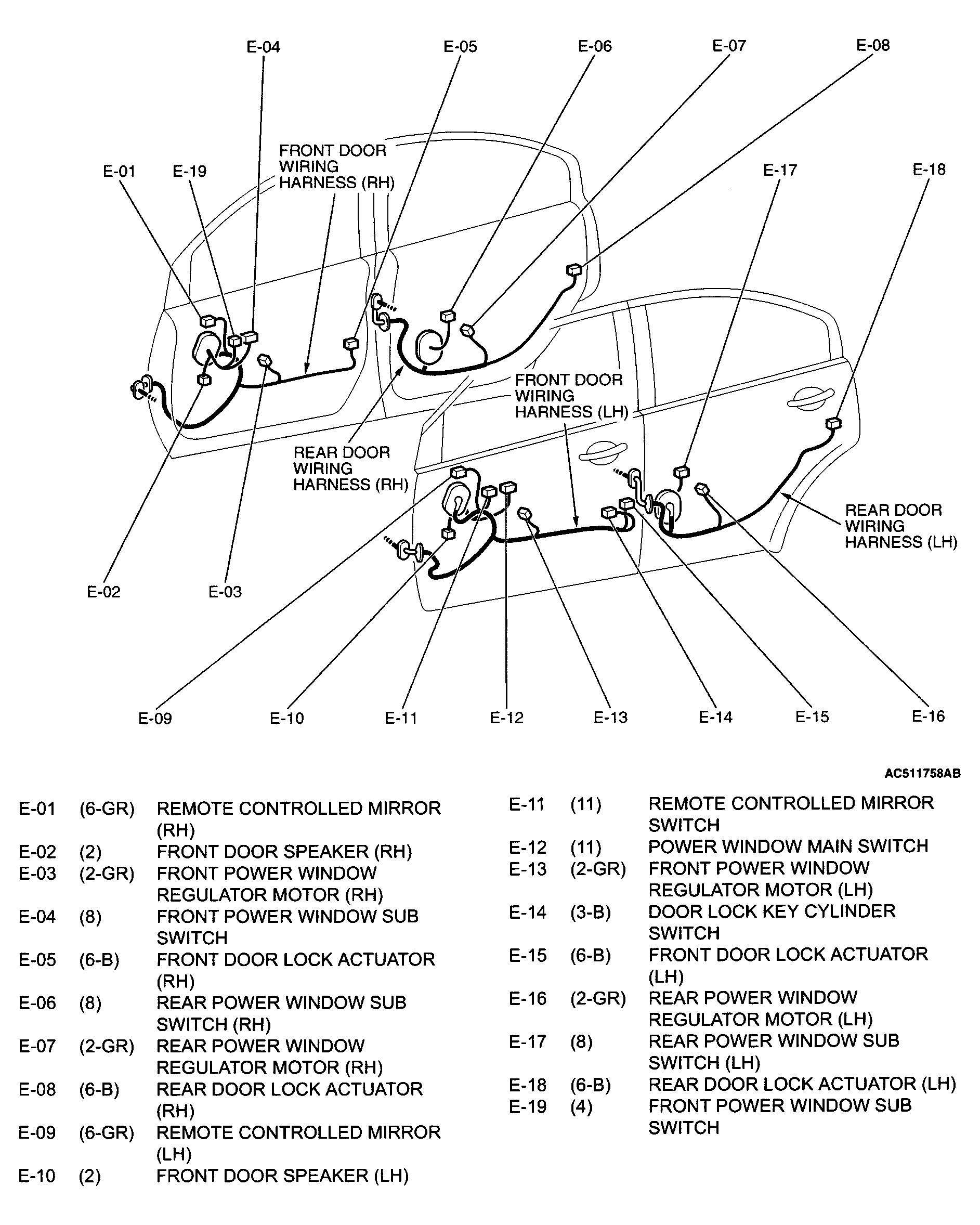

Fig 5: Doors

G00446355

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Engine & Transaxle (2.4L)

G00270662

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Engine & Transaxle (3.8L)

G00270663

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Floor & Roof (1 Of 2)

G00359238

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

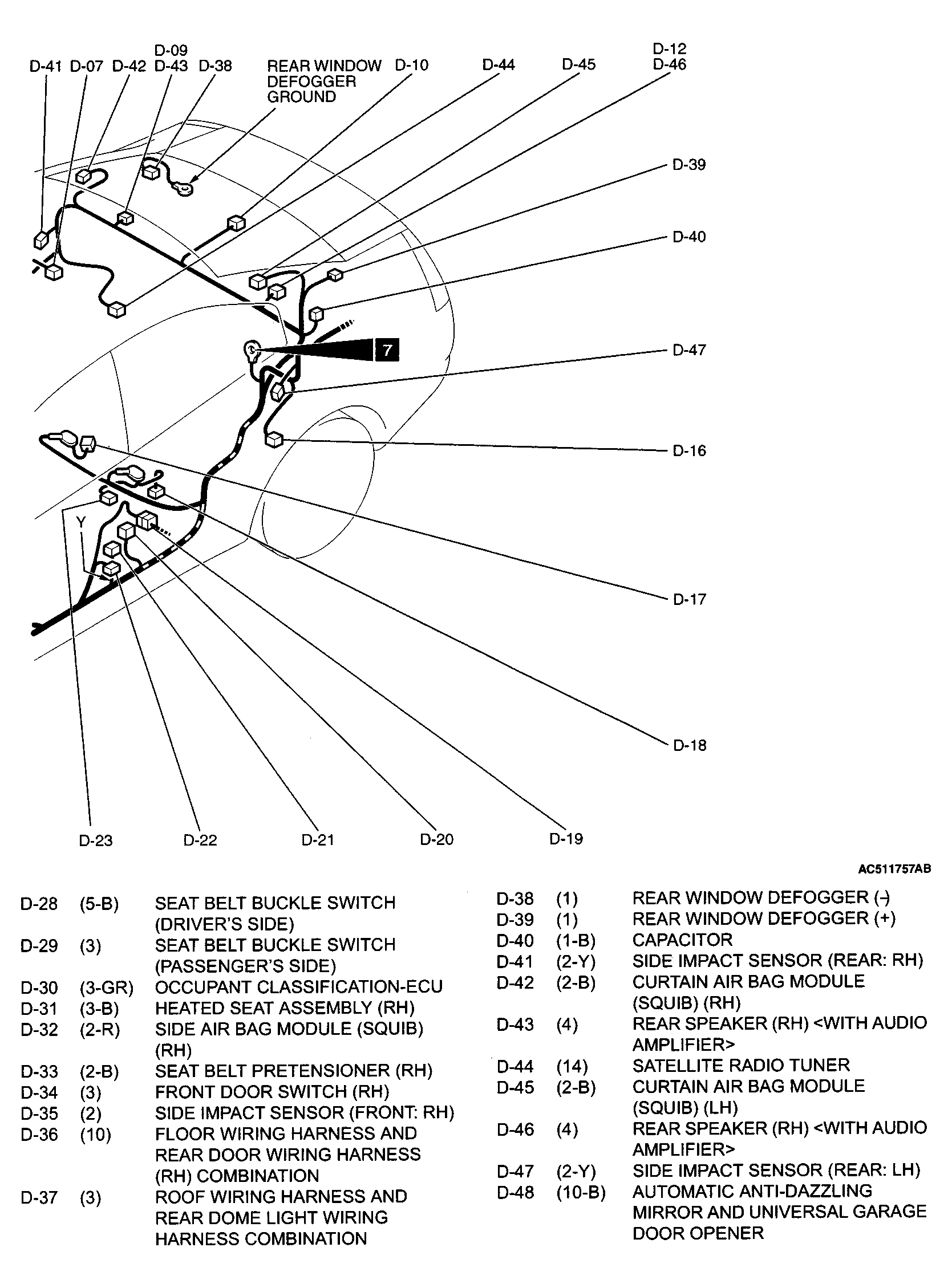

Fig 9: Floor & Roof (2 Of 2)

G00446359

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Dash & Center Floor Console

G00446361

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Door Splices

G00359242

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

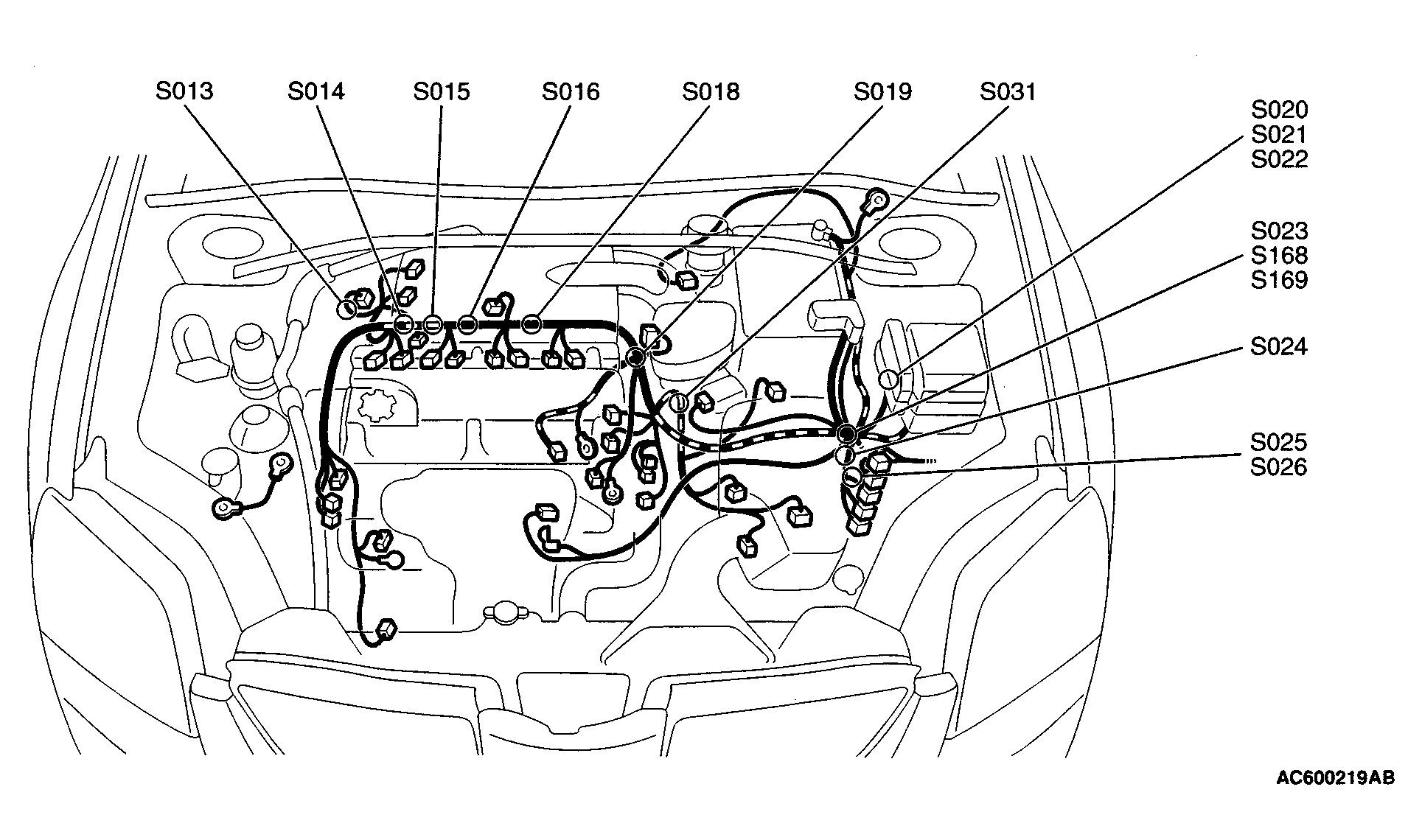

Fig 12: Engine (2.4L)

G00446362

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

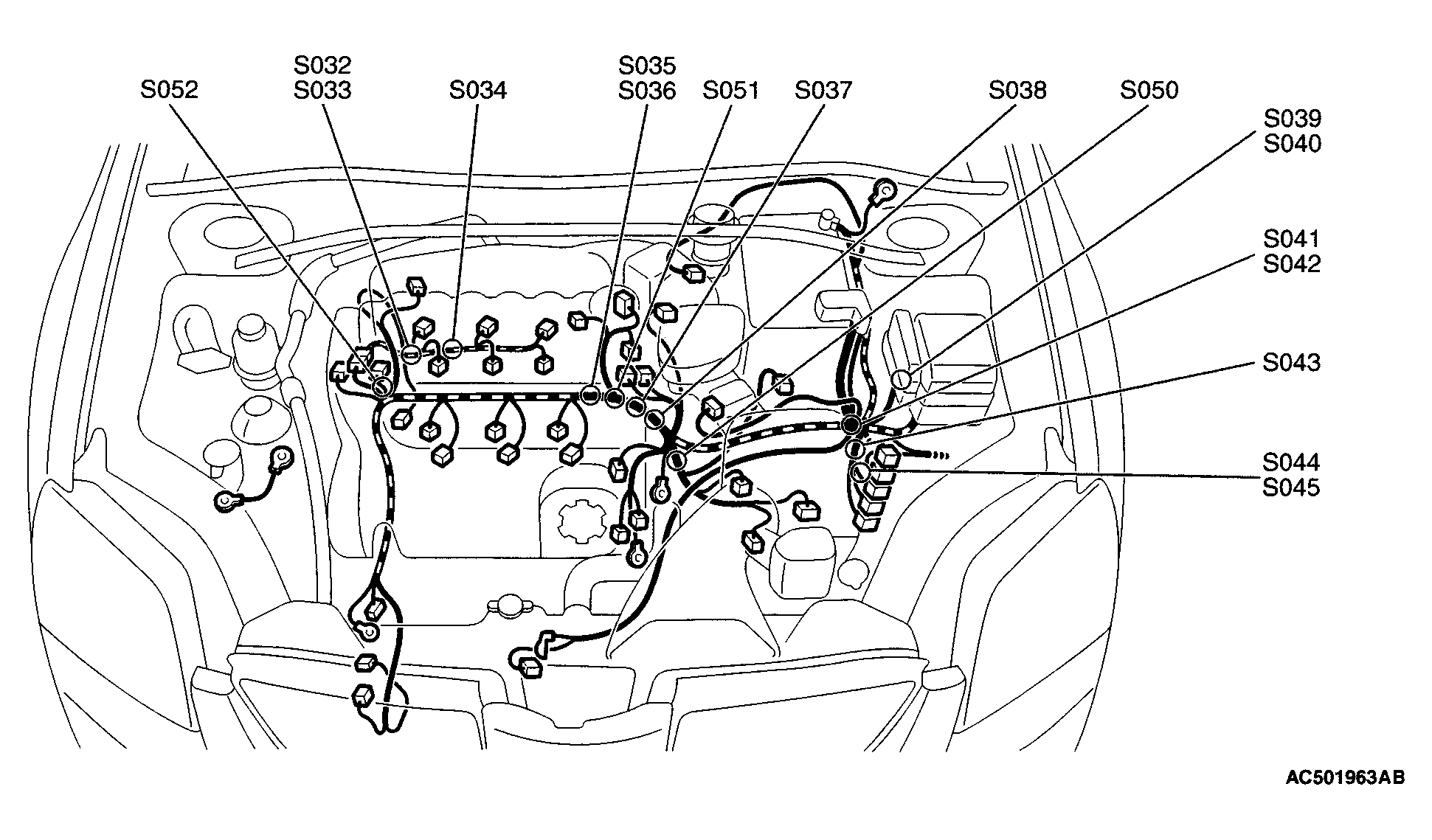

Fig 13: Engine (3.8L, Except MIVEC)

G00446363

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

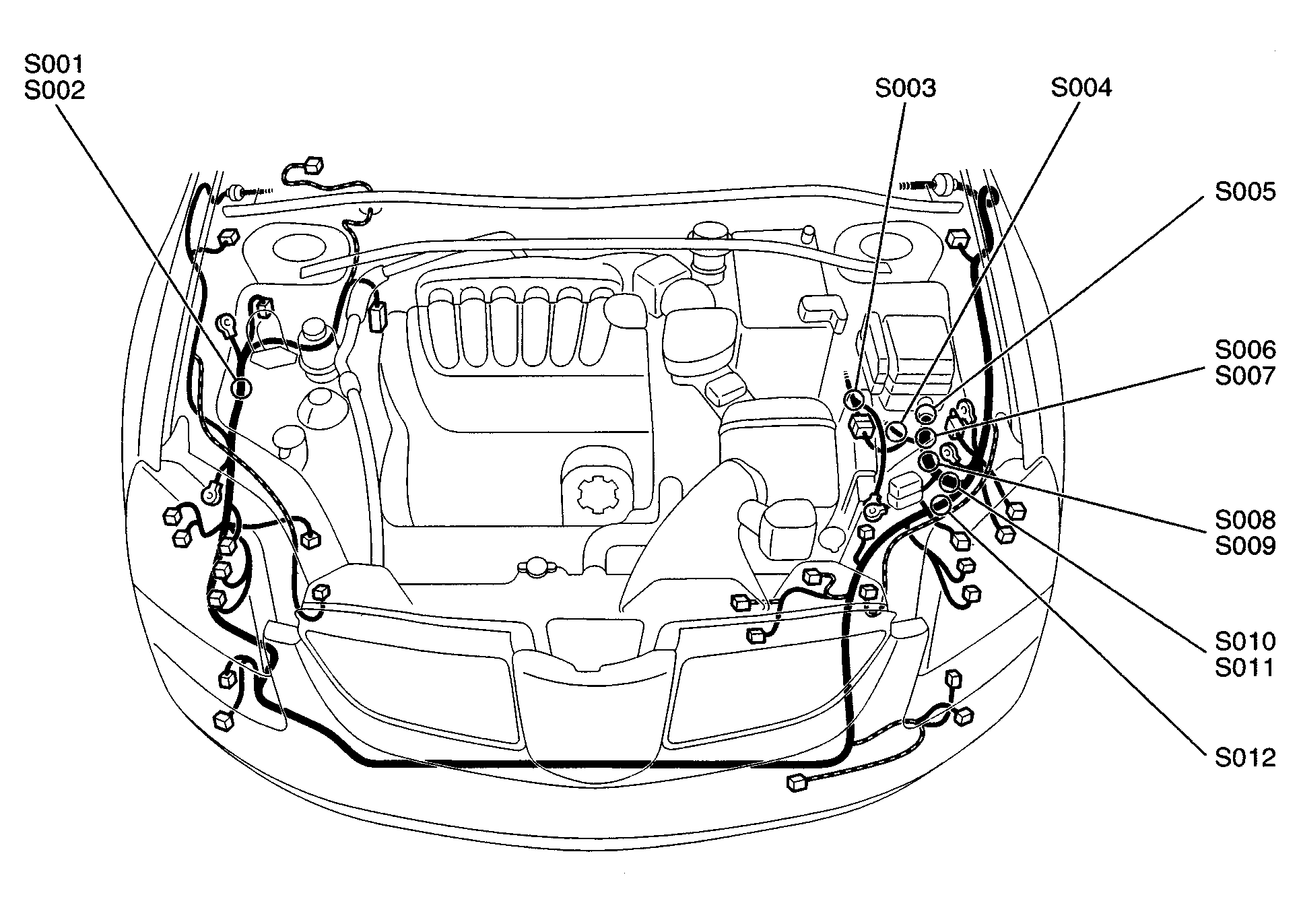

Fig 14: Engine Compartment

G00446364

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Floor & Roof

G00359246

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Luggage Compartment

G00359247

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

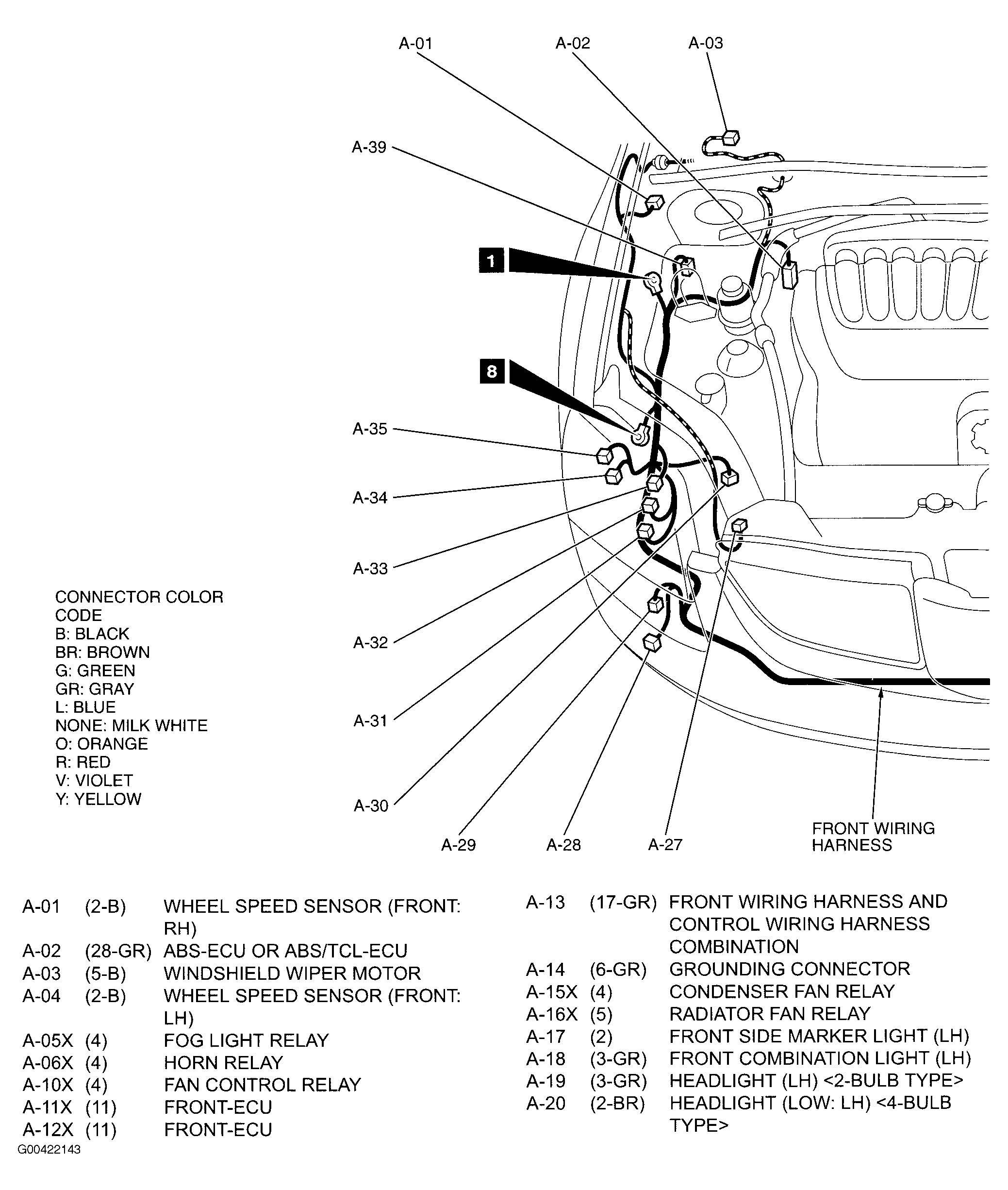

Fig 17: Right Side Of Engine Compartment

G00422143

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

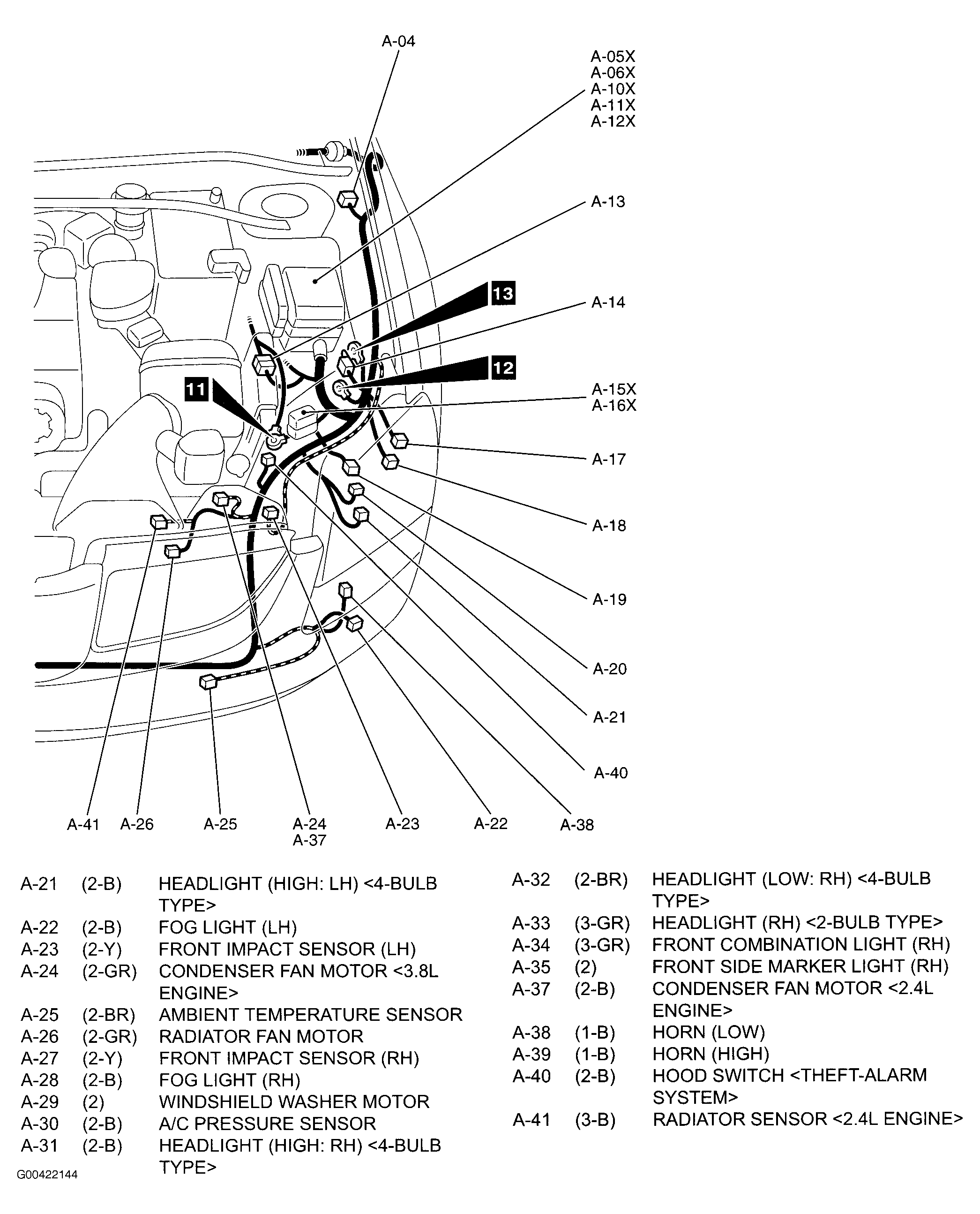

Fig 18: Left Side Of Engine Compartment

G00422144

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

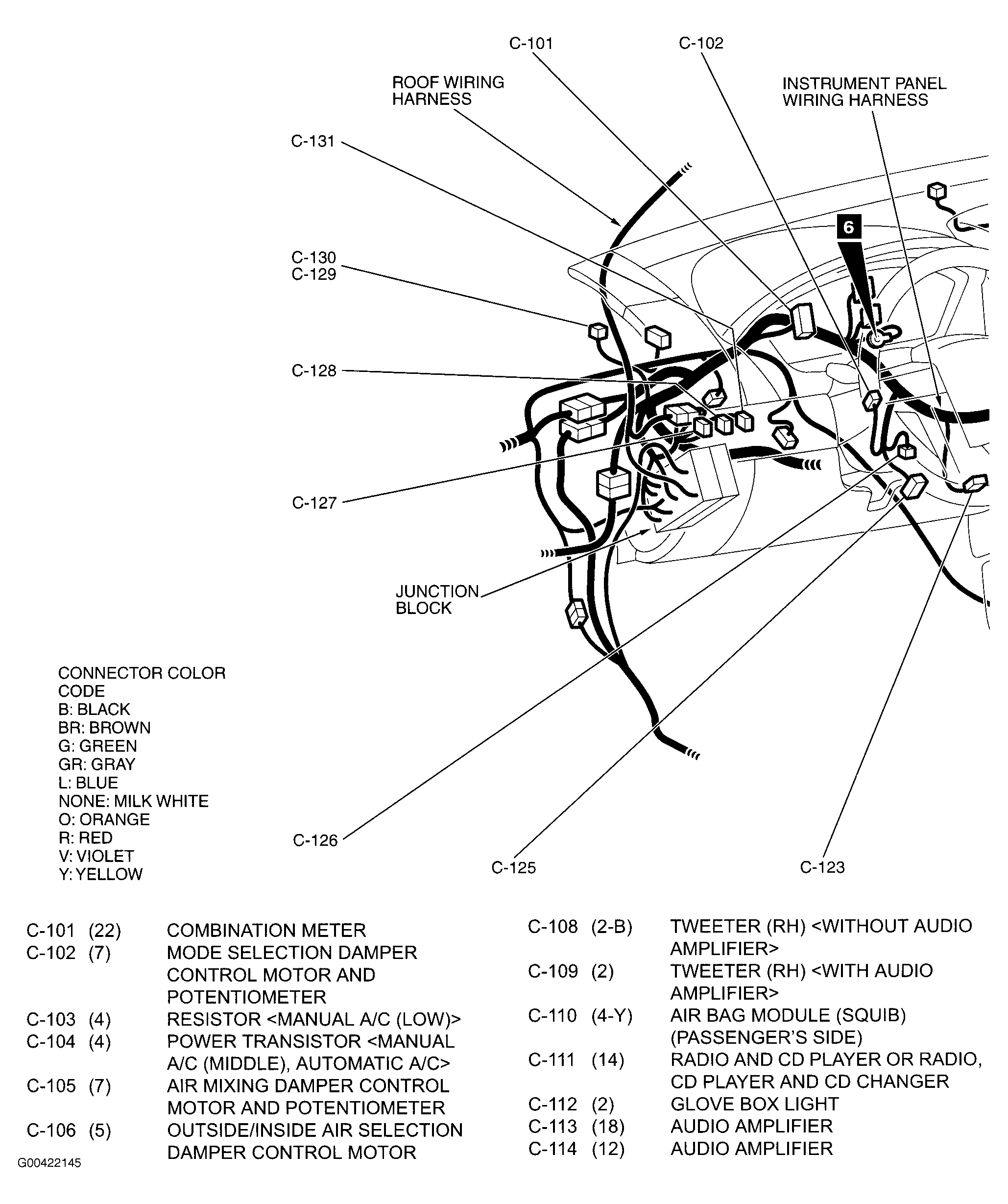

Fig 19: Left Side Of Dash

G00422145

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 20: Center Floor Console & Right Side Of Dash

G00422146

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

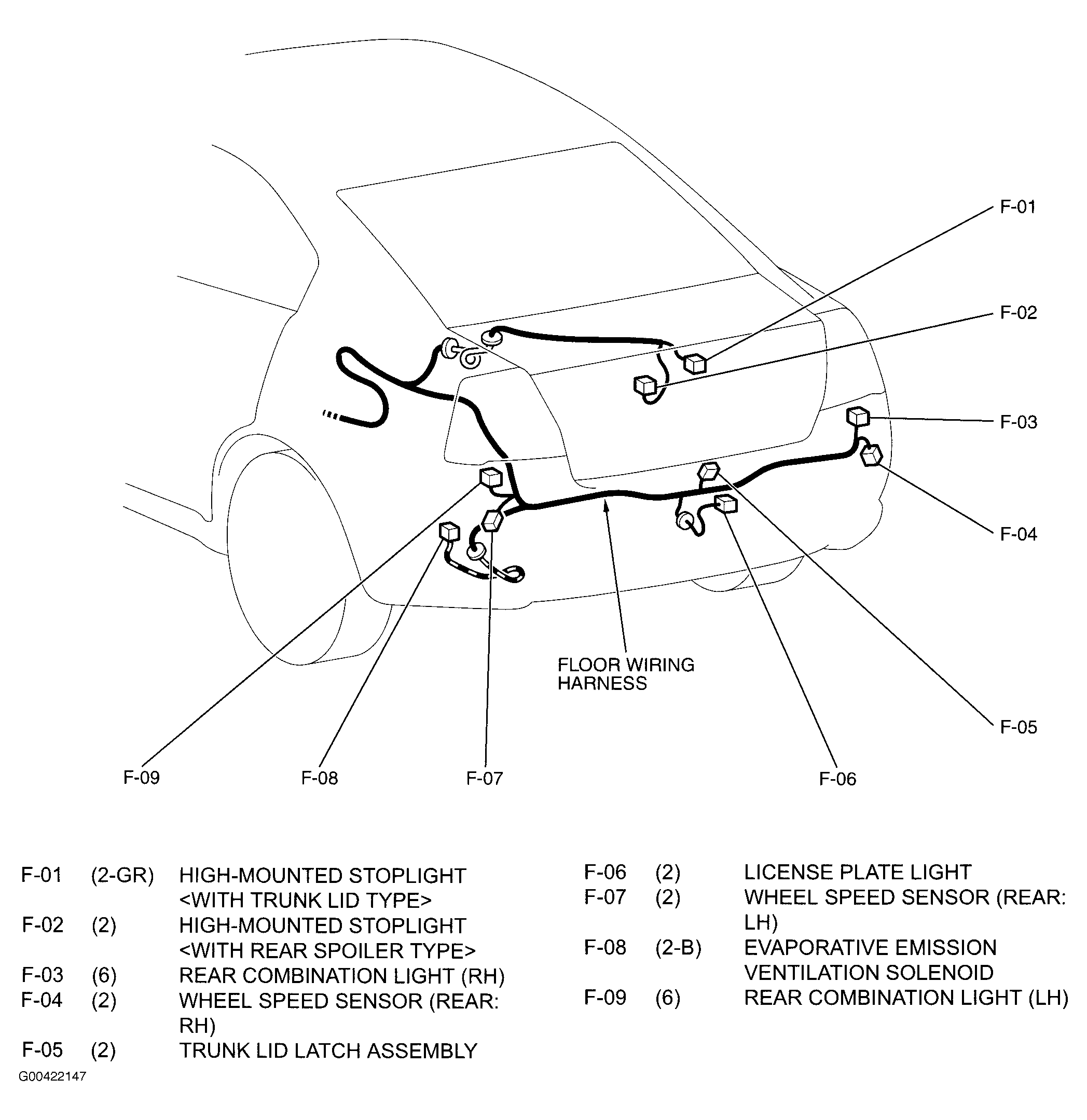

Fig 21: Rear Of Vehicle

G00422147

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

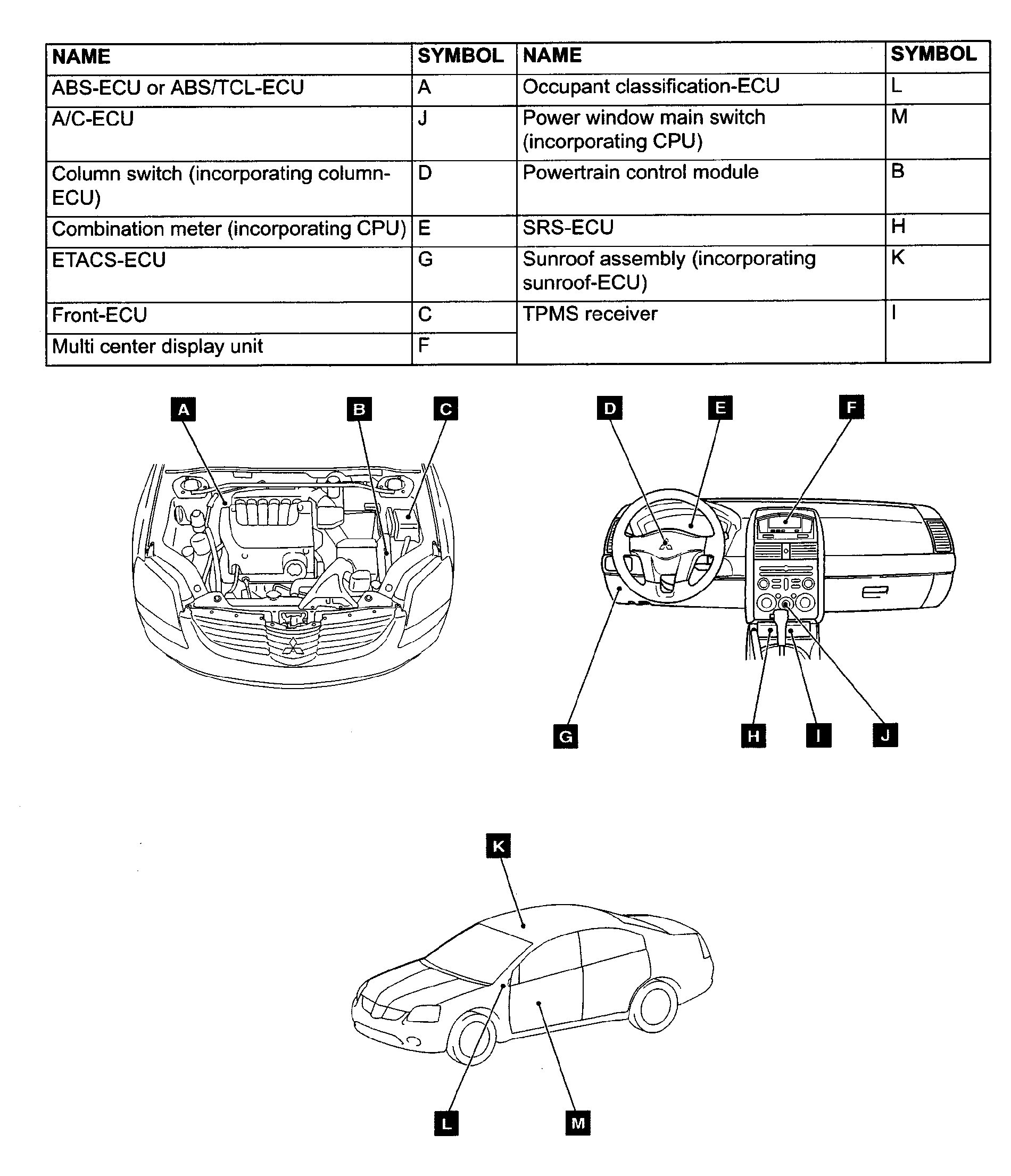

Fig 22: Control Units (1 Of 3)

G00446310

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Control Units (2 Of 3)

G00446311

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 24: Control Units (3 Of 3)

G00446312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 25: Fusible Links & IOD Or Storage Connector (1 Of 2)

G00446332

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 26: Fusible Links & IOD Or Storage Connector (2 Of 2)

G00446333

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

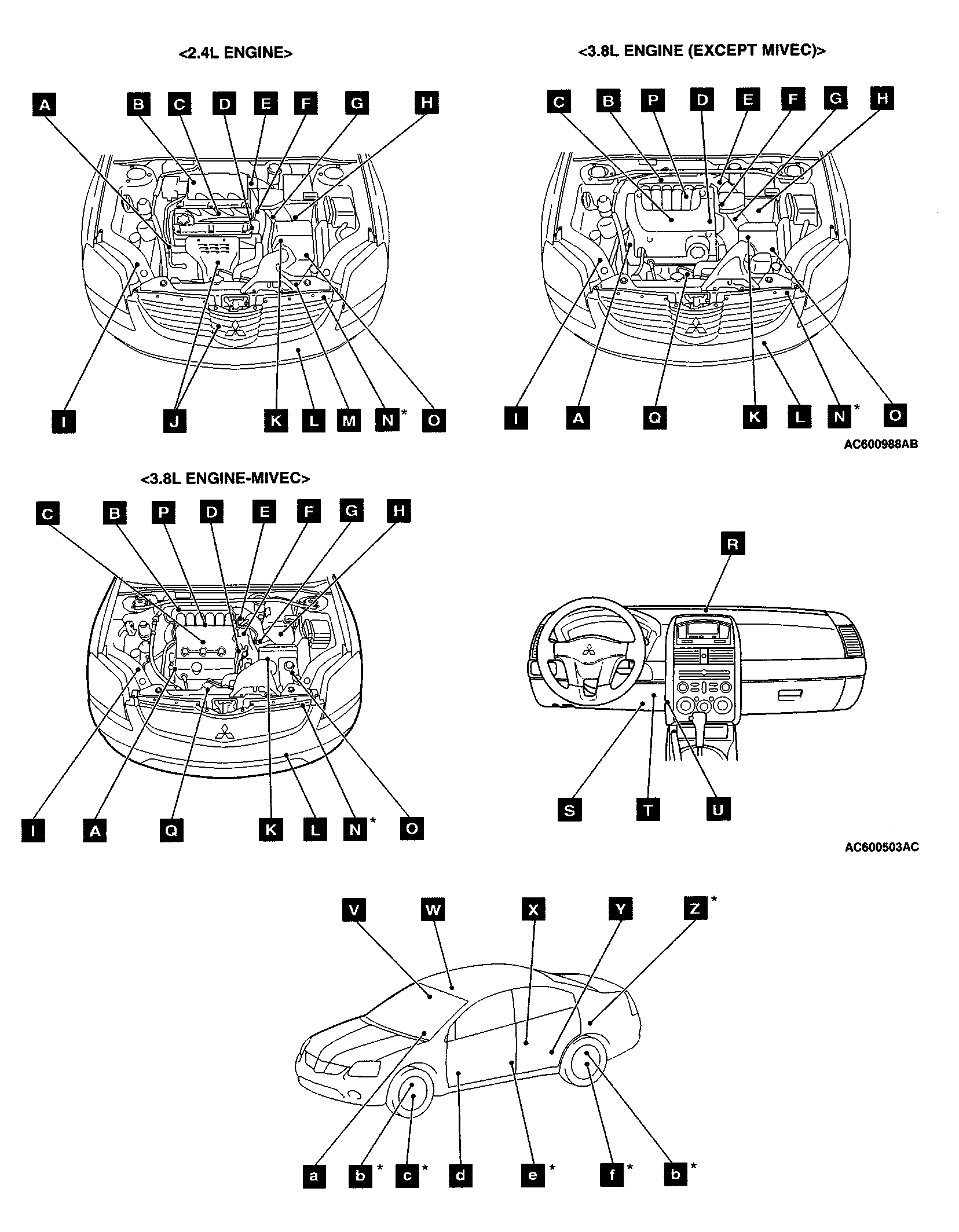

Fig 27: Sensors (1 Of 8)

G00446340

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

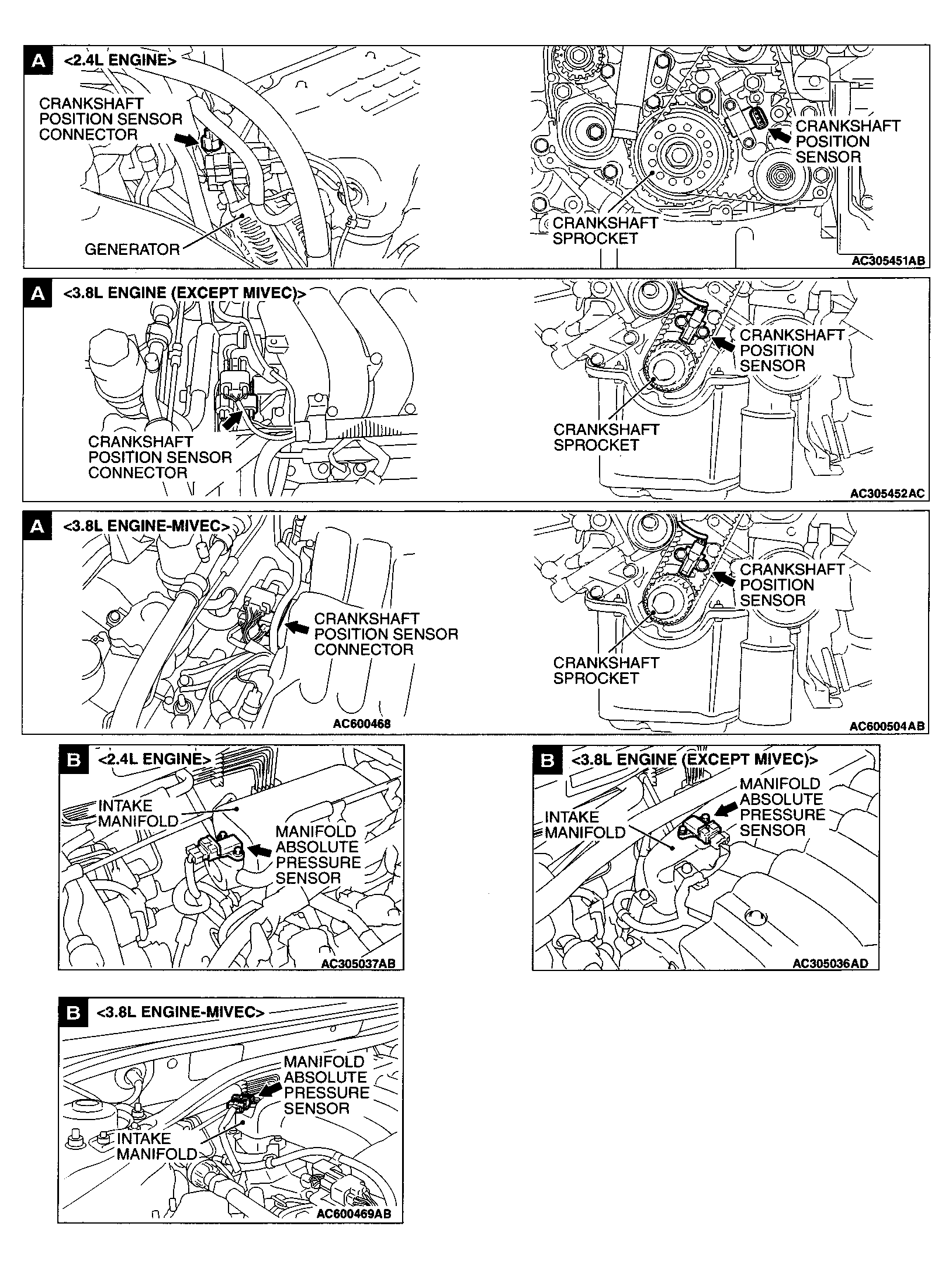

Fig 28: Sensors (2 Of 8)

G00446341

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

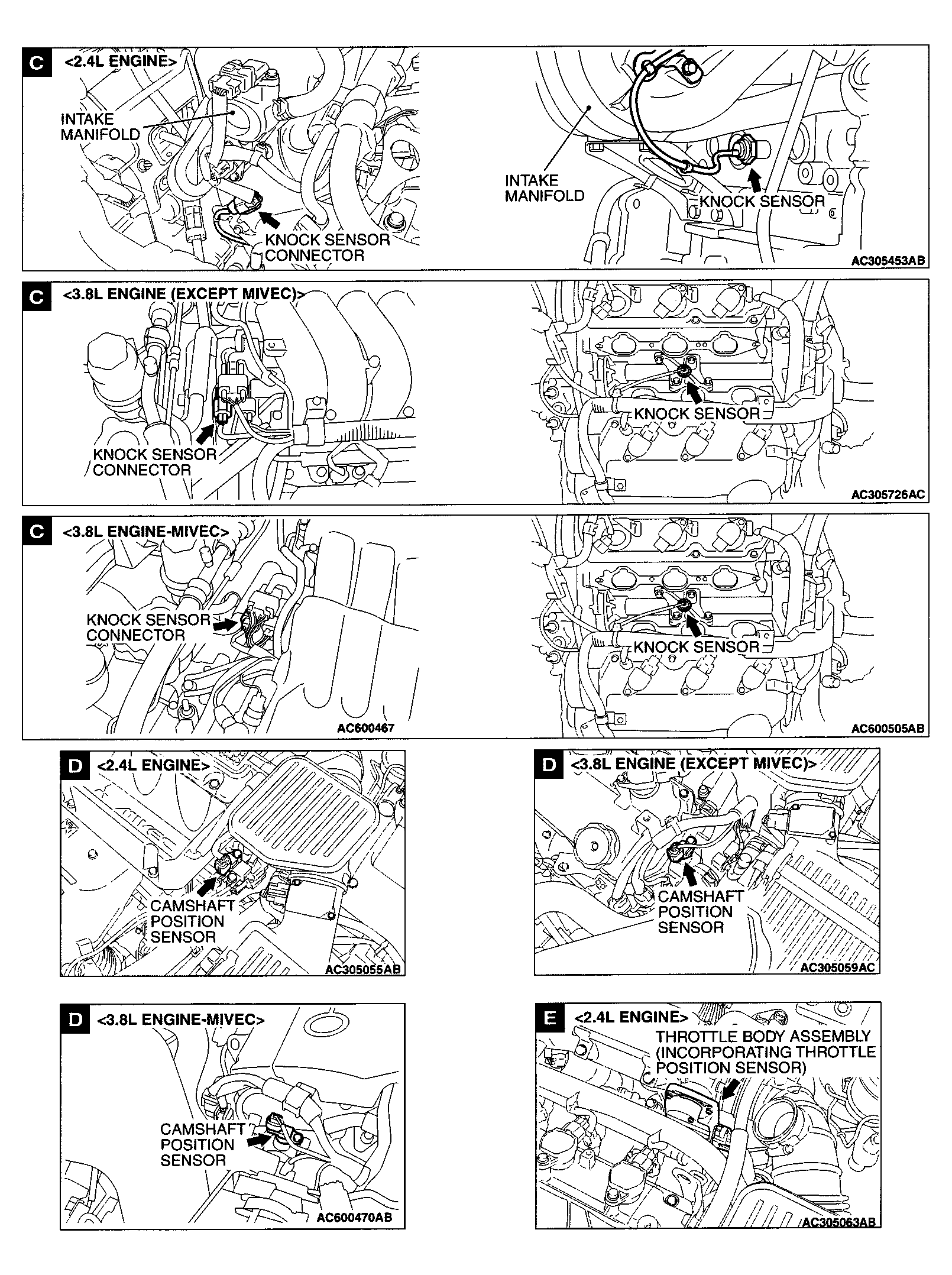

Fig 29: Sensors (3 Of 8)

G00446342

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

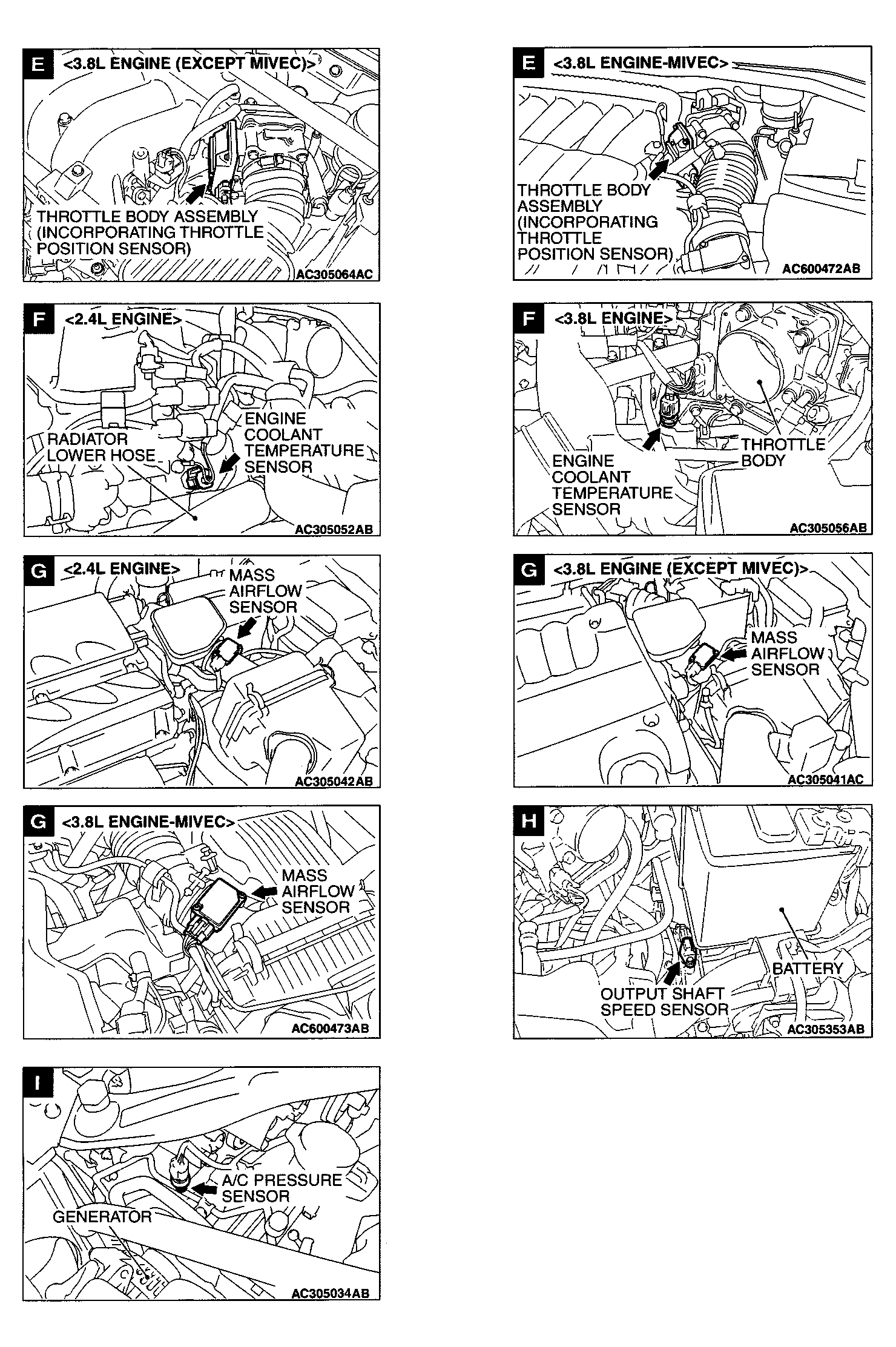

Fig 30: Sensors (4 Of 8)

G00446343

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

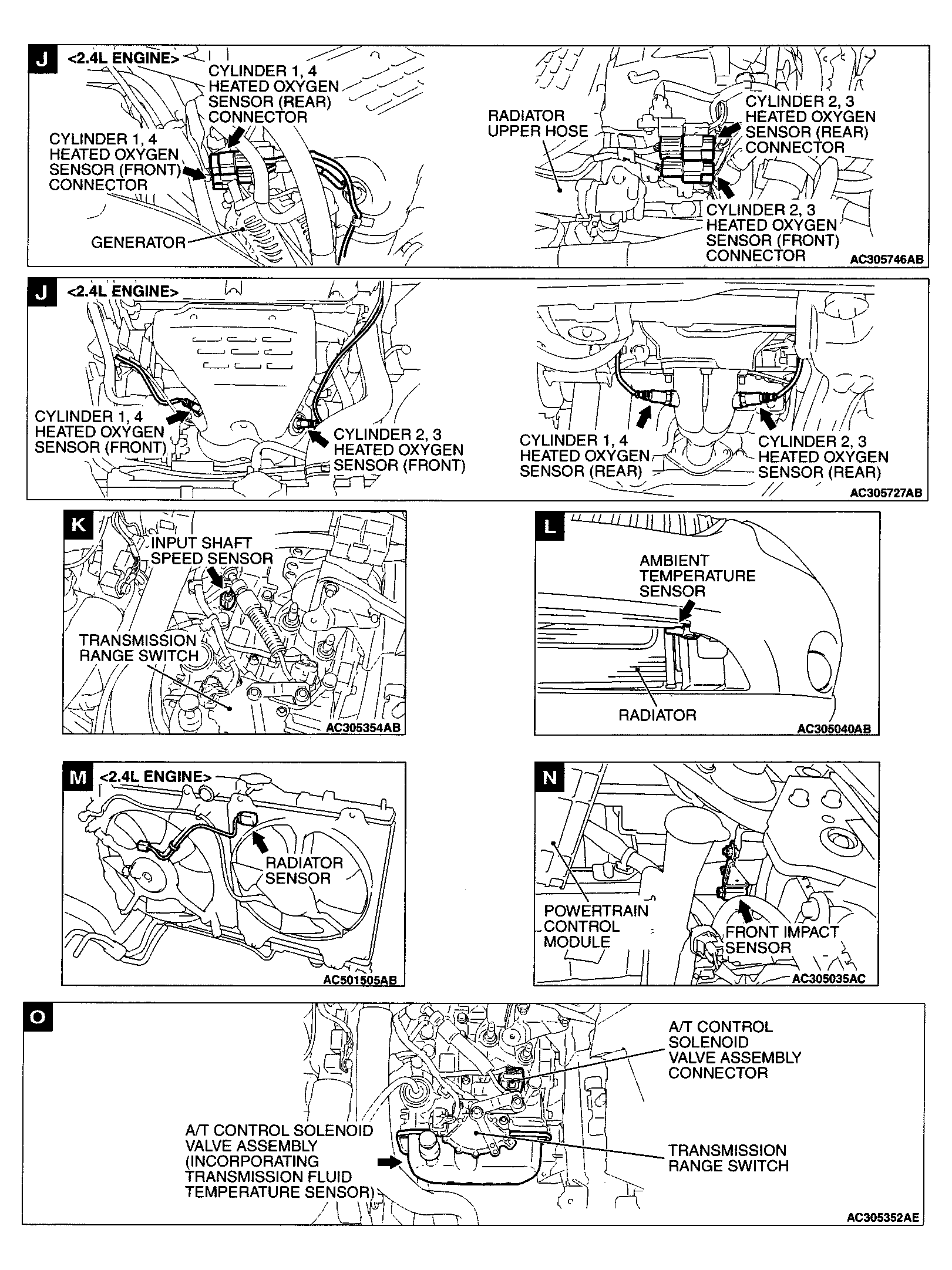

Fig 31: Sensors (5 Of 8)

G00446344

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 32: Sensors (6 Of 8)

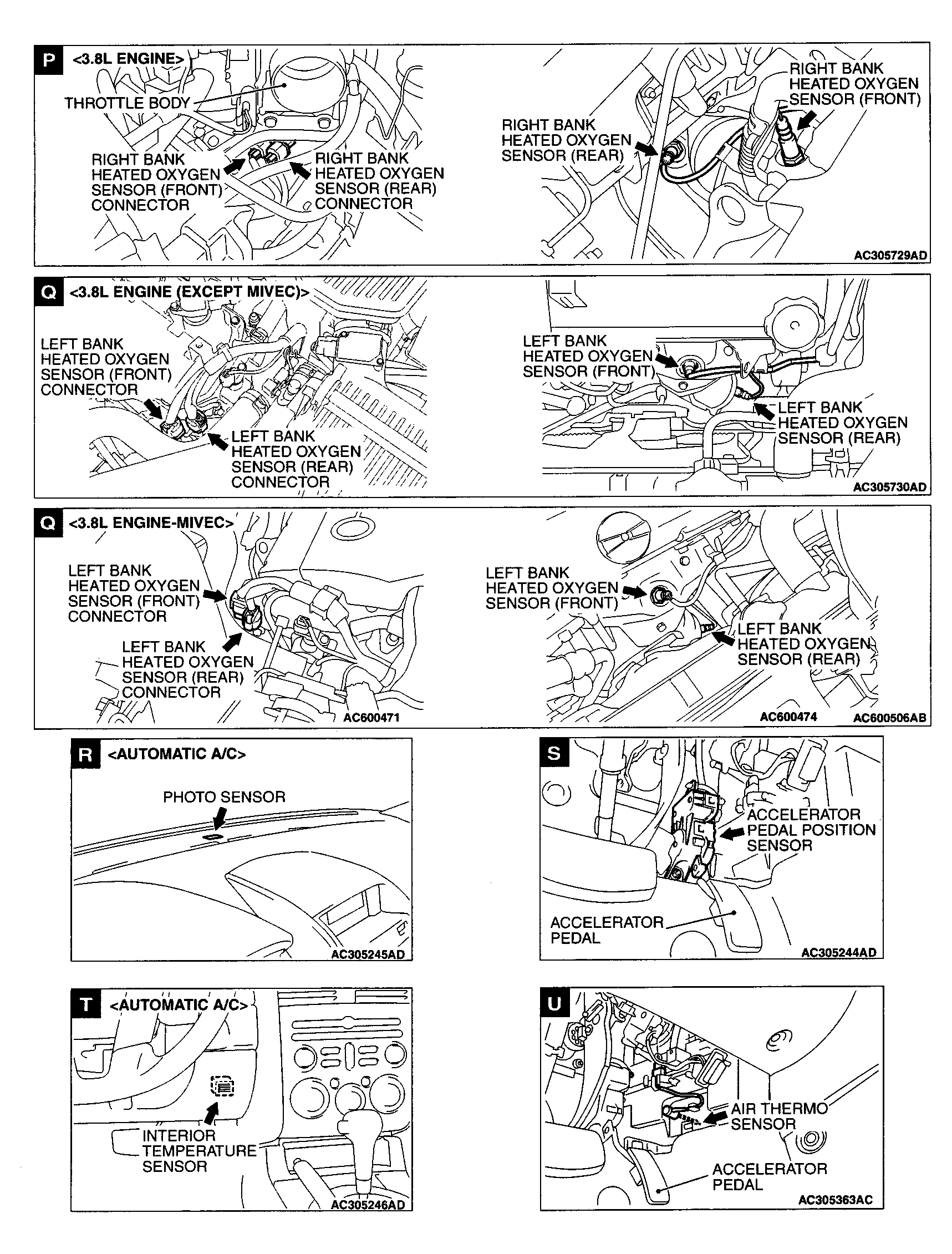

G00446345

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

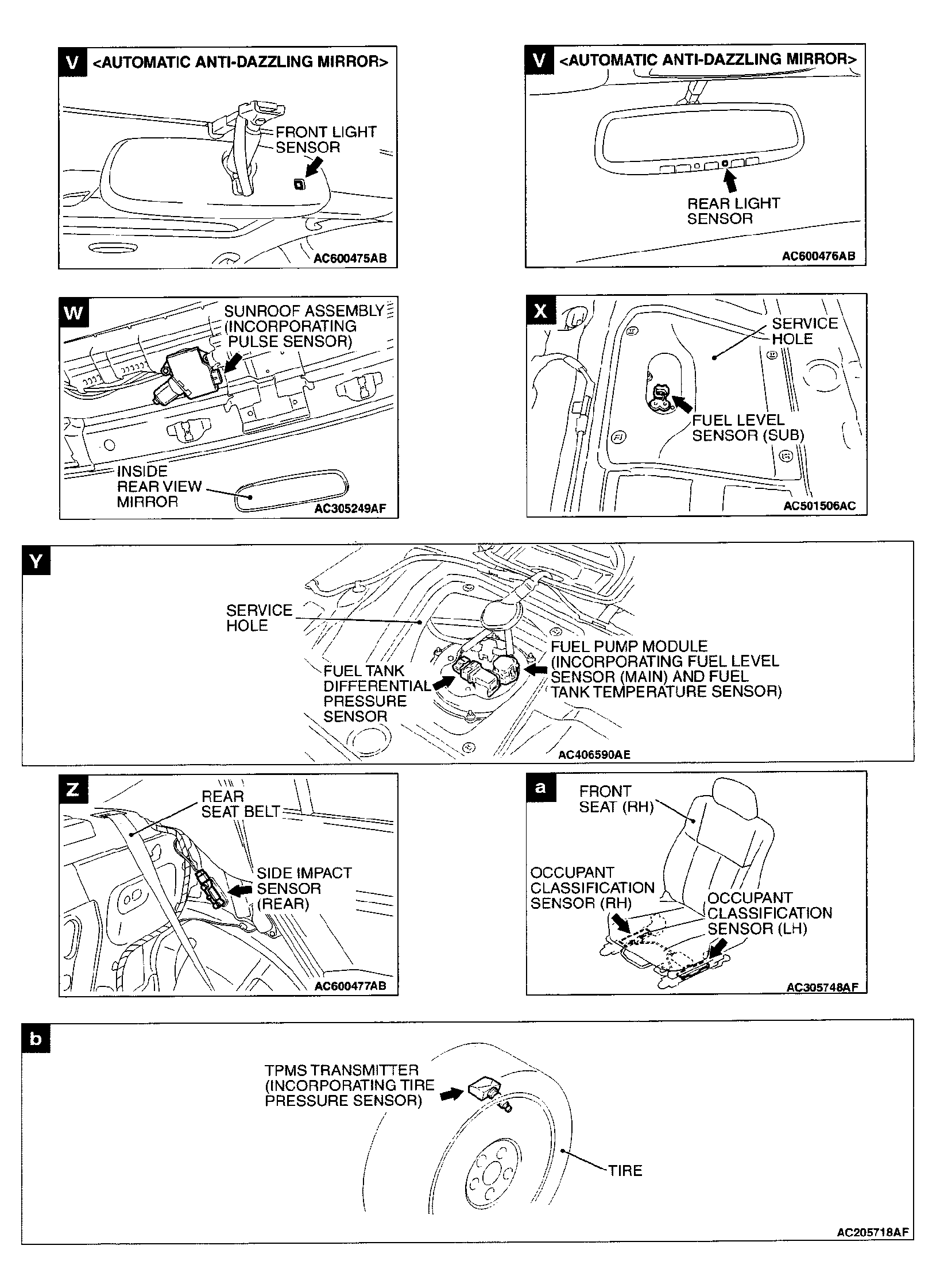

Fig 33: Sensors (7 Of 8)

G00446346

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

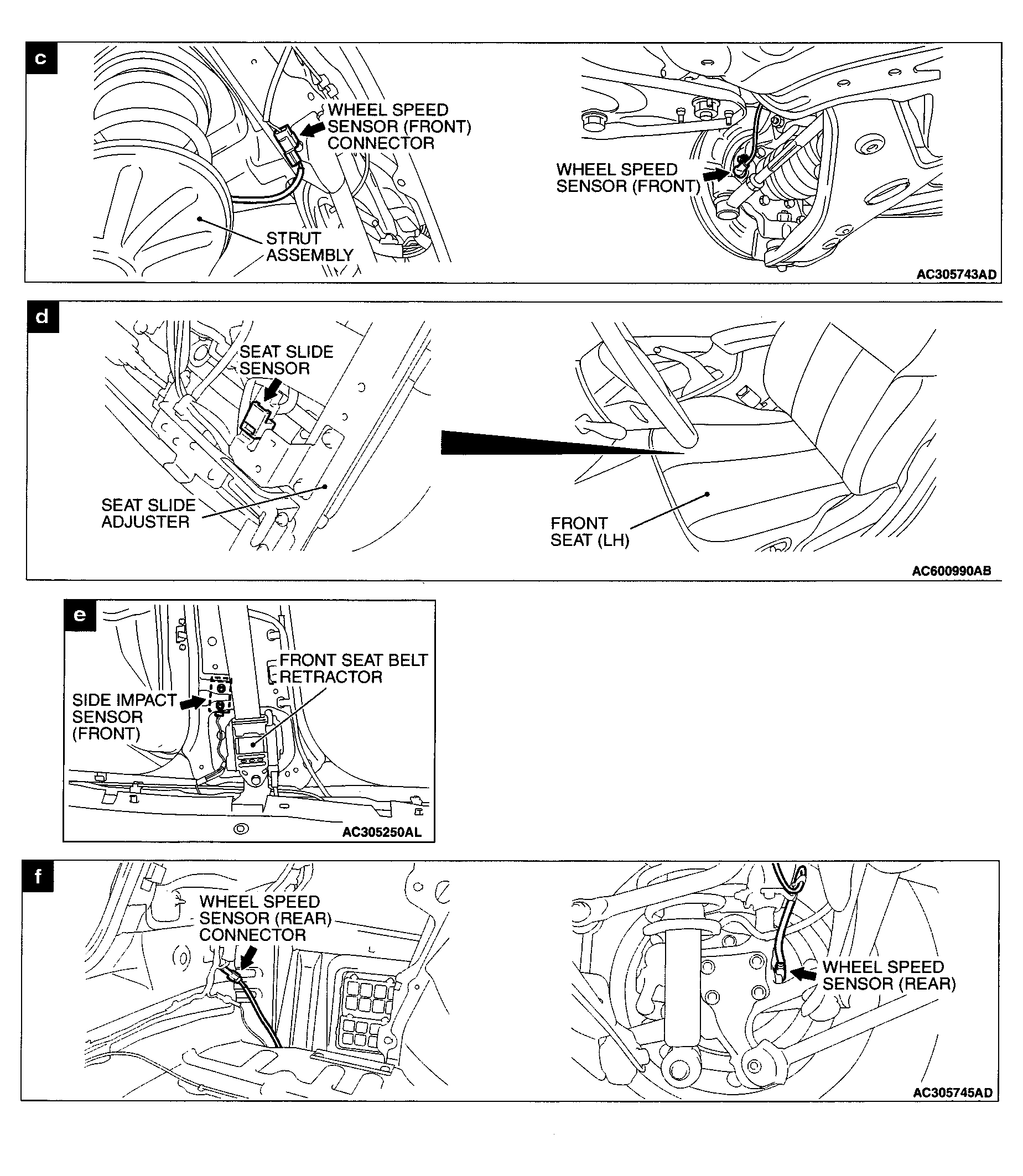

Fig 34: Sensors (8 Of 8)

G00446347

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 35: Left Side Of Dash

G00270604

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

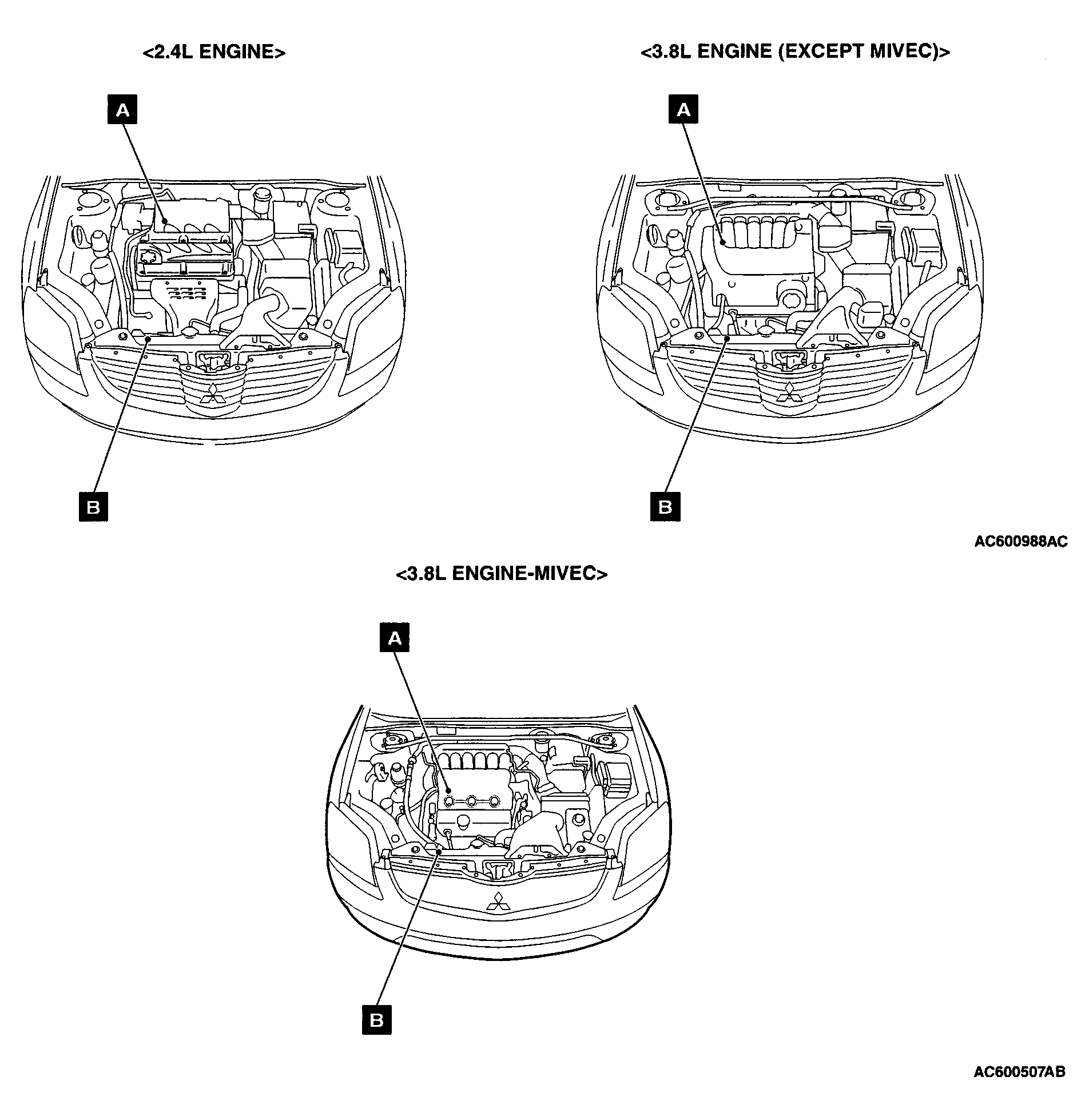

Fig 36: Engine Compartment (1 Of 2)

G00446348

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 37: Engine Compartment (2 Of 2)

G00446349

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

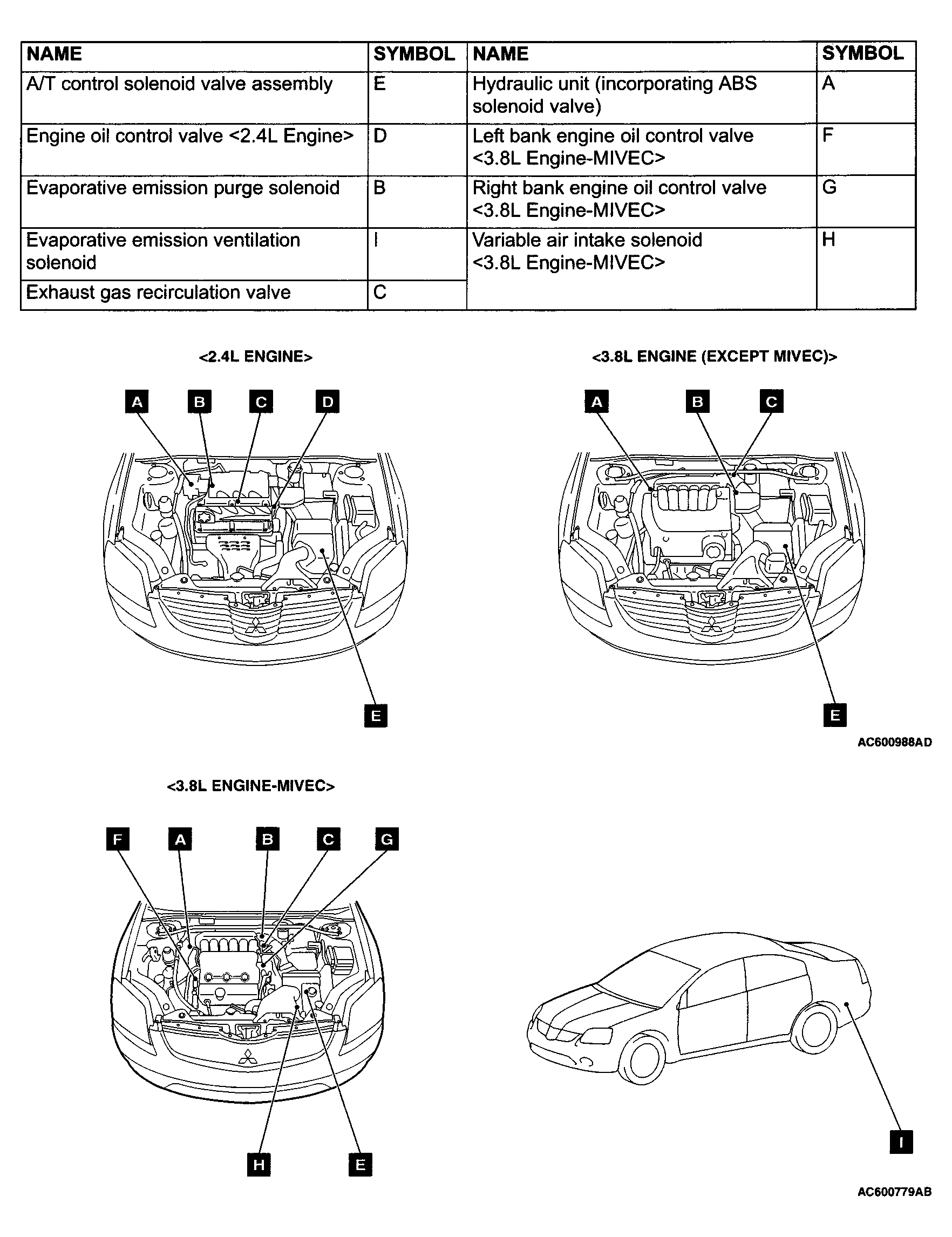

Fig 38: Solenoids & Solenoid Valves (1 Of 3)

G00446350

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

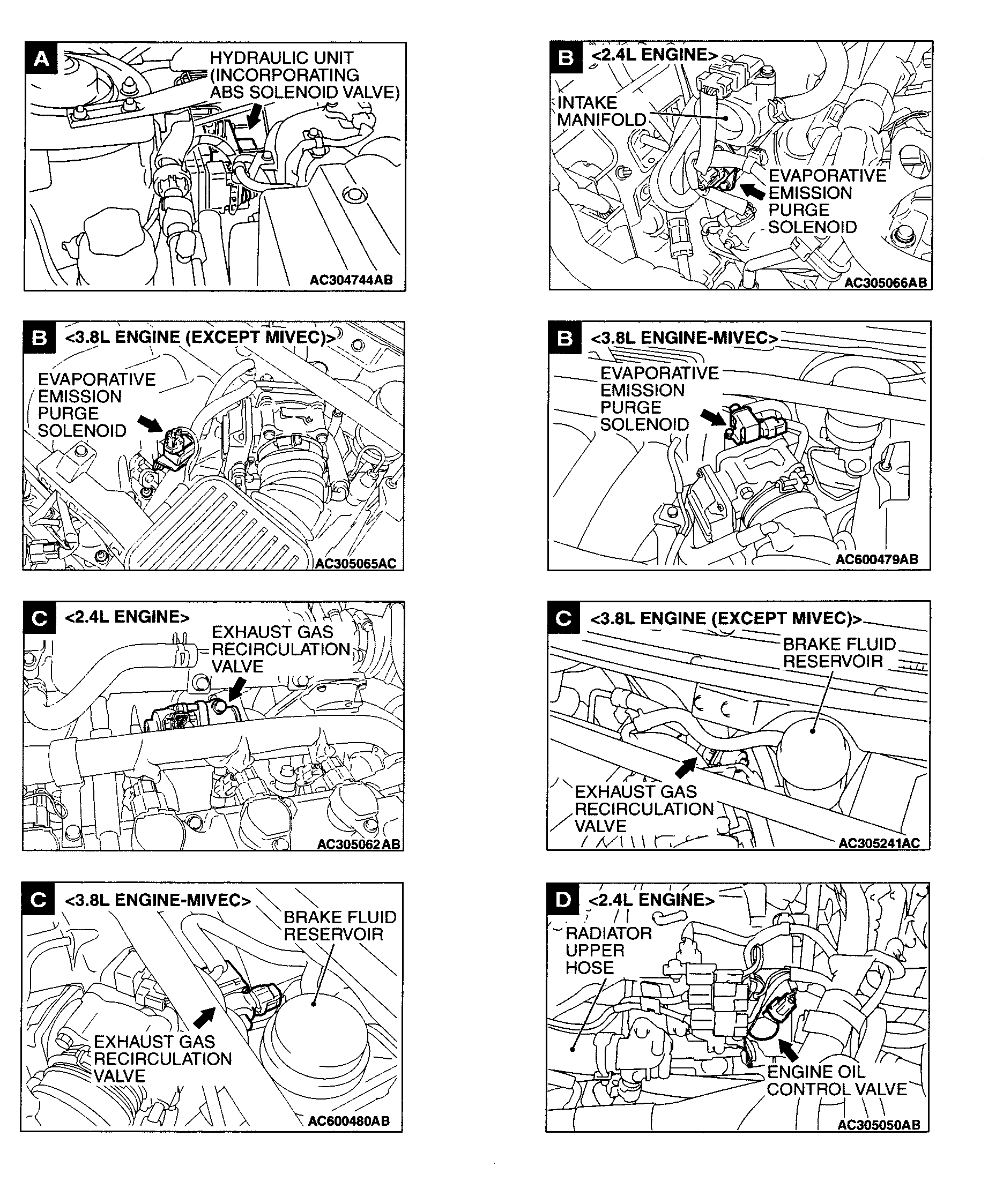

Fig 39: Solenoids & Solenoid Valves (2 Of 3)

G00446351

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

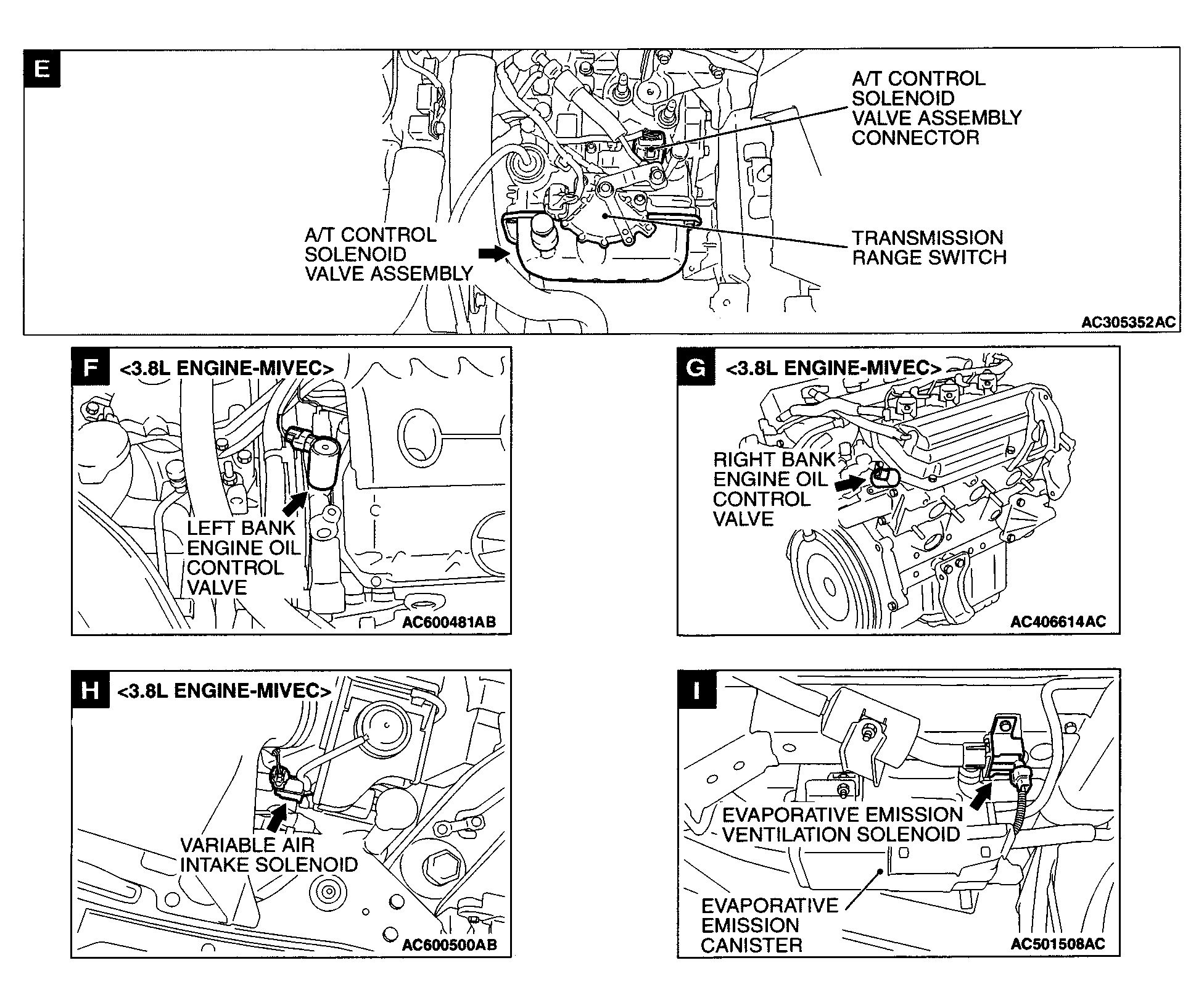

Fig 40: Solenoids & Solenoid Valves (3 Of 3)

G00446352

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

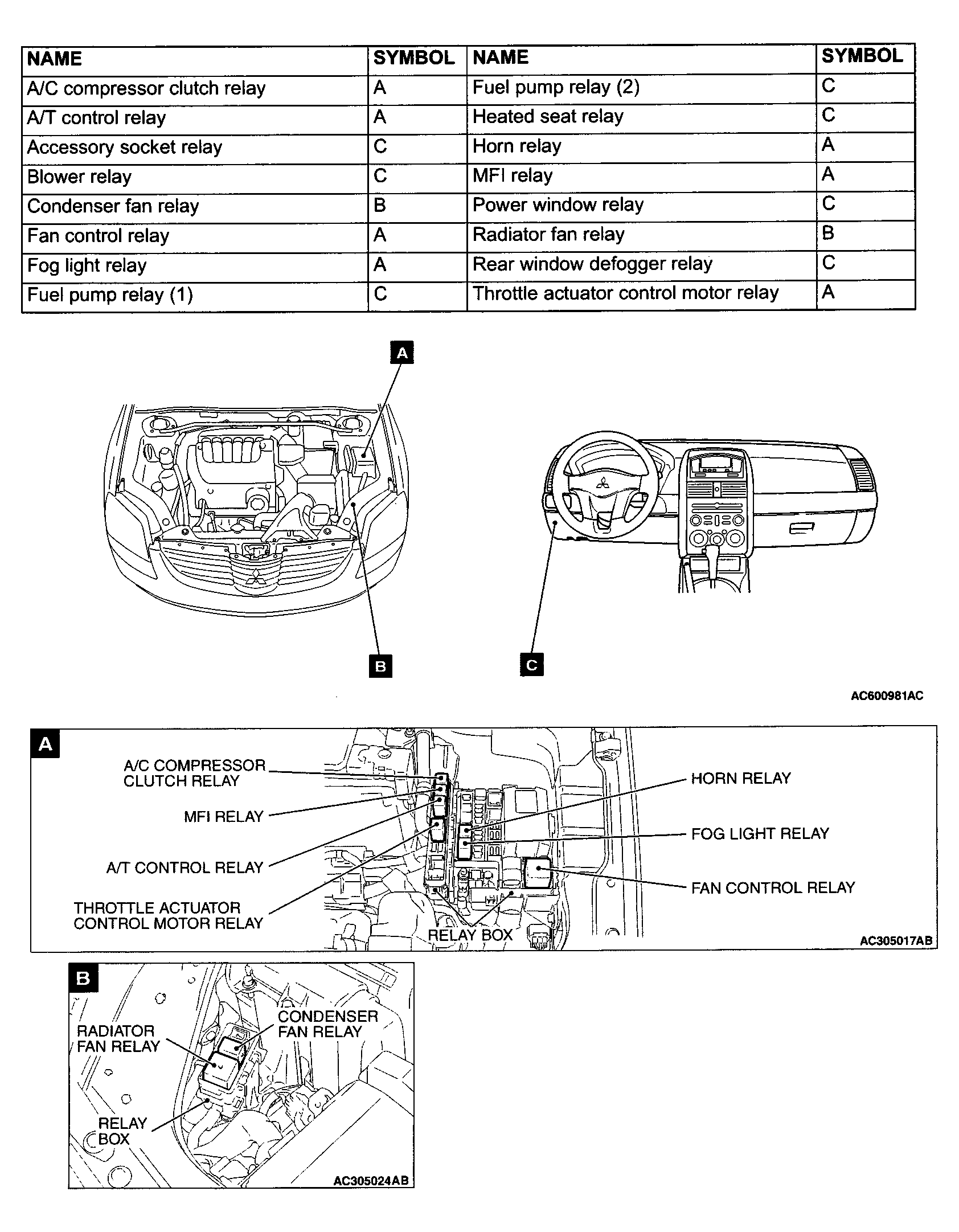

Fig 41: Relays (1 Of 2)

G00446338

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

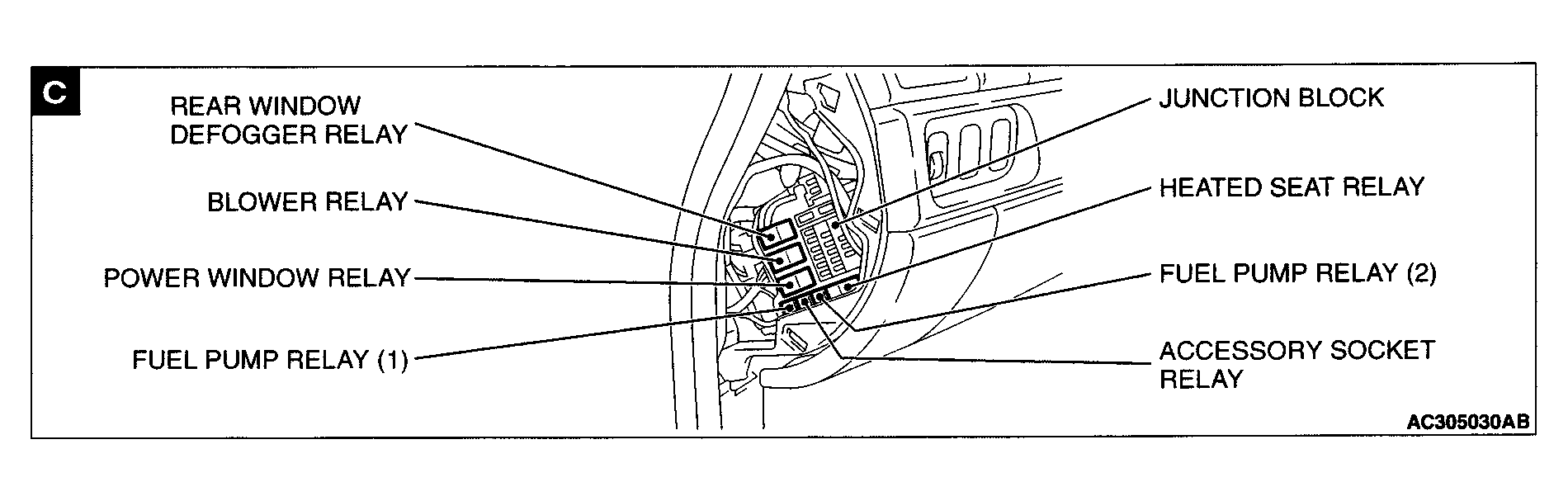

Fig 42: Relays (2 Of 2)

G00446339

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

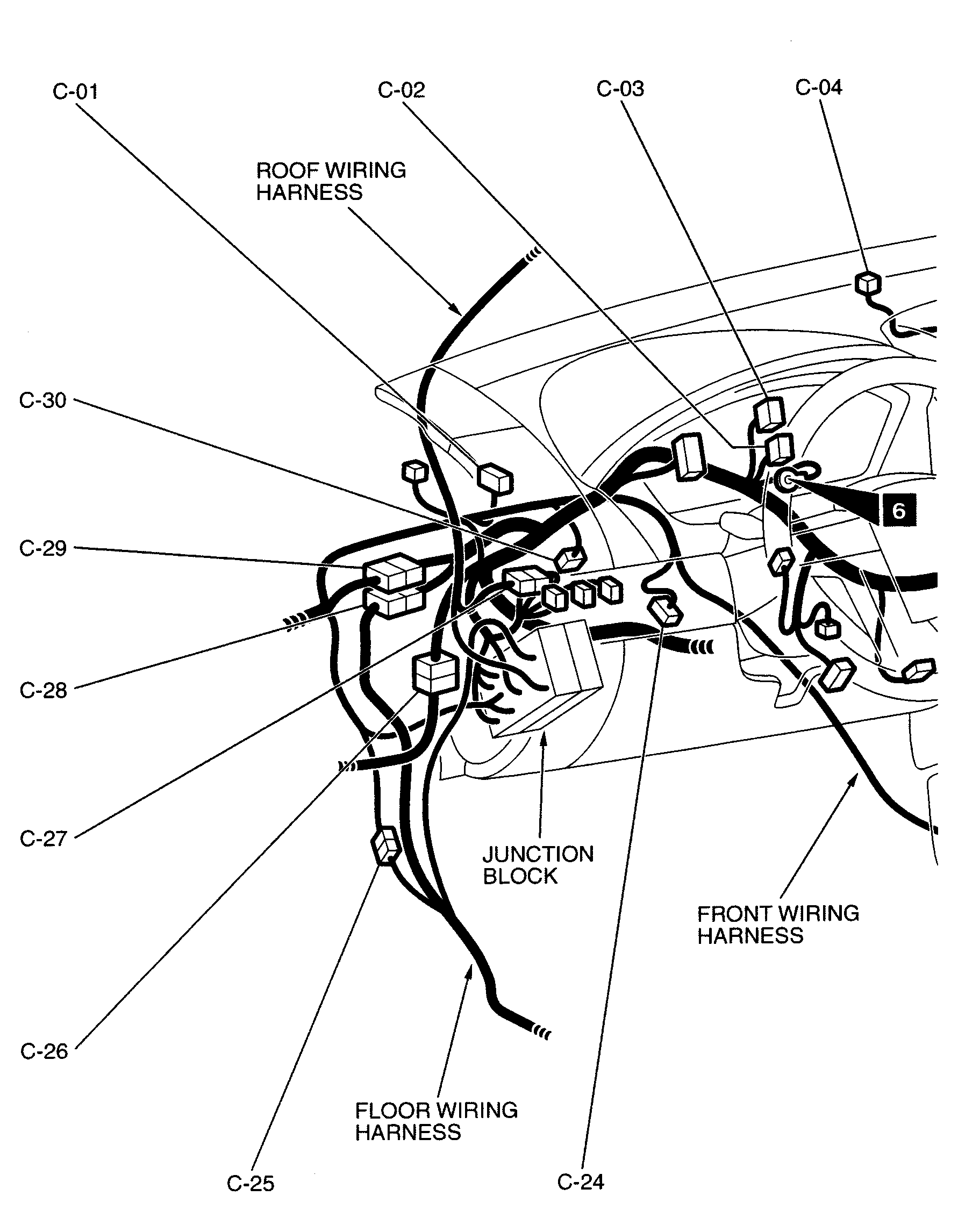

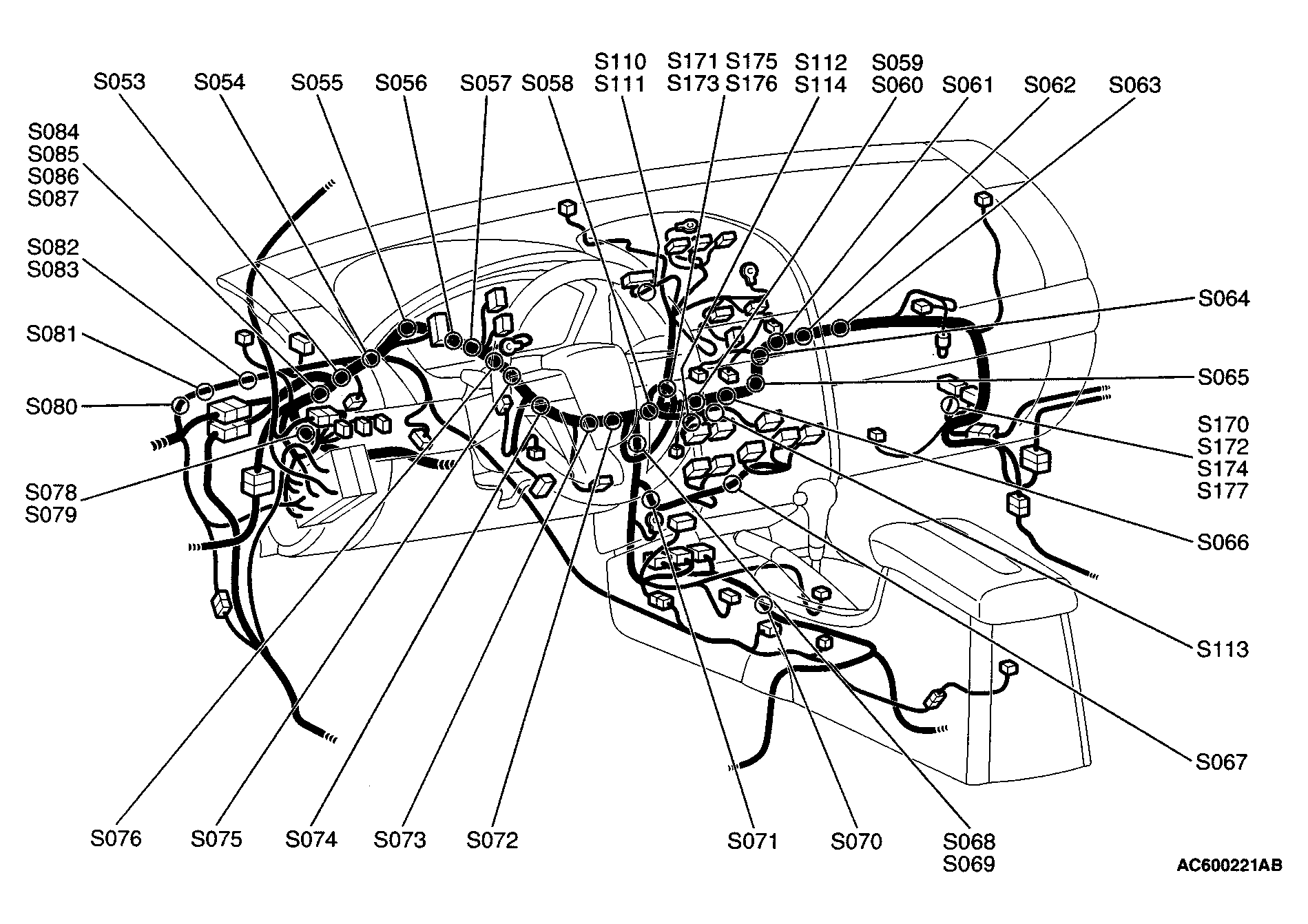

Fig 43: Dash & Center Floor Console (1 Of 2)

G00446353

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

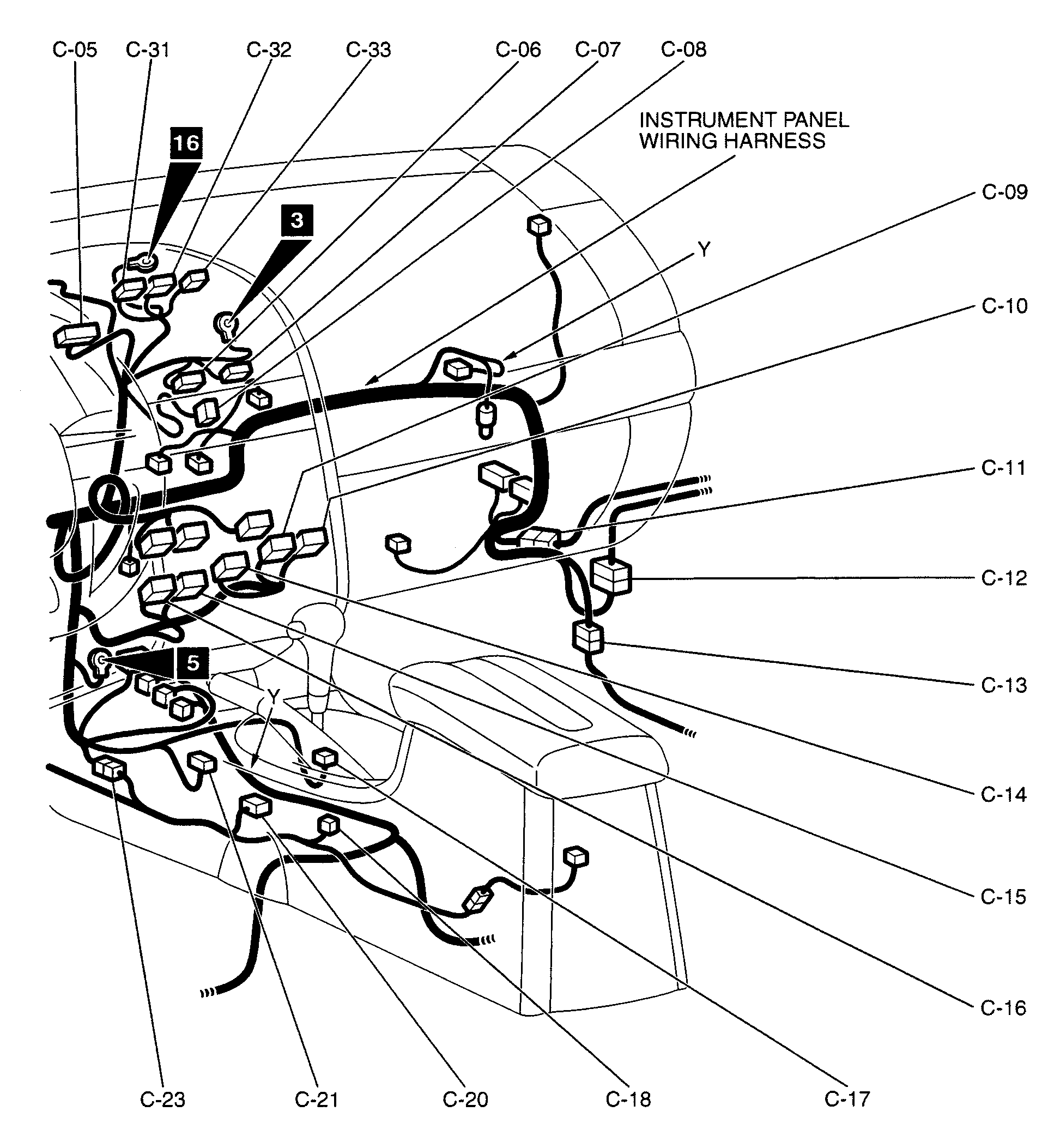

Fig 44: Dash & Center Floor Console (2 Of 2)

G00446354

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

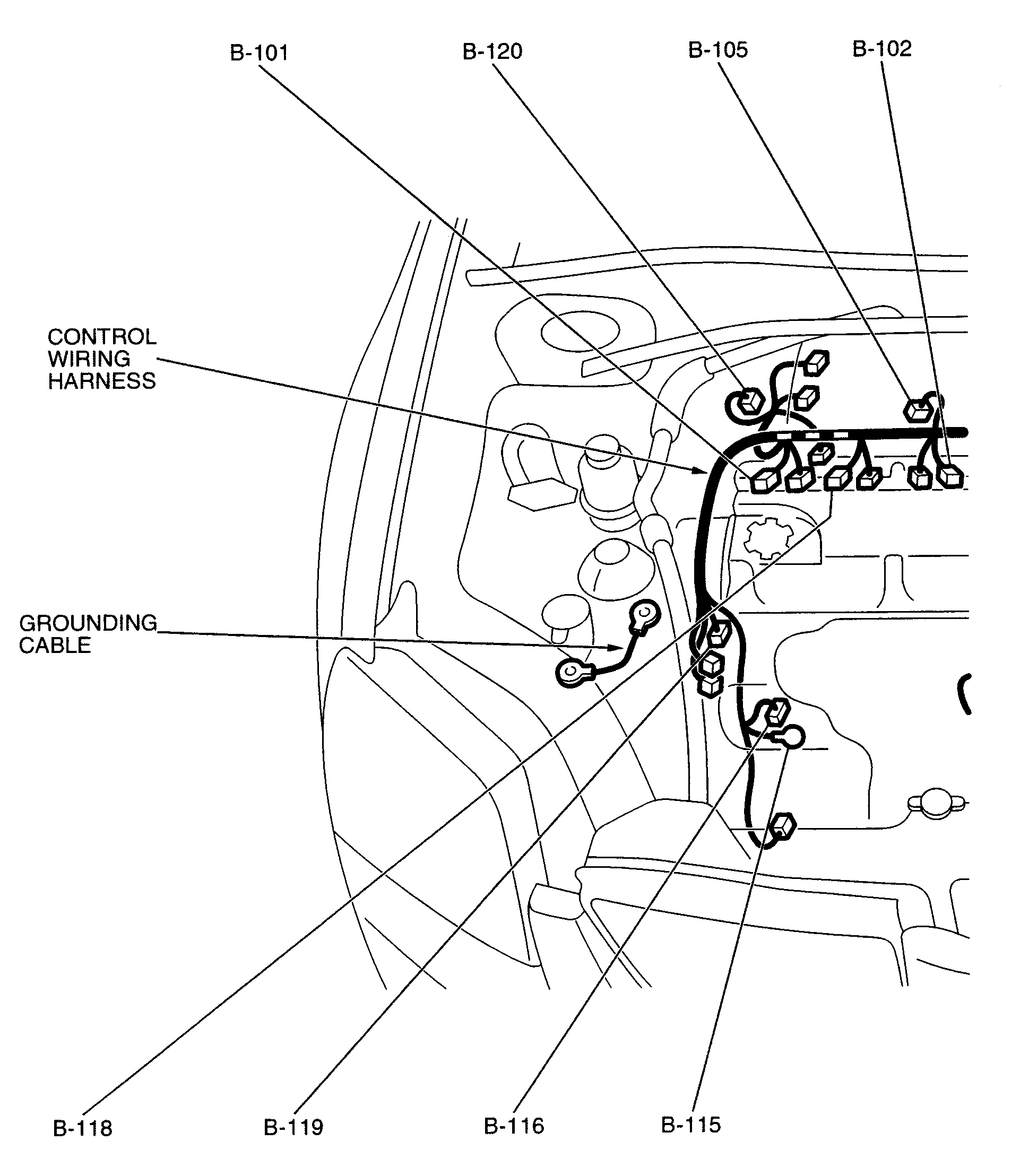

Fig 45: Engine & Transaxle (2.4L) (1 Of 2)

G00446356

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

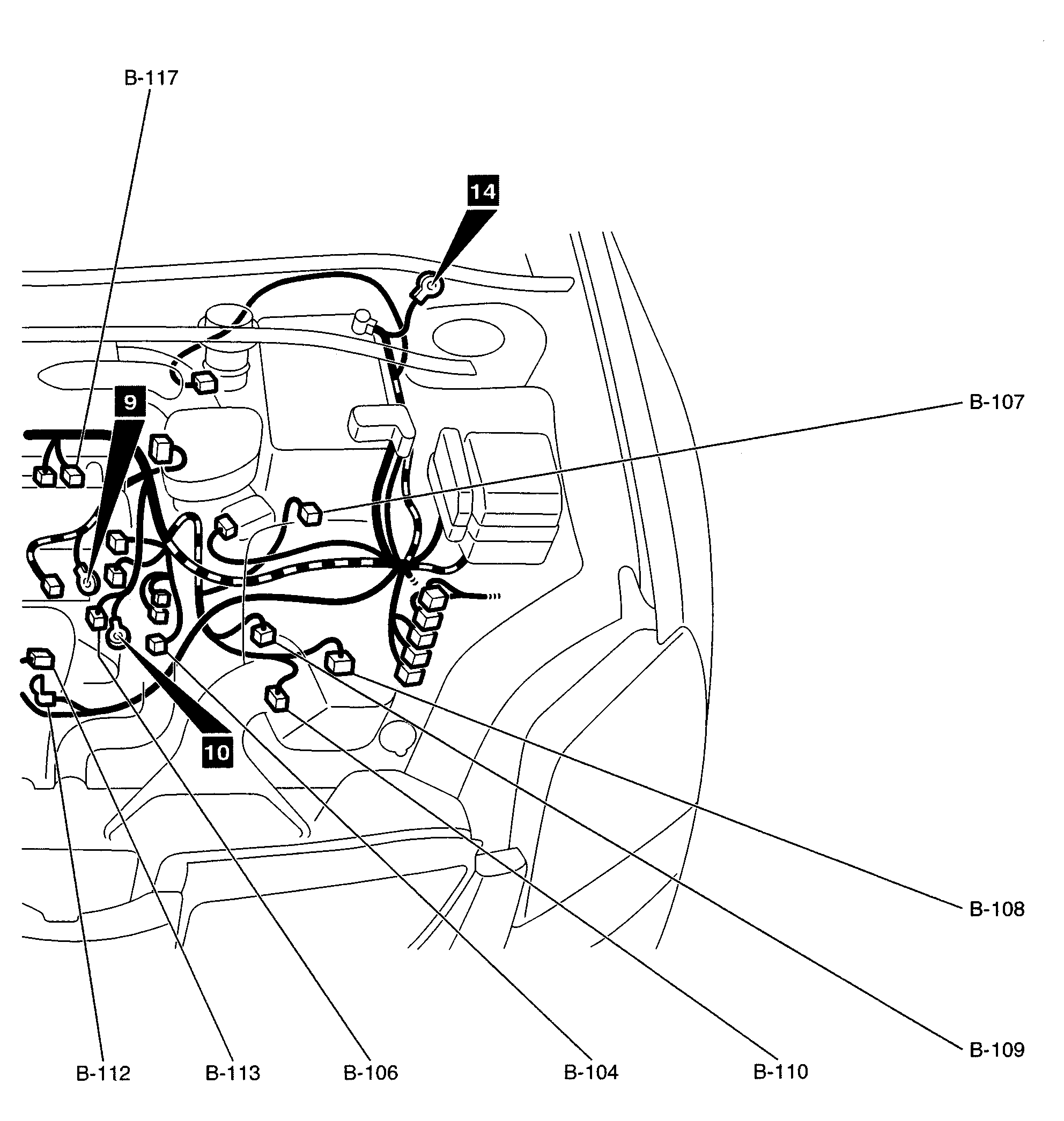

Fig 46: Engine & Transaxle (2.4L) (2 Of 2)

G00446357

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

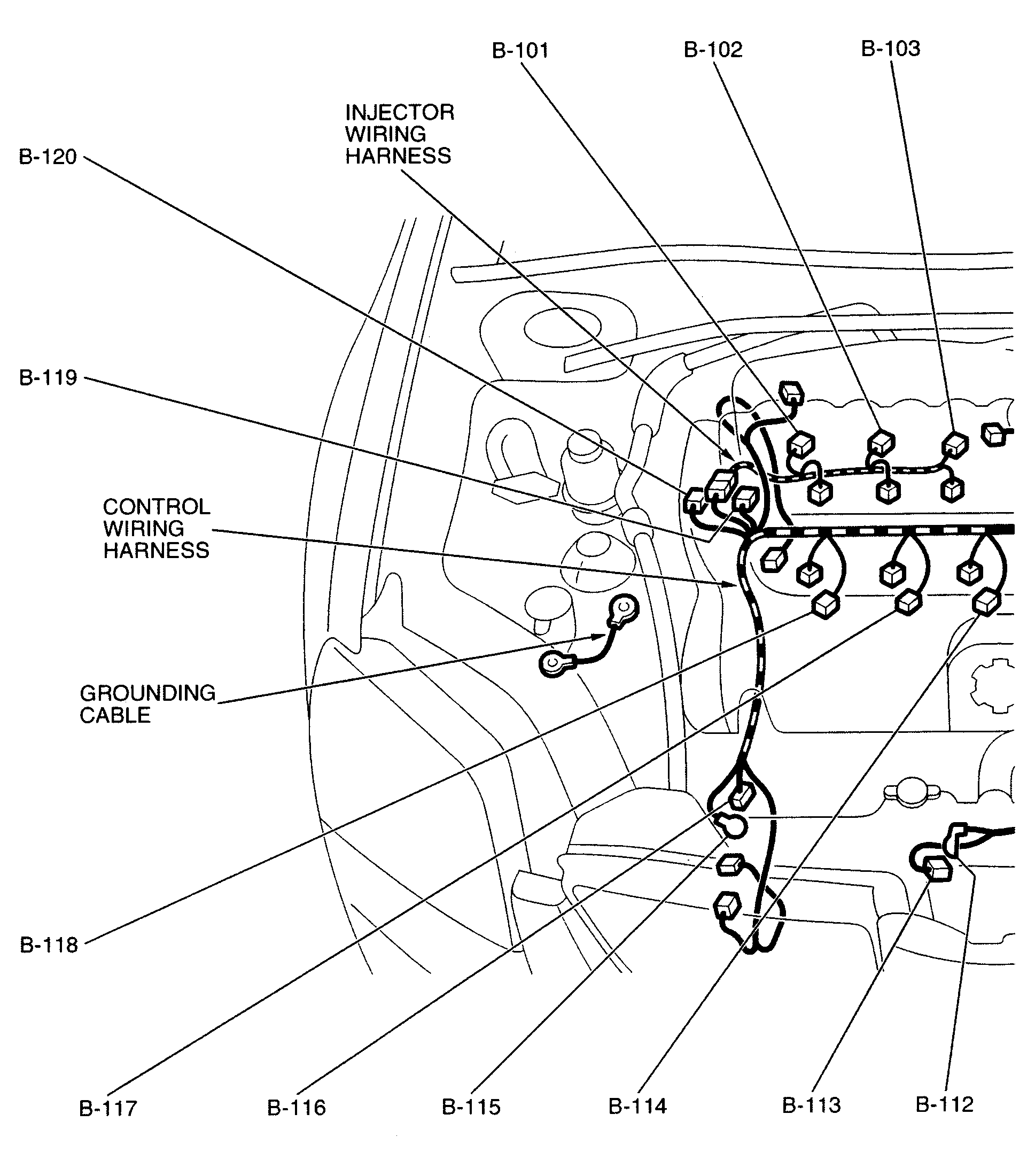

Fig 47: Engine (3.8L)

G00446358

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

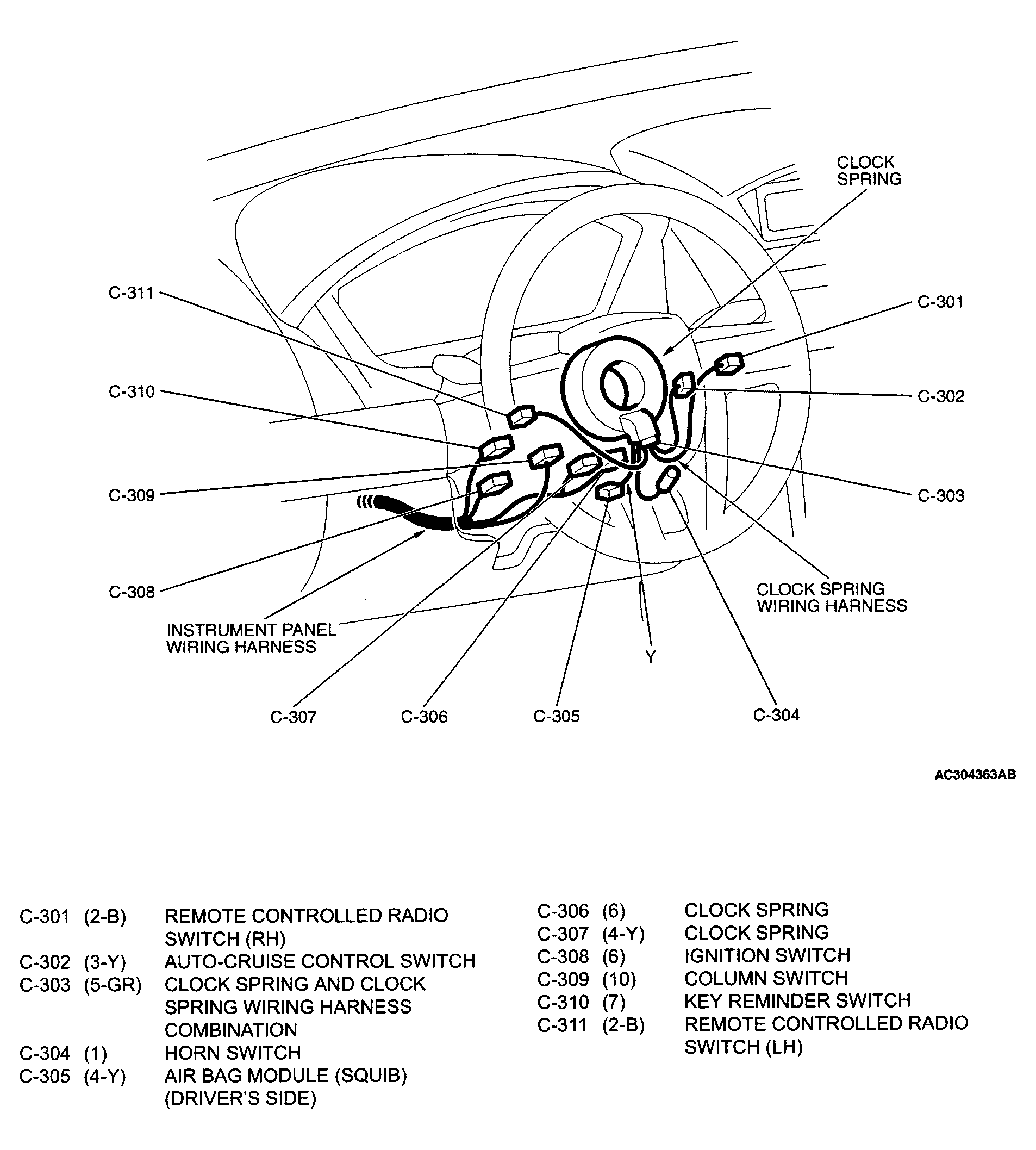

Fig 48: Steering Column

G00446360

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

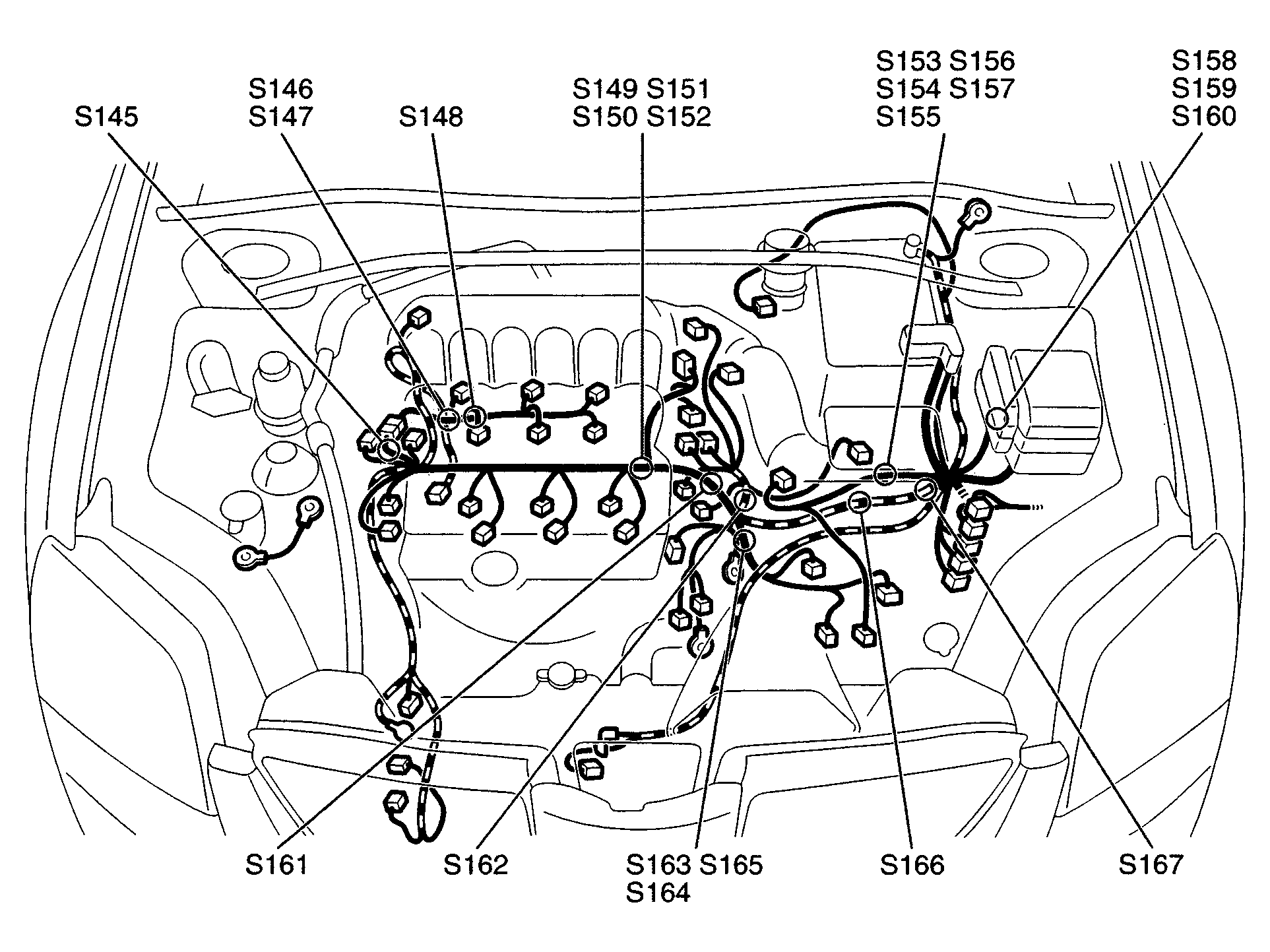

Fig 49: Engine (3.8L MIVEC)

G00446365

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
