Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

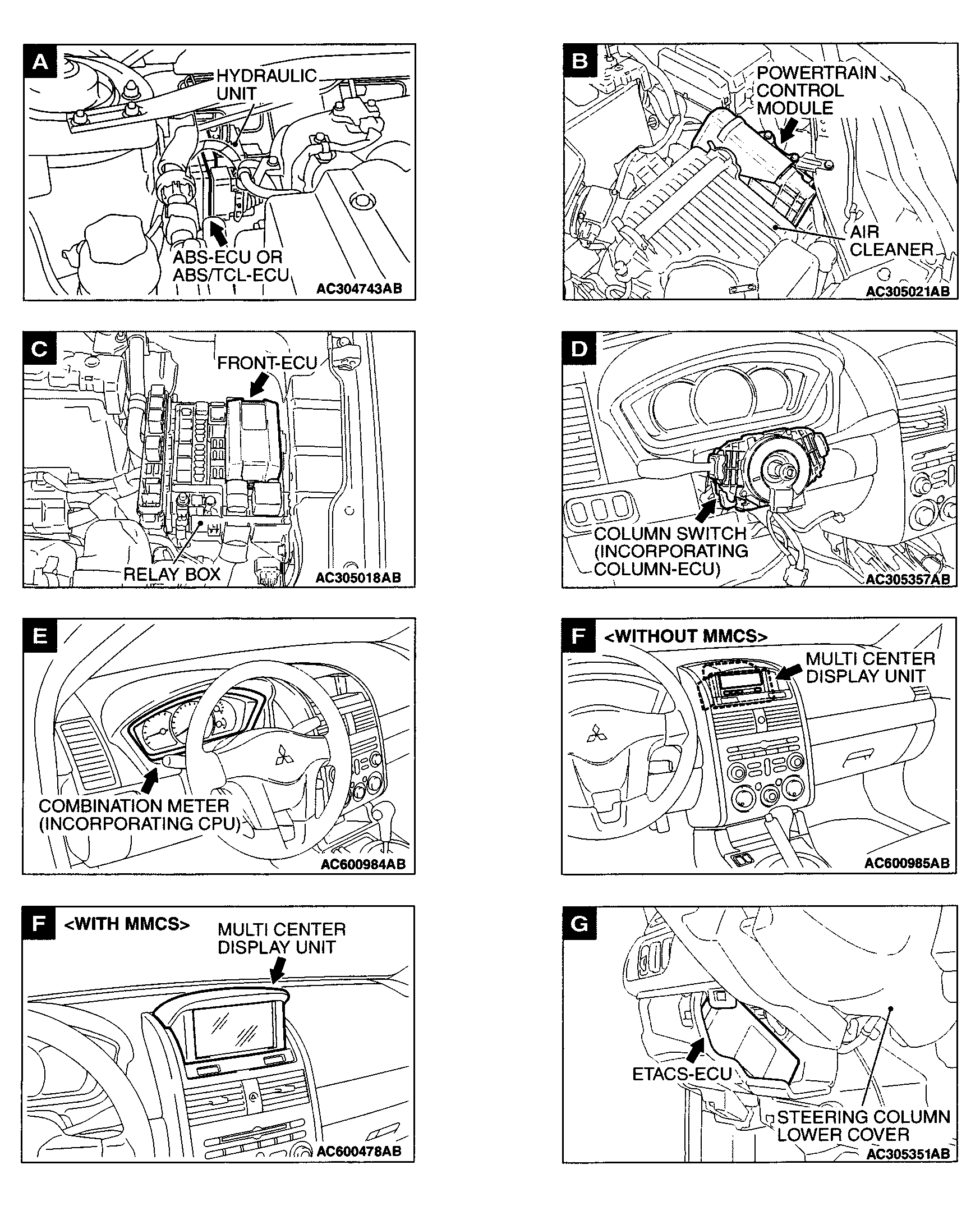

| ABS-ECU | Right rear corner of engine compartment. See Figure. |
| ABS/TCL-ECU | Right rear corner of engine compartment. See Figure. |
| A/C-ECU | Behind lower center of dash. See Figure. |

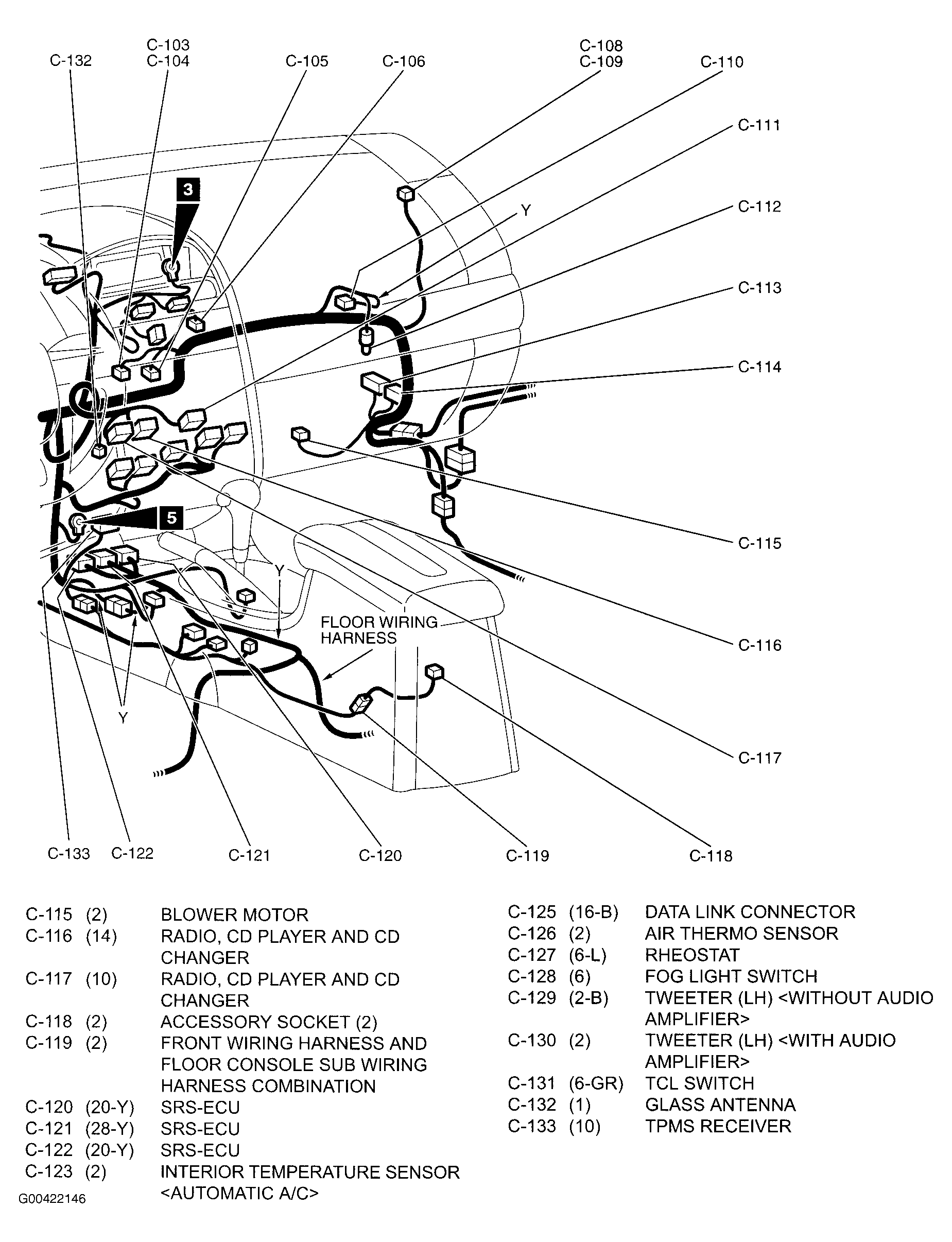

| Air Bag Module (Squib) (Passenger's Side) (C-110) | Behind right side of dash. See Figure. |
| Column-ECU | Top of steering column. See Figure. |
| CPU (Combination Meter) | Behind instrument cluster. See Figure. |
| CPU (Power Window Main Switch) | In driver's door. See Figure. |
| ETACS-ECU | Under left end of dash. See Figure. |
| Front-ECU | On engine compartment relay box. See Figure. |

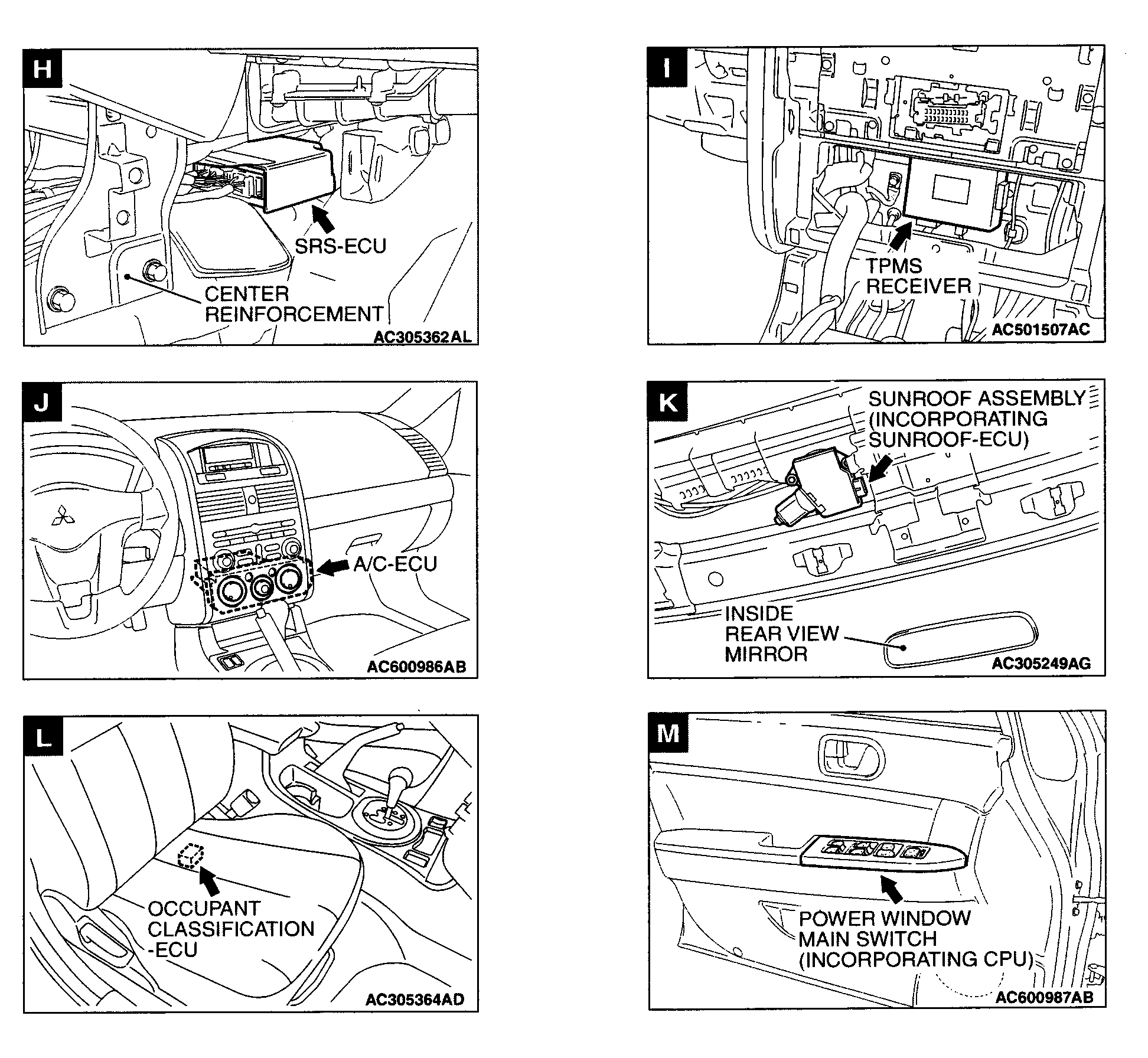

| Occupant Classification-ECU | Under front passenger's seat. See Figure. |
| Powertrain Control Module | Left front of engine compartment. See Figure. |
| SRS-ECU | Behind lower center of dash. See Figure. |
| Sunroof-ECU | At front of sunroof opening. See Figure. |
