Column Switch Continuity Check (At Switch Body)
- Remove the lighting switch and the wiper/washer switch.

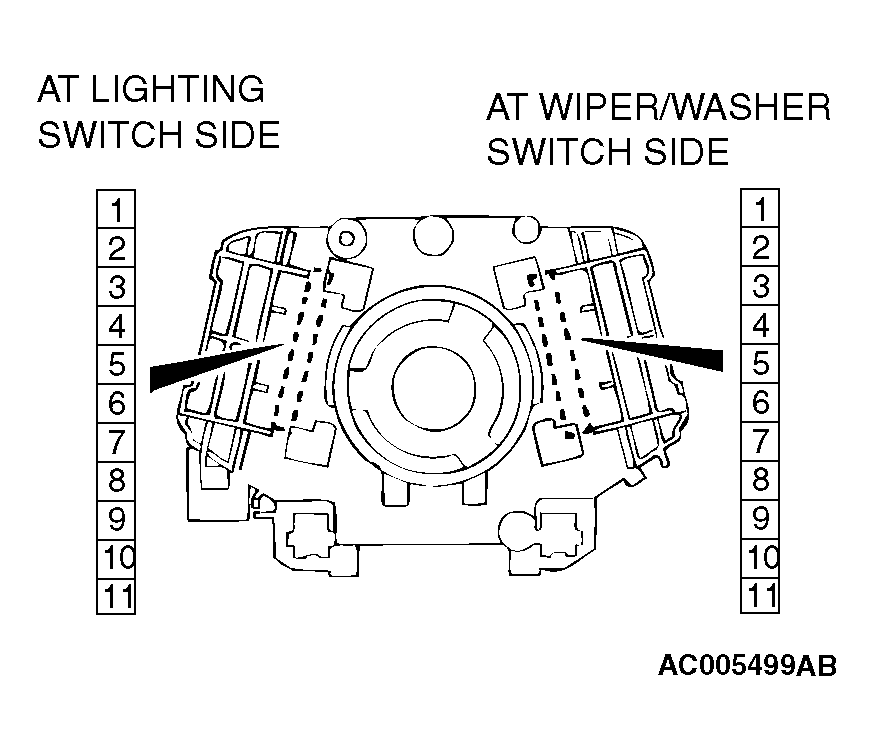

- Among individual connectors of the column switch body remaining in the steering column, check for continuity between same number terminals (No.3-11).TERMINAL NO SPECIFIED CONDITION CHART
COLUMN SWITCH BODY TERMINAL NO. SPECIFIED CONDITION Connector at the lighting switch side Connector at the wiper/ washer switch side 3 - 3
4 - 4
5 - 5
6 - 6
7 - 7
8 - 8
9 - 9
10 - 10
11 - 11Less than 2 ohms
