Accelerator Cable And Pedal Removal And Installation
›
Removal And Installation
›
Notes
Removal And Installation: Notes

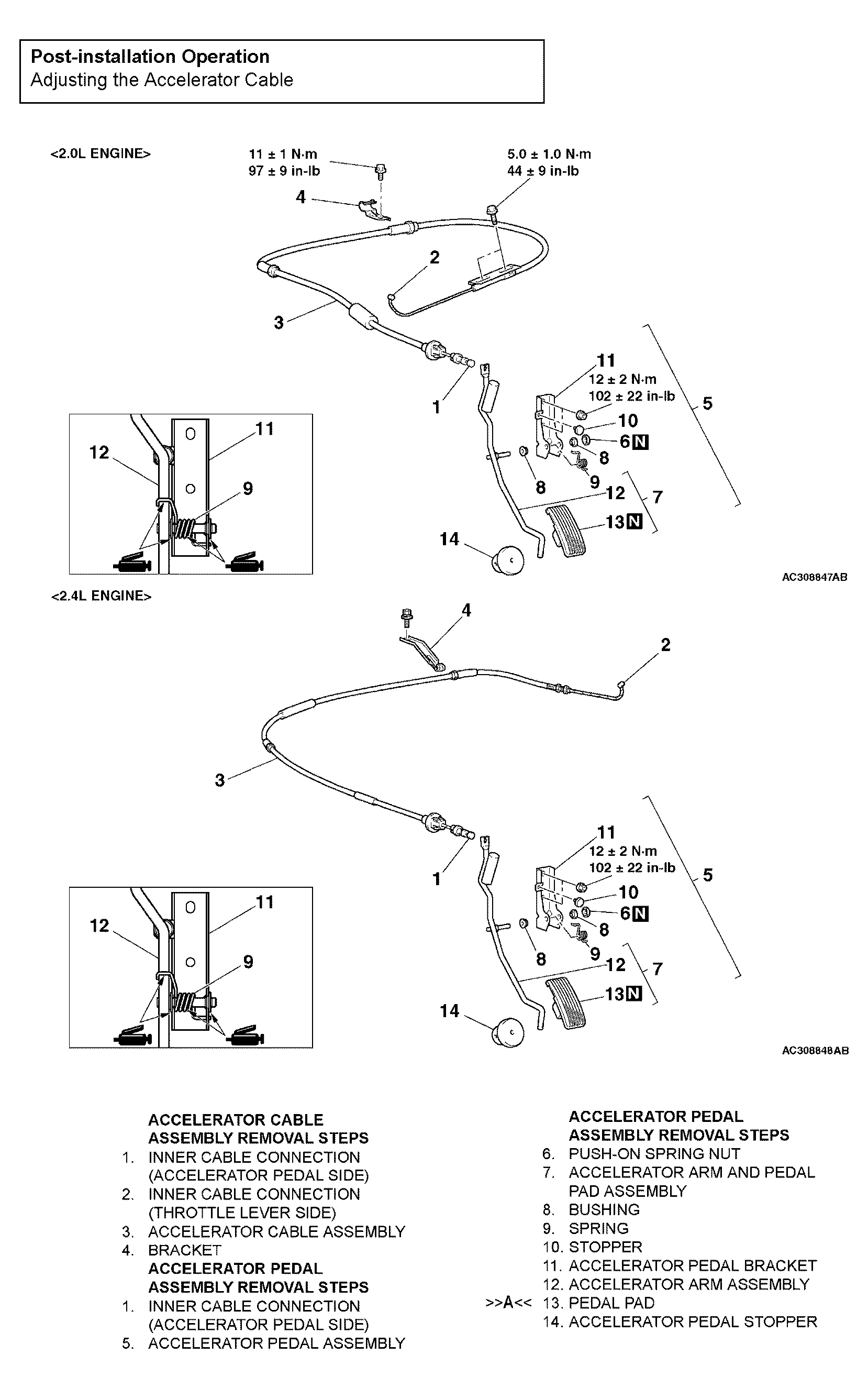

Fig 1: Removing/Installing Accelerator Cable And Pedal With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
