FixVault
Home
›
Mitsubishi
›
2007
›
Lancer Automatic
›
Repair and Diagnosis
›
Steering
›
Power Steering - Lancer
›
Steering Column Shaft Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

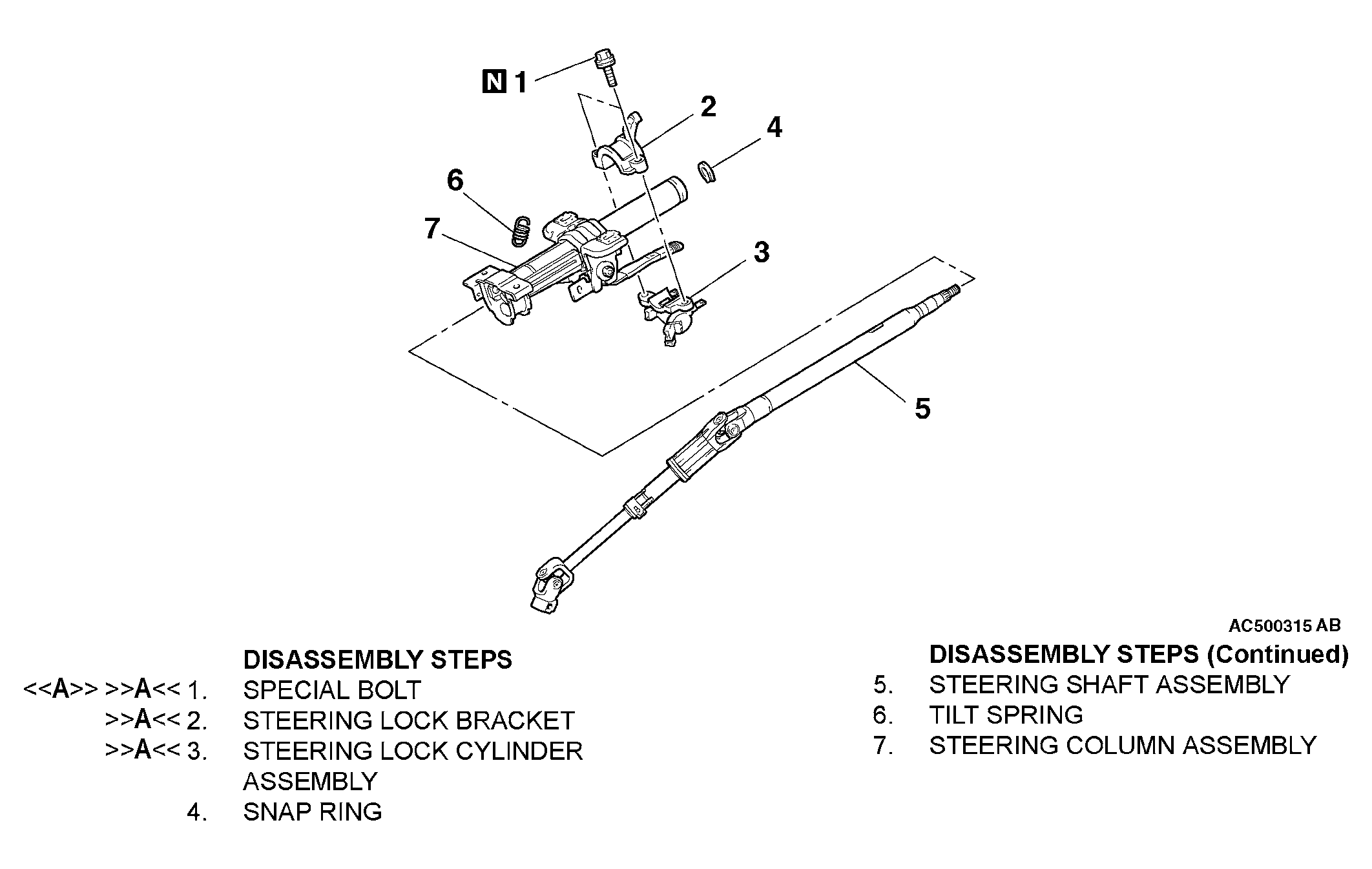

Fig 1: Disassembly And Assembly Steering Column Shaft Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
