Disassembly And Assembly: Notes

NUMBER OF CLUTCH DISCS AND PLATES

NUMBER OF CLUTCH DISCS AND PLATES CHART

	CLUTCH DISC	CLUTCH PLATE	CLUTCH REACTION PLATE
Over drive clutch	4	4	1
Reverse clutch	2	2	1

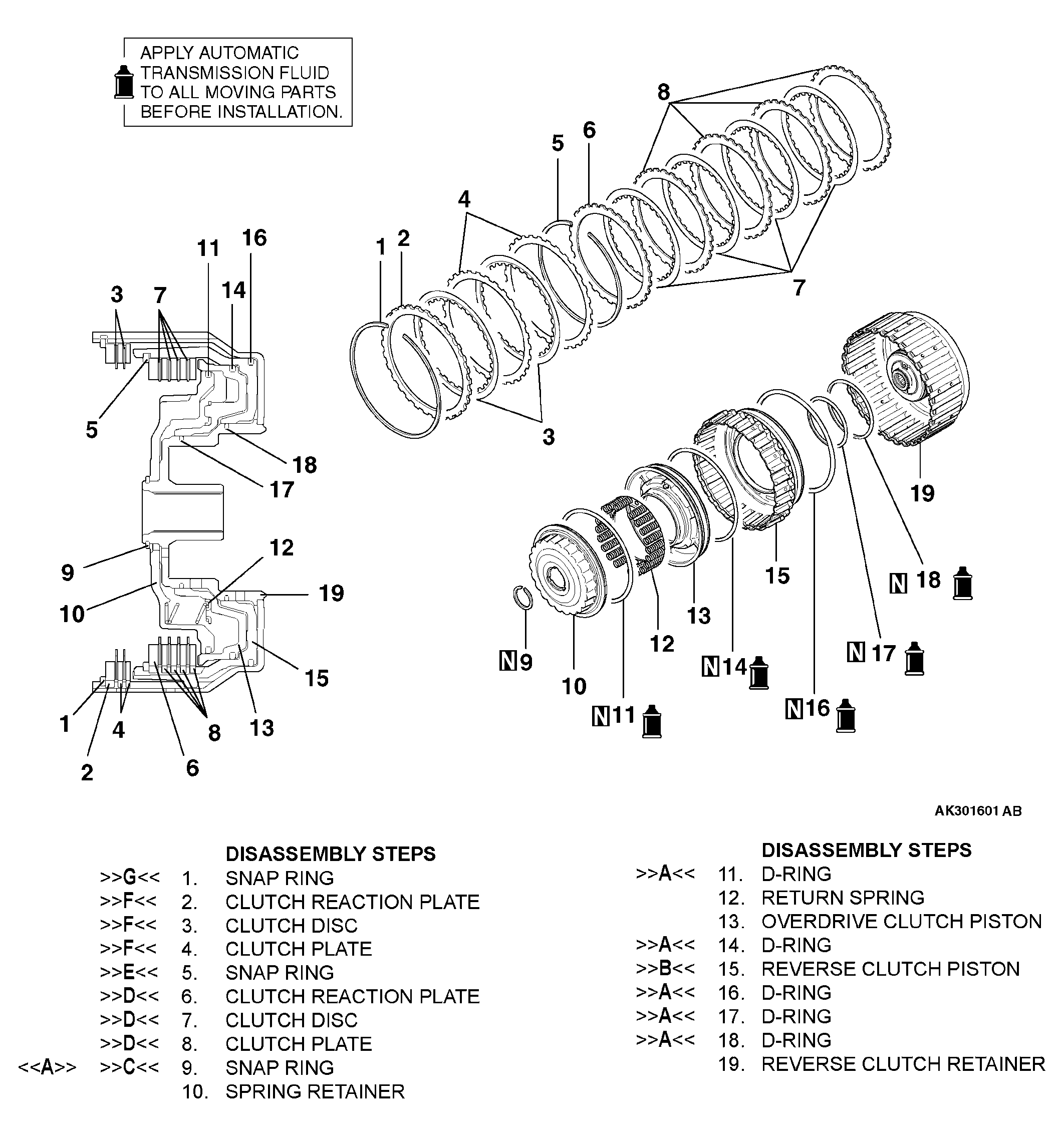

Fig 1: Disassembling/Assembling Of Reverse And Overdrive Clutch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
