Disassembly And Assembly

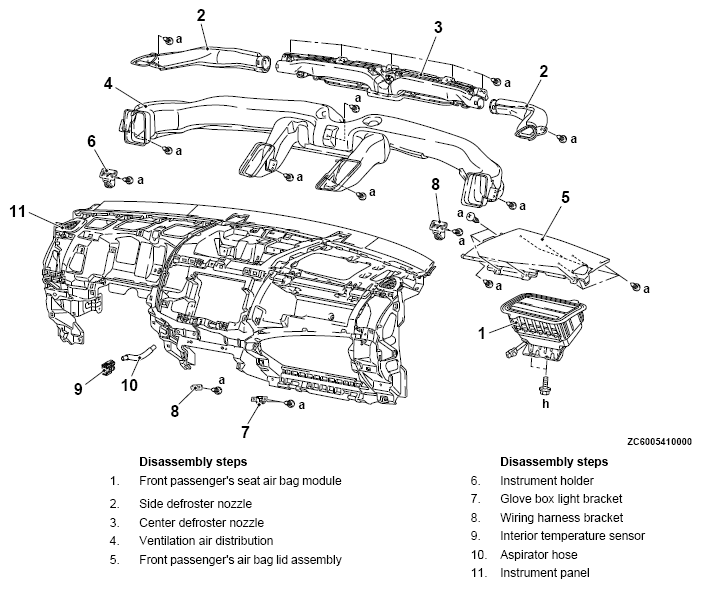

Fig 1: Disassembling And Assembling Steps
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
