Rear Window Defogger Relay Check

RESISTANCE SPECIFICATION

Battery voltage	Terminal number	Normal condition
At no energisation	3 - 4	No continuity
With current supply [terminal 1 (+), terminal 2 (-)]		Continuity exists (2 Ω or less)

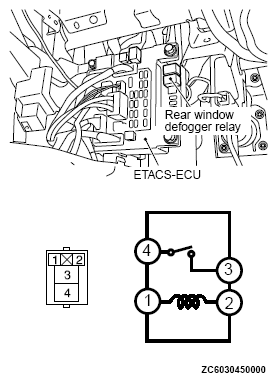

Fig 1: Checking Rear Window Defogger Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
