Code No. 31 Leveling unit abnormality: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

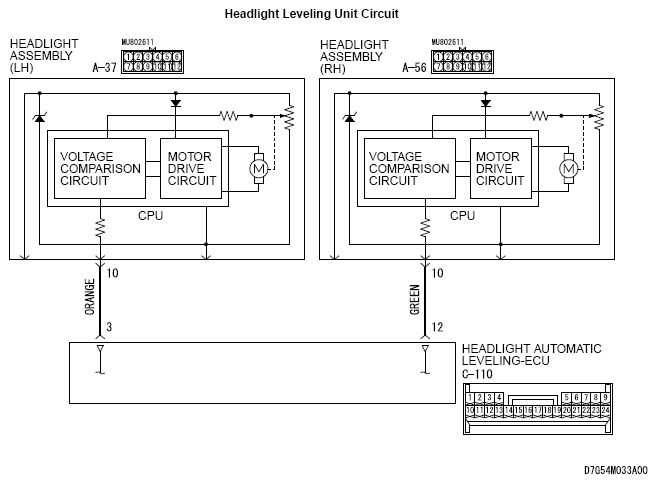

Fig 1: Headlight Leveling Unit Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Connector C-110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Connector A-56

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying Connector A-37

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
