Front Height Sensor Check

  1. Disconnect the sensor connector and connect the special tool test harness (MB991658) as shown.
  2. Turn the ignition switch to the ON position.
  3. Measure the voltage of sensor connector terminal No. 2.
    Fig 1: Measuring Voltage Of Sensor Connector Terminal No. 2
    G04873718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Check that voltages show the values described in the graph according to the sensor operation angle.

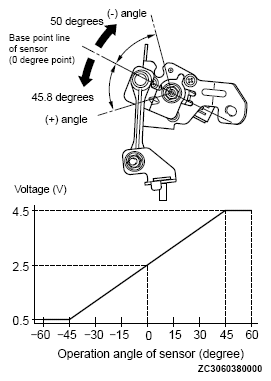

    Fig 2: Front Height Sensor Voltage Graph
    G04873719Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
