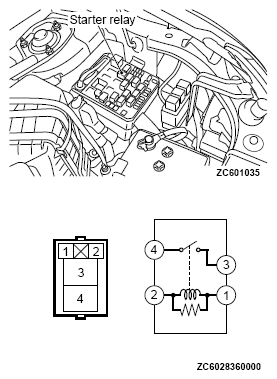

Starter Relay Check
STARTER RELAY CHECKING REFERENCE CHART
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
4 - 3 |
Open circuit |
| Connect terminal No.2 to battery (+) terminal. Connect terminal No.1 to battery (-) terminal. |
4 - 3 |
Continuity (less than 2 ohms) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
