Removal And Installation: Notes

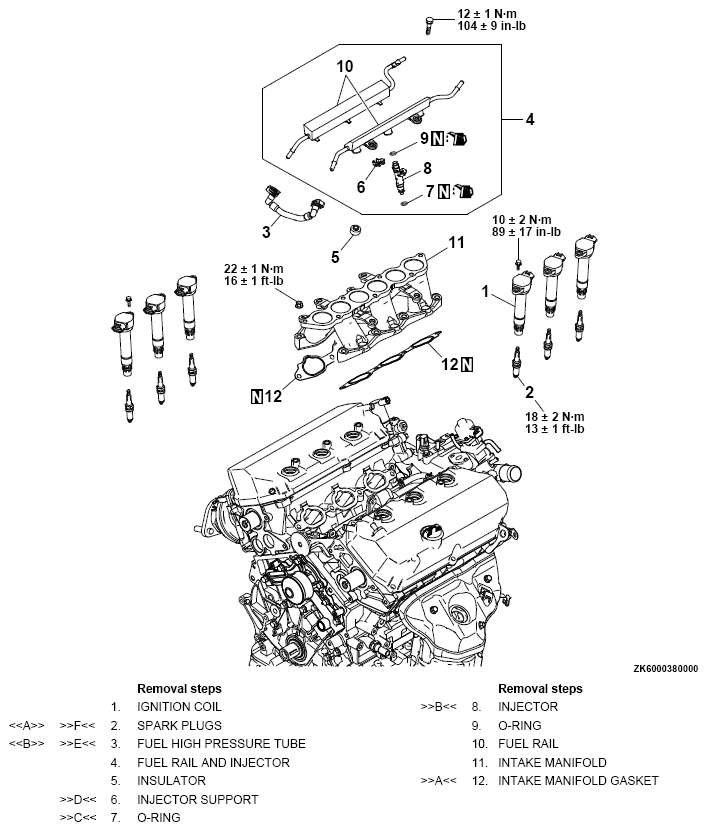

Fig 1: Intake Manifold Remove / Install Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991398: Spark Plug Wrench
• MB992106: O-ring Installer
