Crankshaft Position Sensor
›
Removal And Installation
Removal And Installation

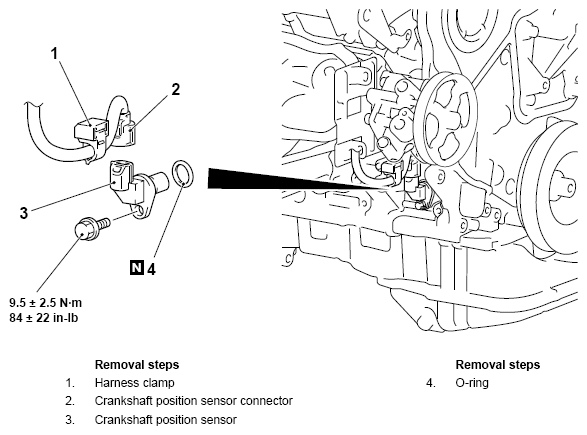

Fig 1: Identifying Crankshaft Position Sensor Removal / Installation Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
