FixVault
Home
›
Mitsubishi
›
2007
›
Outlander ES
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Ignition Coil
›
Removal And Installation
Removal And Installation

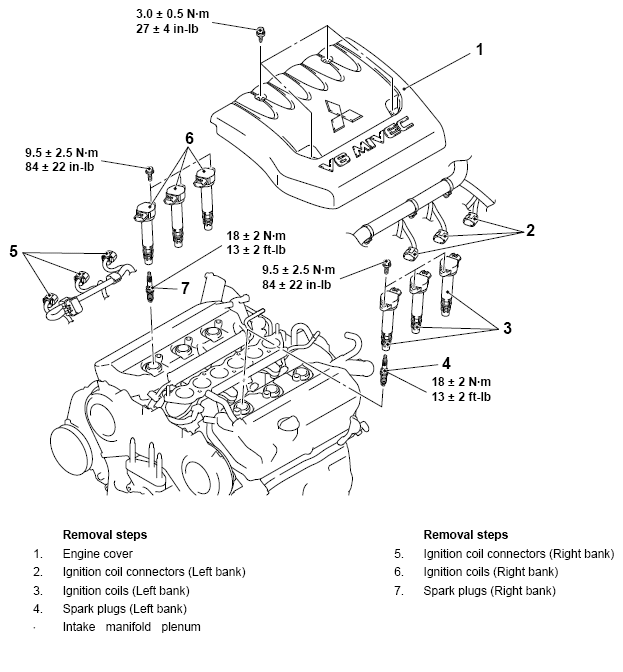

Fig 1: Identifying Ignition Coil Removal / Installation Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
