PASSCODE Erasing Procedure For Hands-Free Module - SMR (TSB-07-54-005)

Publication date: 2007-12-01
Reference number: TSB-07-54-005

PASSCODE ERASING PROCEDURE FOR HANDS-FREE MODULE - SMR

TECHNICAL SERVICE BULLETIN

Reference Number(s): TSB-07-54-005, Date of Issue: December, 2007

MITSUBISHI:

See Below

PURPOSE

Due to a design change, a passcode erasing procedure for the hands-free module has been established in the applicable Service Manuals, This allows the passcode to be erased in the event the customer cannot remember the correct passcode. This TSB advises the new procedure.

APPLICABLE VEHICLES

2007 - 2008 Outlander

2008 Lancer

AFFECTED SERVICE MANUALS

2007 Outlander - Page 54Ae-35

2008 Outlander - Page 54-623

2008 Lancer - Page 54-435

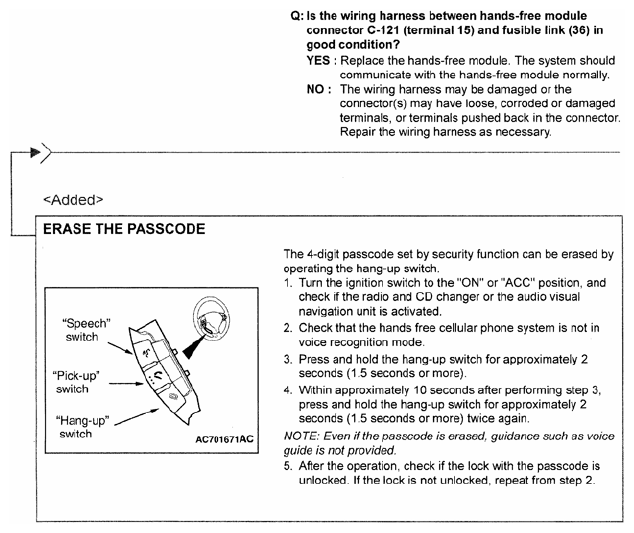

Fig 1: Erasing Passcode (Addition)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

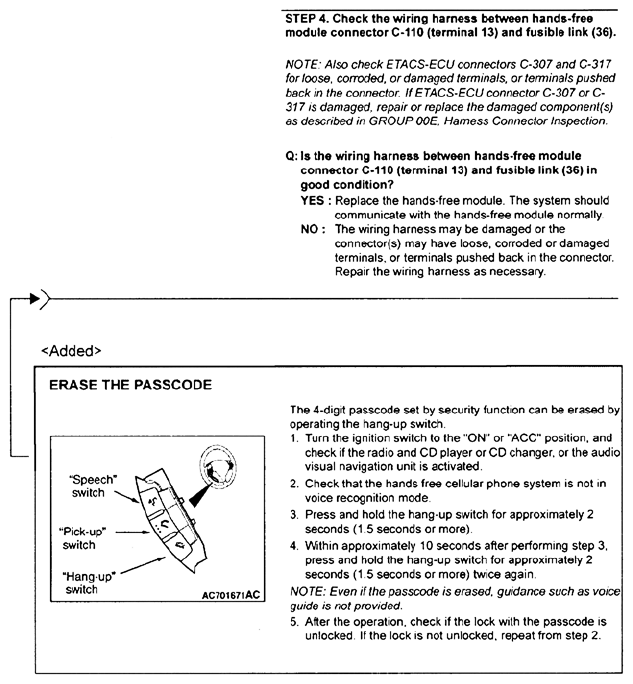

Fig 2: Erasing Passcode (Addition)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
