Disassembly And Assembly: Notes

CAUTION: Do not use ATF-SP II M and ATF-SP III for the power steering fluid.

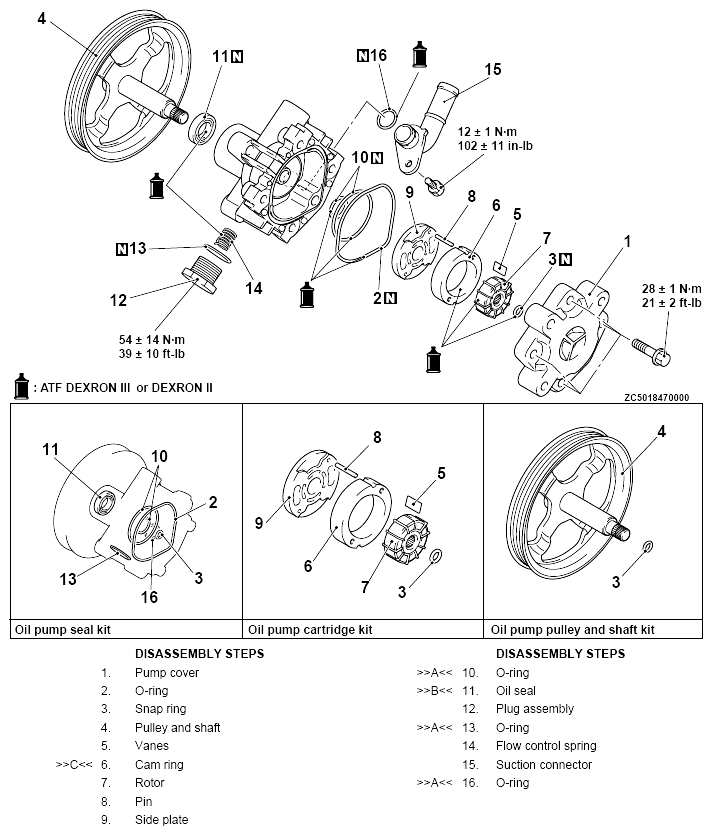

Fig 1: Exploded View Of Power Steering Pump Assembly With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
