Removal And Installation: Notes

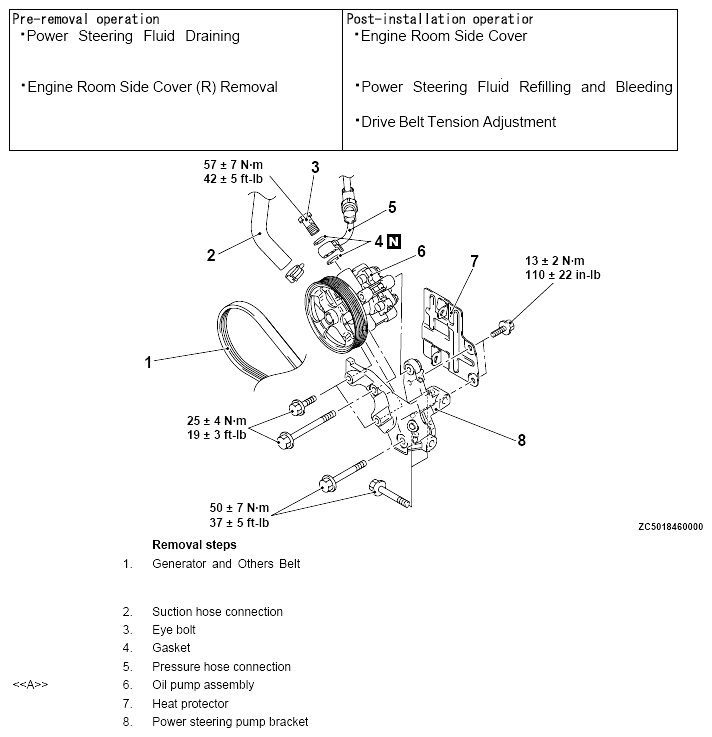

Fig 1: Exploded View Of Power Steering Oil Pump Assembly With Torque Specification
G04872179Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
