Removal And Installation: Notes

Vehicles for California emission regulation

CAUTION:

Never remove the radiator sensor from the radiator because it cannot be disassembled. When replacing the radiator sensor, replace it with the radiator as a set. When the radiator sensor is removed from the radiator, the engine control module (ECM) detects an error and sets a diagnostic trouble code.
Never replace the DOR radiator with the NONDOR radiator.
Never clean the DOR radiator with a high concentration of alkaline cleaner.

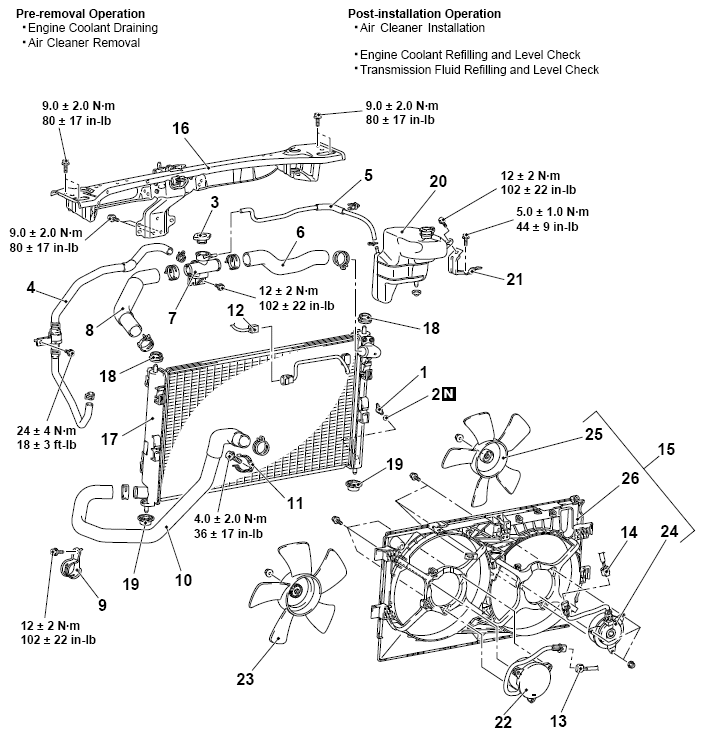

Fig 1: Radiator Remove / Install Replacement Components (1 Of 2) With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

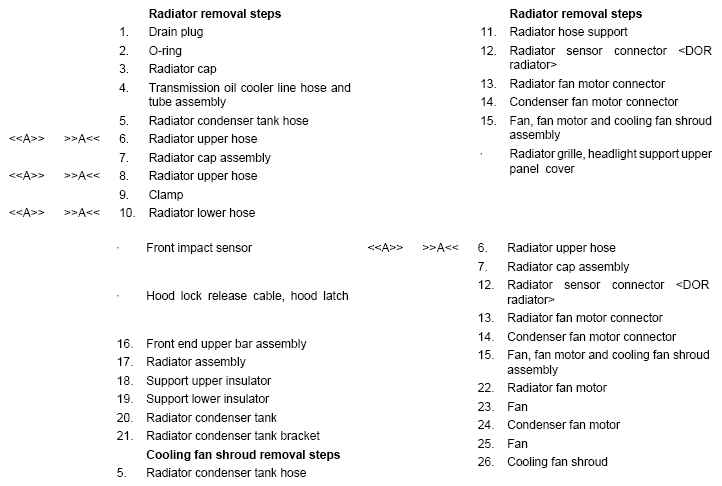

Fig 2: Identifying Radiator Remove / Install Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
