Removal And Installation: Notes

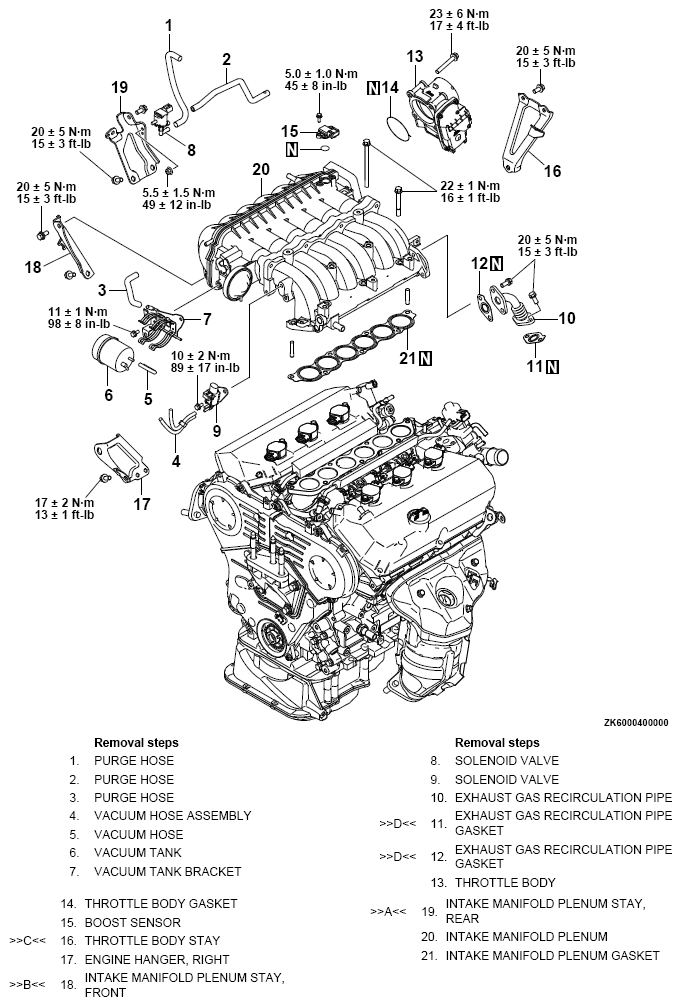

Fig 1: Intake Manifold Plenum And Throttle Body Assembly Remove / Install Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
