Sensor - Output Speed: Installation

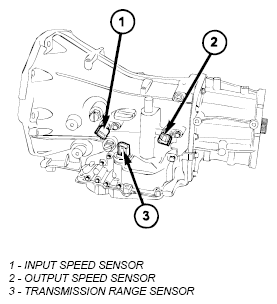

Fig 1: Identifying Input And Output Speed Sensors And Transmission Range Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

1. Install the output speed sensor (2) into the transmission case.
   NOTE: Before installing the speed sensor bolt, it will be necessary to replenish the sealing patch on the bolt using Loctite 242 Lock & Seal Adhesive or equivalent.
2. Install the bolt to hold the output speed sensor into the transmission case. Tighten the bolt to 9 N.m (80 in.lbs.).
3. Install the wiring connector onto the output speed sensor
4. Verify the transmission fluid level. Add fluid as necessary.
5. Lower vehicle.
