*Driver Door Lock/Unlock Switch Input Stuck Lock: Notes

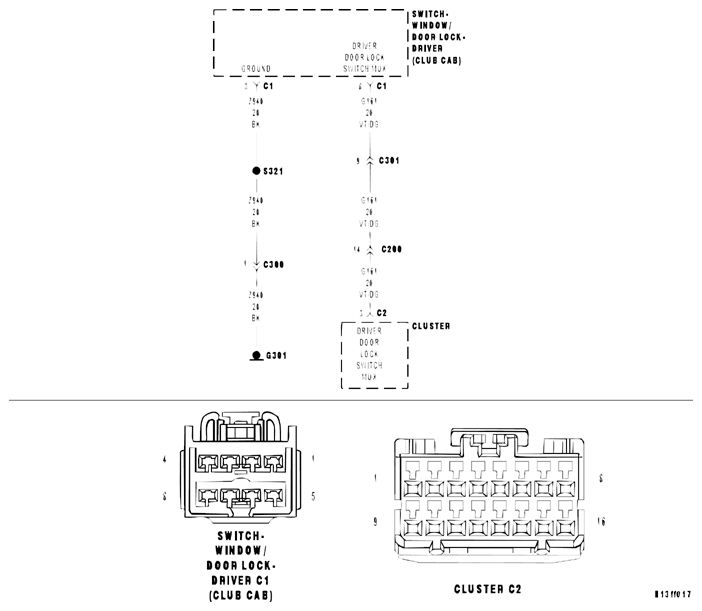

Fig 1: Driver Door Lock/Unlock Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.
