*No Response From Amp (Amplifier): Notes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

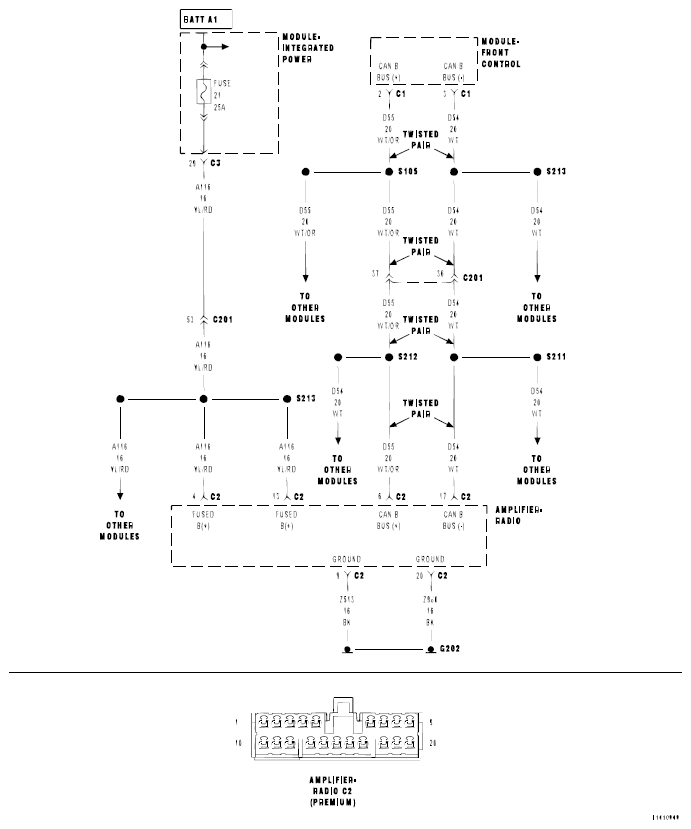

For a complete wiring diagram
, refer to appropriate SYSTEM WIRING DIAGRAMS article.
| Possible Causes |
| (A116) FUSED B (+) CIRCUIT OPEN OR SHORTED |
| (Z513) OR (Z980) GROUND CIRCUIT OPEN |
| (D55) AND (D54) CAN B BUS CIRCUITS OPEN |
| AMPLIFIER |
