*No Response From EOM (Electronic Overhead Module): Notes

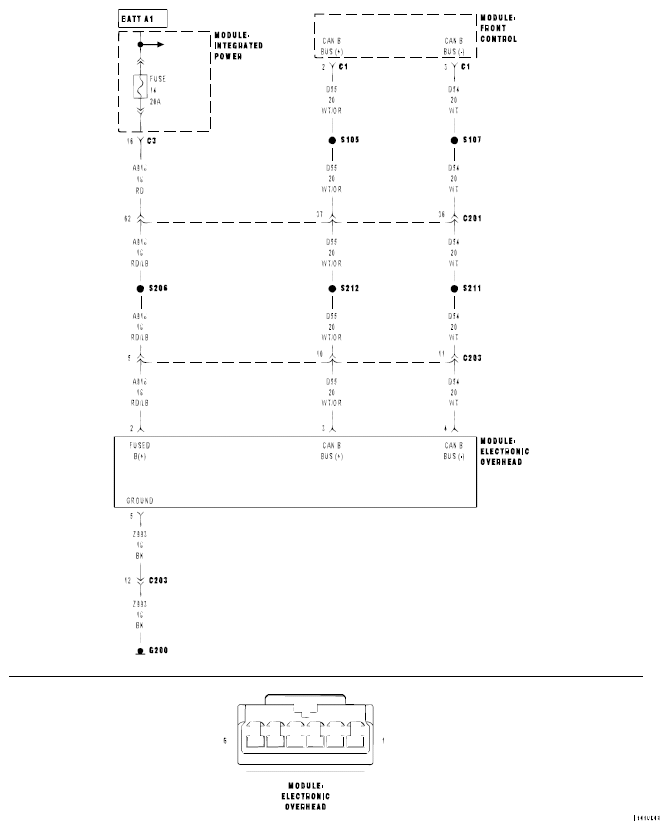

Fig 1: Electronic Overhead Module Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram  , refer to appropriate SYSTEM WIRING DIAGRAMS article.
