DTC P0137-O2 Sensor 1/2 Circuit Low: Notes

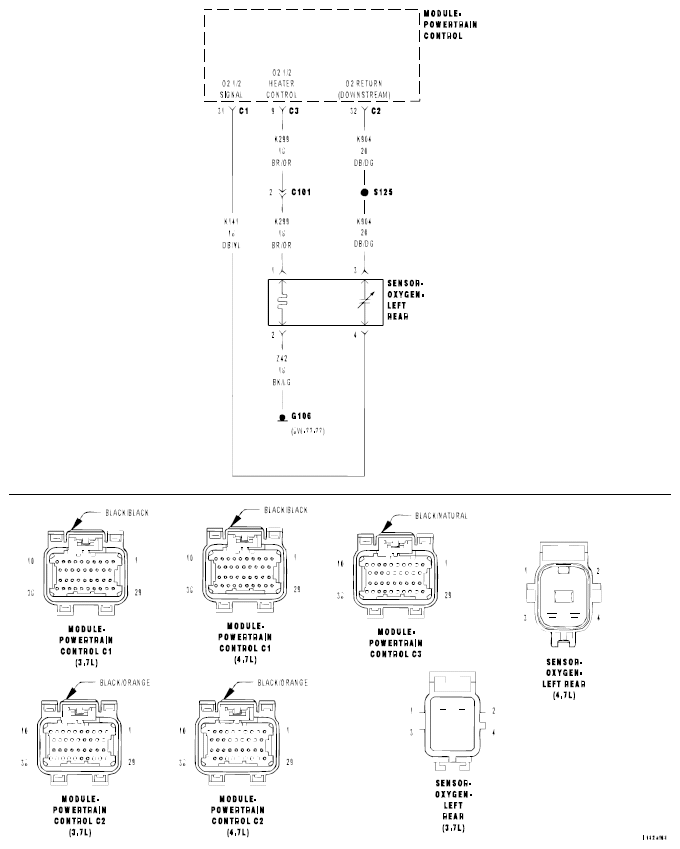

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.
- When Monitored:
Engine running for less than 30 seconds and the O2 Sensor Heater Temperature is less than 251°C (484°F) with battery voltage greater 10.99 volts.
- Set Condition:
The oxygen sensor signal voltage is below 2.5196 volts for 3 seconds after starting engine. One Trip Fault. Three good trips to turn off the MIL.
| Possible Causes |
|---|
| (K904) O2 RETURN DOWNSTREAM CIRCUIT SHORTED TO GROUND |
| (K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO GROUND |
| (K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 RETURN DOWNSTREAM CIRCUIT |
| (K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (Z42) O2 1/2 HEATER GROUND CIRCUIT |
| O2 SENSOR |
| PCM |
Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
