Notes
Disassembly And Assembly: Notes

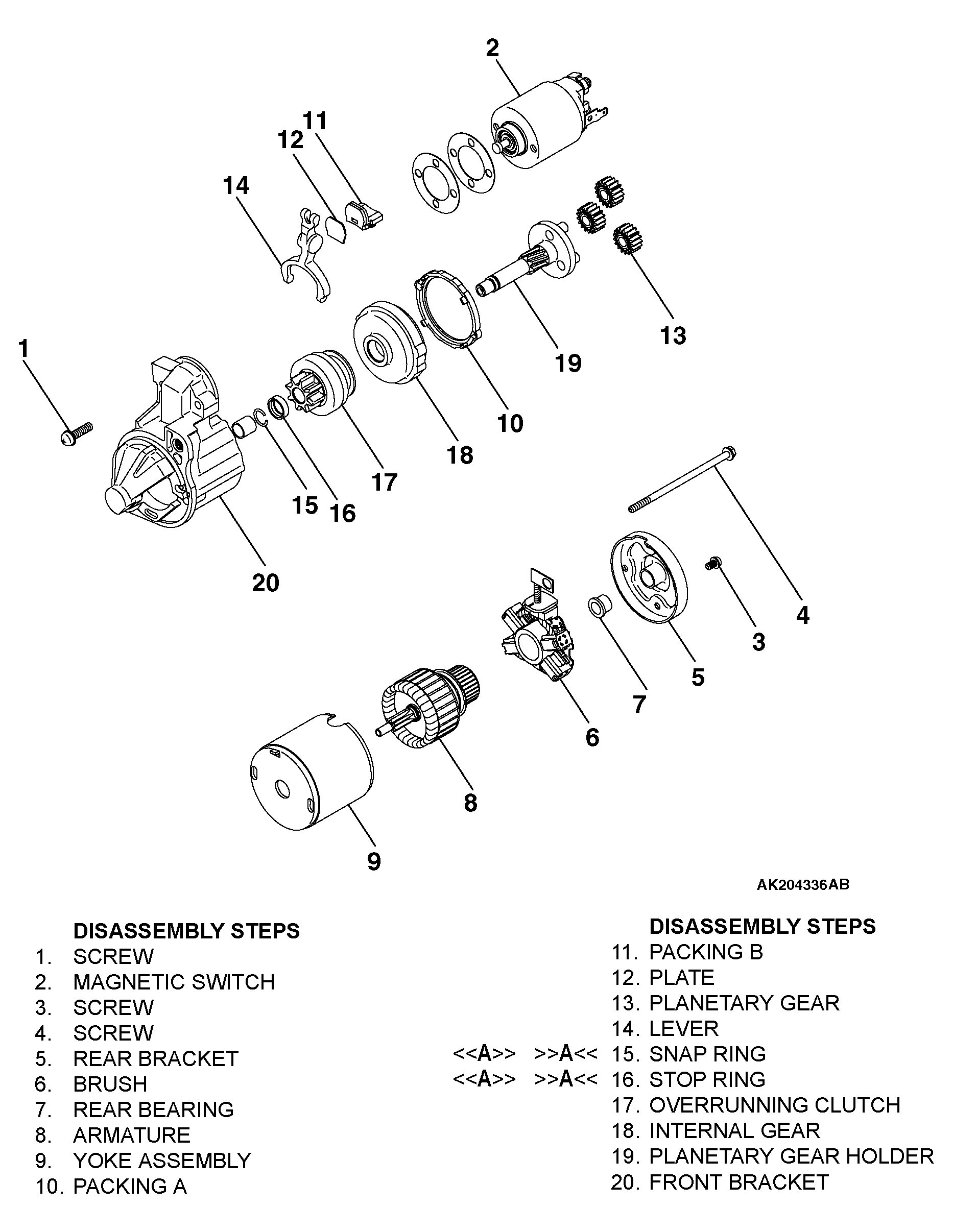

Fig 1: Exploded View Of Starter Motor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
