Removal And Installation: Notes

CAUTION:

Refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING before removing the passenger's (front) air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
When the glove box lid lock cylinder is replaced by key set of illustration < A > (see Fig 1) , register the encrypted code with the bar code on the ignition key in the key set. Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE .

Fig 1: Replacing Glove Box Lid Lock Cylinder (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When replacing by the glove box lid lock cylinder of illustration < B > (see Fig 2), do not register the encrypted code with the bar code on the ignition key supplied simultaneously.

Fig 2: Replacing Glove Box Lid Lock Cylinder (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

BOLT SPECIFICATION

NAME	SYMBOL	SIZE (D X L) mm	COLOR	SHAPE
TAPPING SCREW	a	5 x 12	BLACK	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	b	5 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	c	5 x 20	BLACK	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	d	6 x 16	GREEN	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
	e	8 x 15	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WASHER ASSEMBLY BOLT	f	6 x 25	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
WASHER ASSEMBLY BOLT	g	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

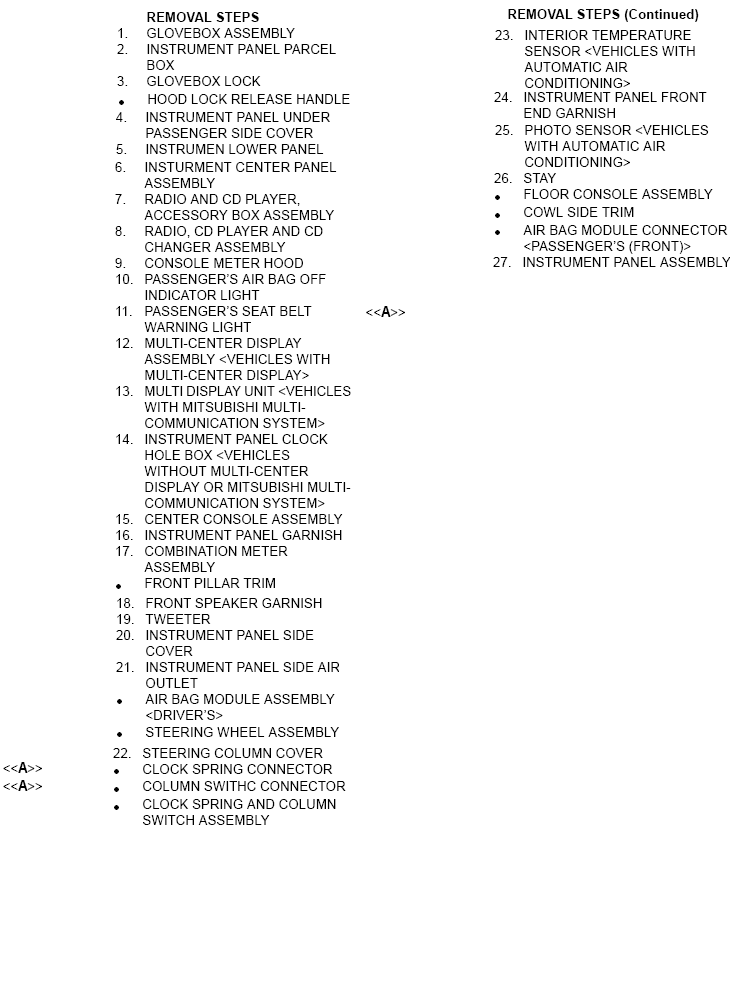

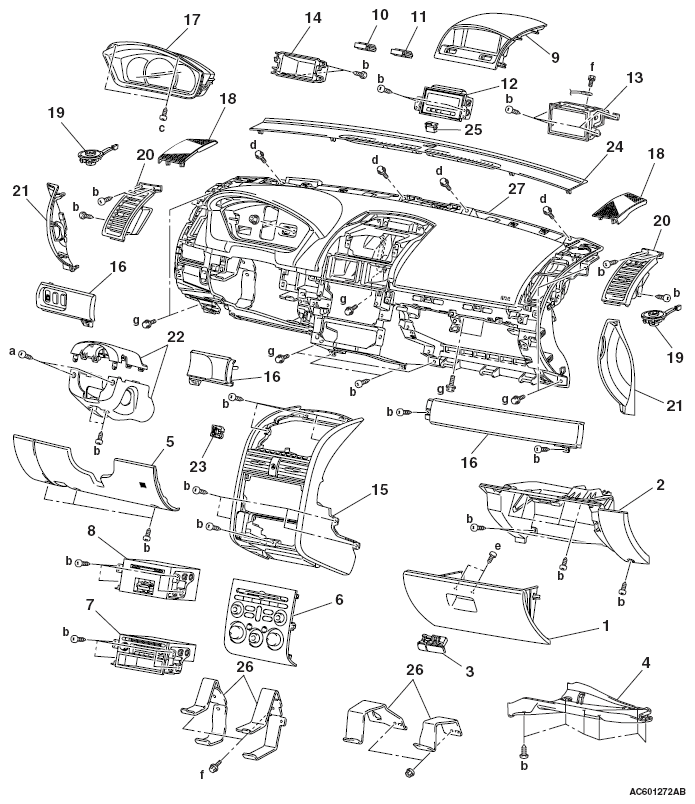

Fig 3: Removing/Installing Instrument Panel Assembly Components (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Removing/Installing Instrument Panel Assembly Components (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
