Removal And Installation: Notes

CAUTION:

• To remove the driver's airbag module, refer to SERVICE PRECAUTIONS and AIR BAG MODULE(S) AND CLOCK SPRING .
• When WCM has been replaced, all key ID codes should be registered, referring to the ID code registration necessity judgment table ID CODES REGISTRATION JUDGMENT TABLE .

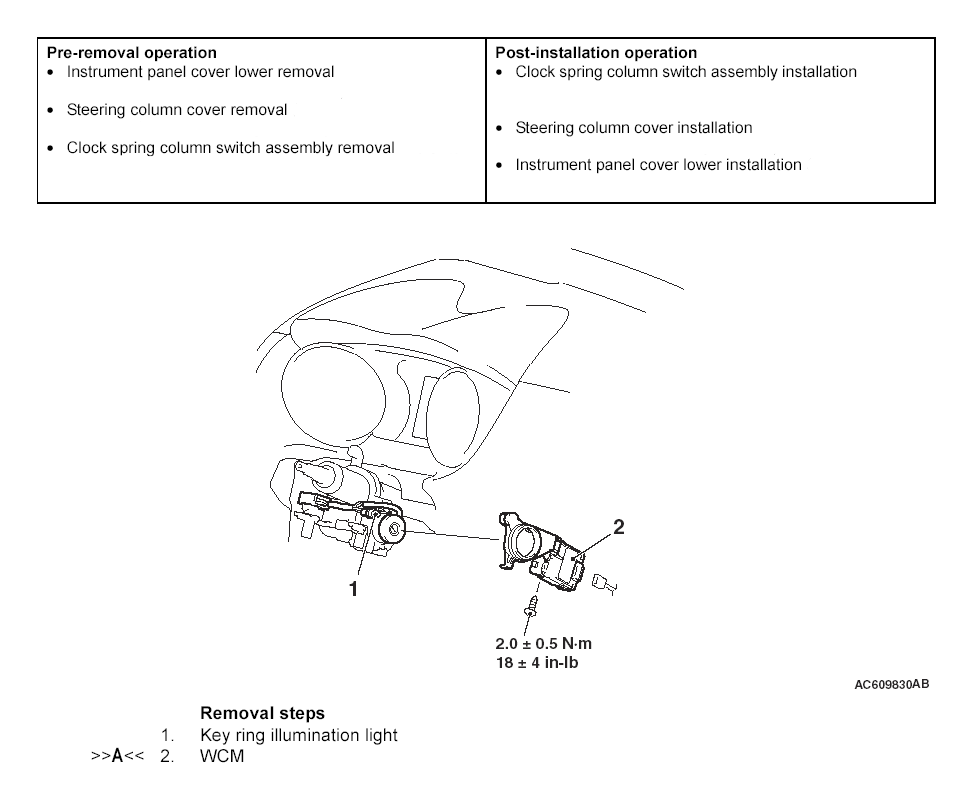

Fig 1: WCM Removal And Installation Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
